Managed Ethernet Switch Redundancy Protocol (UI 2.0) Turbo Ring
2-2
The Turbo Ring Concept
Moxa developed the proprietary Turbo Ring protocol to optimize redundancy and achieve a faster recovery time
on the network.
The Turbo Ring and Turbo Ring V2 protocols identify one switch as the master of the network, and then
automatically block packets from traveling through any of the network’s redundant loops. In the event that one
branch of the ring gets disconnected from the rest of the network, the protocol automatically readjusts the ring
so that the part of the network that was disconnected can reestablish contact with the rest of the network.
Setting up “Turbo Ring” or “Turbo Ring V2”
1.
Select any two ports as redundant ports.
2.
Connect the redundant ports to form the Turbo Ring.
The user does not need to configure any of the switches as the master to use Turbo Ring or Turbo Ring V2. If
none of the switches in the ring is configured as the master, then the protocol will automatically assign master
status to one of the switches. In fact, the master is only used to identify which segment in the redundant ring
acts as the backup path. In the following subsections, we explain how the redundant path is selected for rings
configured for Turbo Ring, and Turbo Ring V2.
Determining the Redundant Path of a “Turbo Ring” Ring
In this case, the redundant segment (i.e., the segment that will be blocked during normal operation) is
determined by the number of switches in the ring, and where the ring master is located.

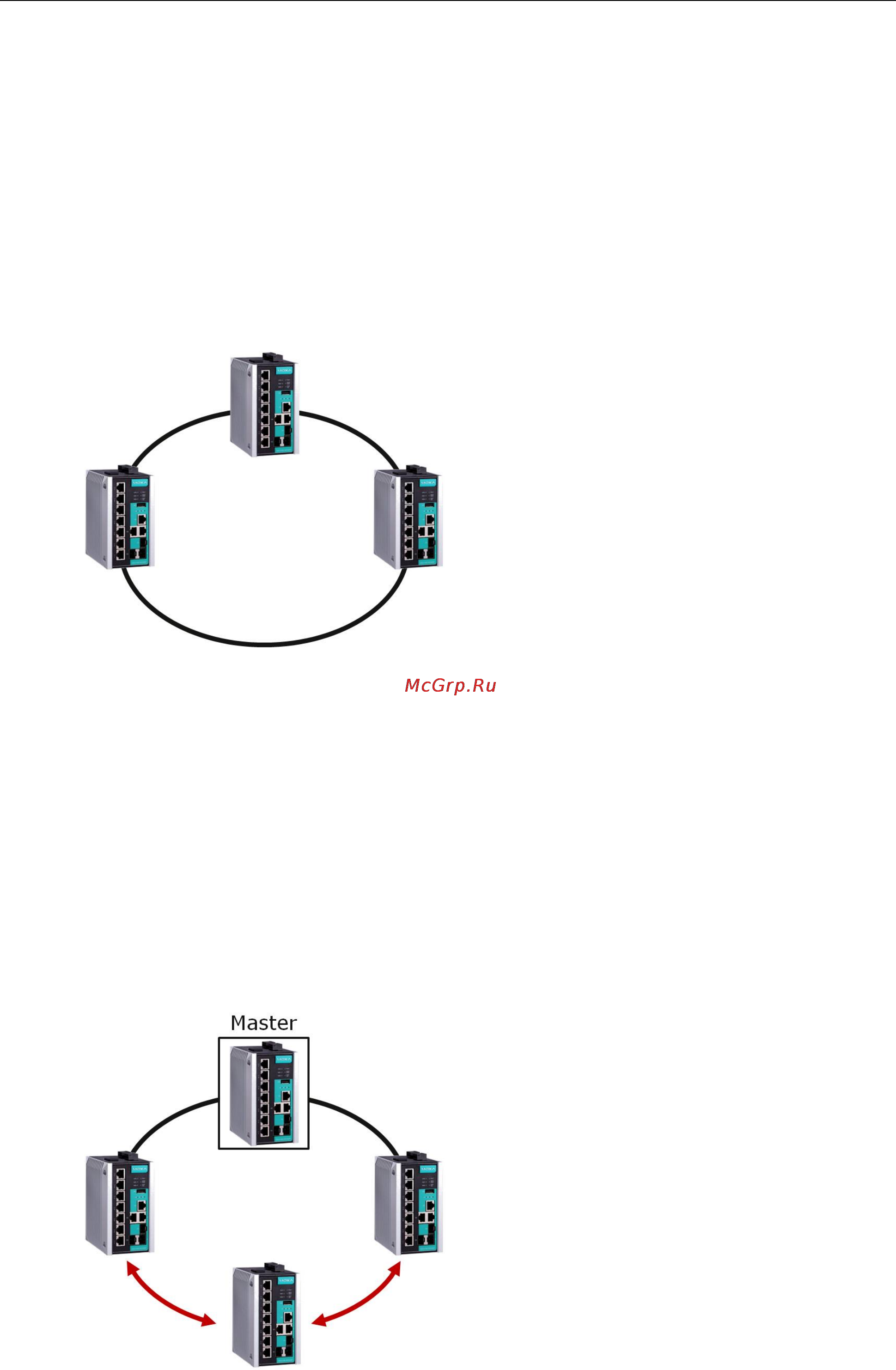

When the Number of Switches in the Turbo Ring is Even
If there are 2N
switches (an even number) in the “Turbo
Ring”
ring, then the backup segment is one of the two
segments connected to the (N+1)
st switch (i.e., the
switch
directly opposite the
master).
