- 10 -

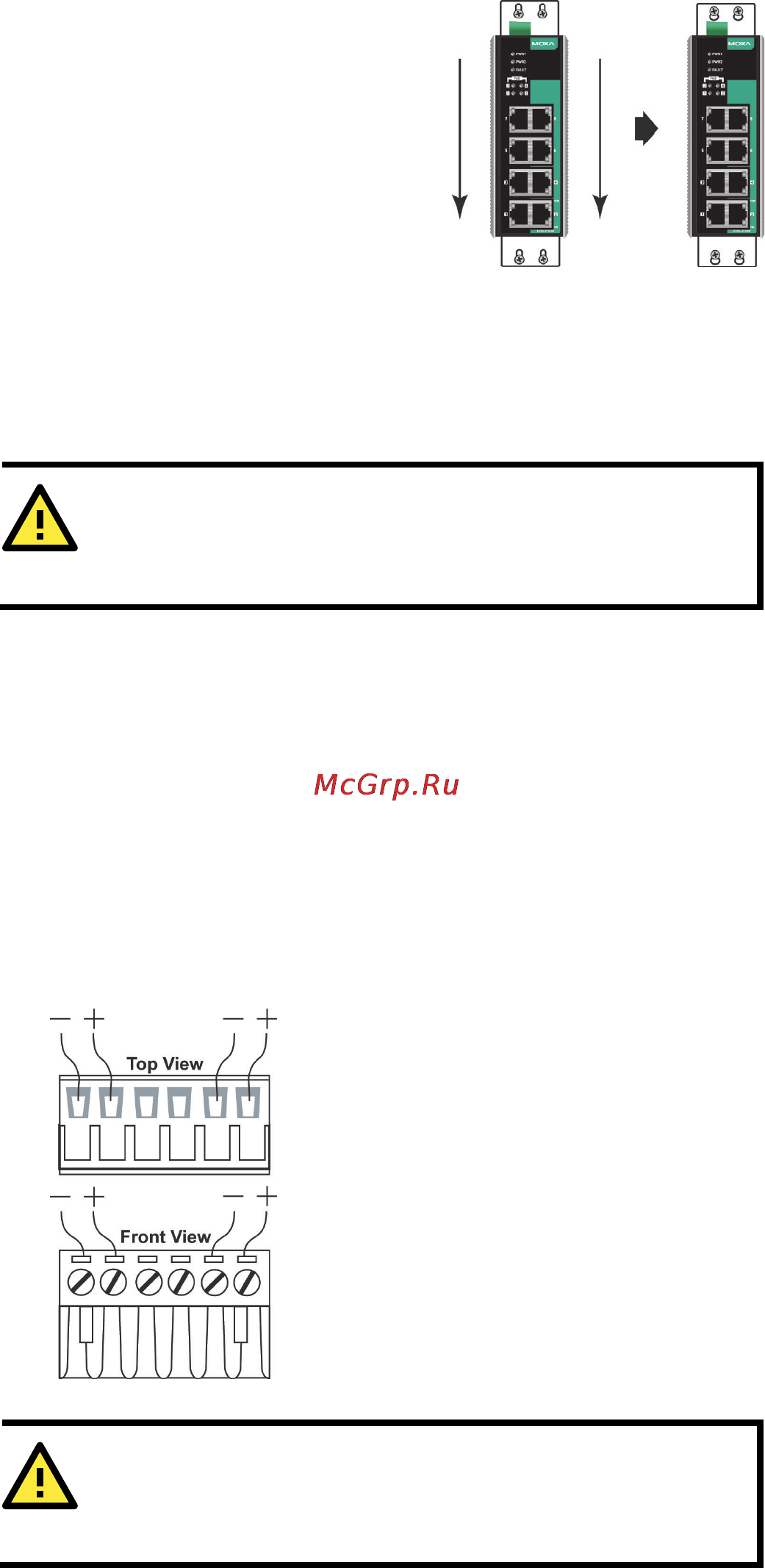

STEP 3:
Once the screws are fixed in the wall,
insert the four screw heads through the
large parts of the
keyhole-shaped
apertures, and then slide the EDS
-P308
downwards, as indicated. Tighten the four
screws for added stability.
Grounding the EDS-P308 Series
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
ATTENTION
This product is intended to be mounted to a well
-grounded
mounting surface, such as a metal panel.
EDS-P308 Series’s Redundant Power Inputs
Both power inputs can be connected simultaneously to live DC power
sources. If one power source fails, the other live source acts as a backup,
and automatically supplies all of EDS-P308 Series’s power needs.
Wiring the Redundant Power Inputs
The top two contacts and the bottom two contacts of the 6-contact
terminal block connector on EDS’s top panel are used for EDS’s two DC
inputs. Top and front views of one of the terminal block connectors are
shown here.
STEP 1:
Insert the negative/positive DC wires into
the V
-/V+ terminals.
STEP 2:
To keep the DC wires from pulling loose,
use a small flat
-blade screwdriver to
tighten the wire
-
clamp screws on the front
of
the terminal block connector.
STEP 3:
Insert the
plastic terminal block connector
prongs into the terminal block receptor,
which is located on EDS’s top panel.
ATTENTION
Before connecting EDS to the DC power inputs, make sure the DC
power source voltage is stable.
