- 16 -
Wiring the SPL-24’s Power Outputs
The two left-most contacts of the 3-contact terminal block connector on

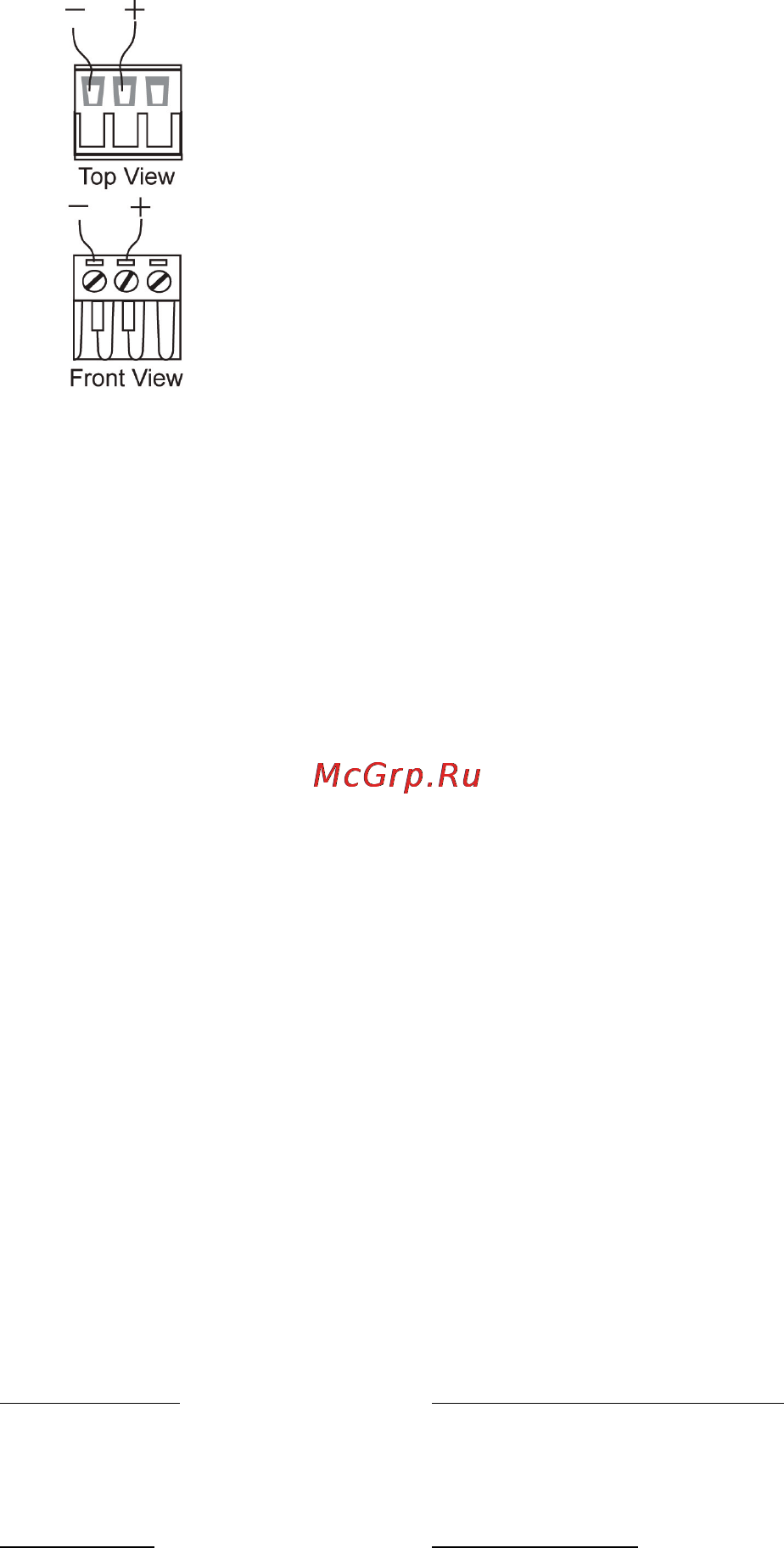

the SPL-24’s top panel are used for 24 VDC output. Top and front views of
one of the terminal block connectors are shown here.
STEP 1:
Insert the negative/positive DC
wires into the V-
/V+
terminals.
STEP 2:
To keep the DC wires from pulling loose, use a small
flat
-blade screwdriver to tighten the wire-clamp
screws on the front of the terminal block connector.
STEP 3:
Insert the plastic terminal block connector prongs
into the terminal block receptor, which is located on
SPL
-24's top panel.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll
-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa China (Shanghai office):
Toll
-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Europe
:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa Asia
-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
