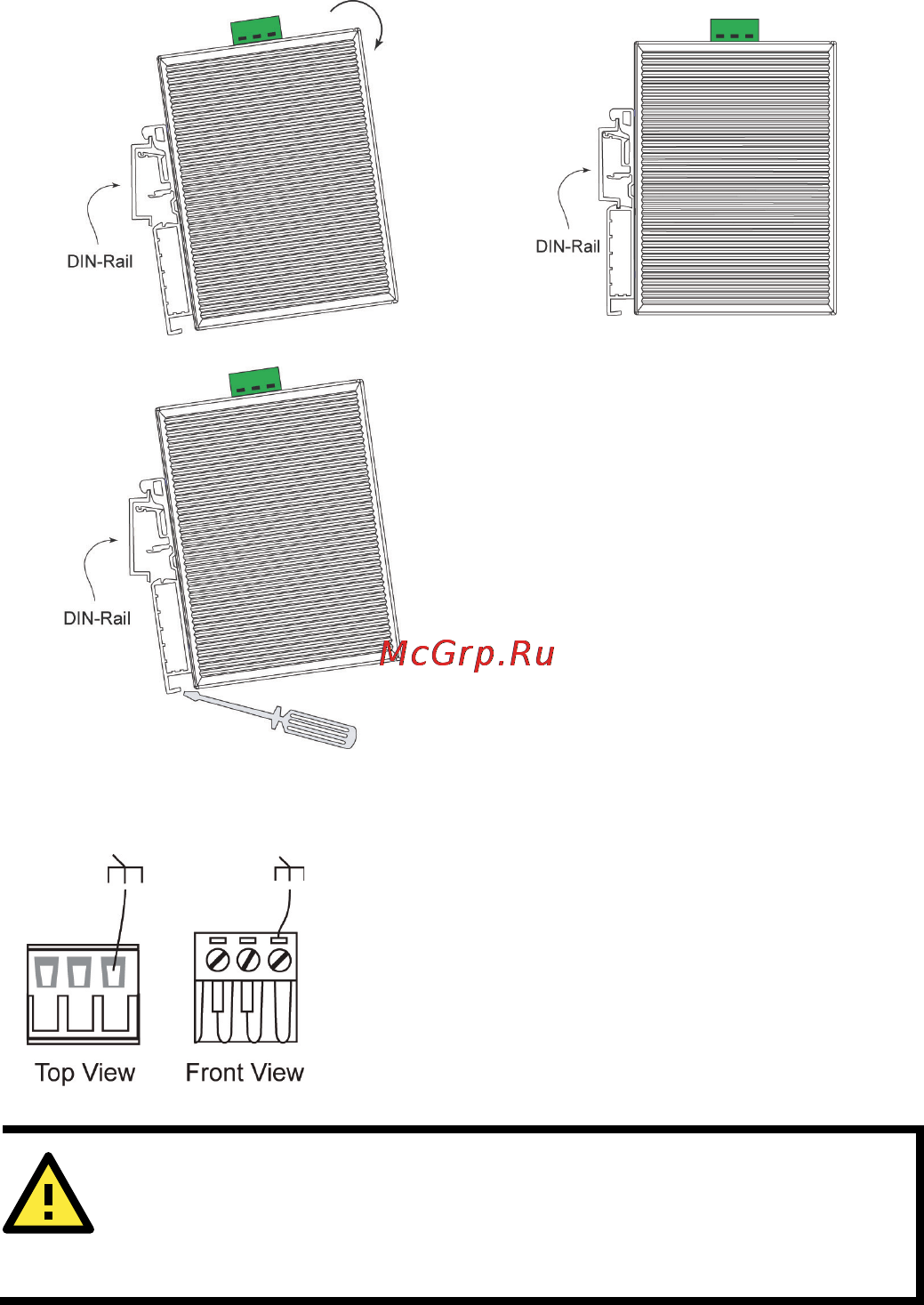

DIN-Rail Mounting for SPL-24

The plastic DIN-Rail attachment plate should already be fixed to the back

panel of SPL-24 when you take it out of the box. If you need to reattach

the DIN-Rail attachment plate, make sure the stiff metal spring is situated

towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN

-Rail into

the slot.

STEP 2:

The DIN

-Rail attachment unit will

snap into place as shown below.

To remove the SPL

-24 from the

DIN

-Rail, insert a flat-blade screw

driver horizontally into the DIN

Rail

kit under the

SPL-

24, and then pull it

upwards and release SPL

-24

towards you away from the

DIN

-Rail.

Grounding the SPL-24

Grounding and wire routing help limit the

effects of noise due to electromagnetic

interference (EMI). Run the right most contact

of the

contact terminal block to the grounding

surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.
