- 7 -

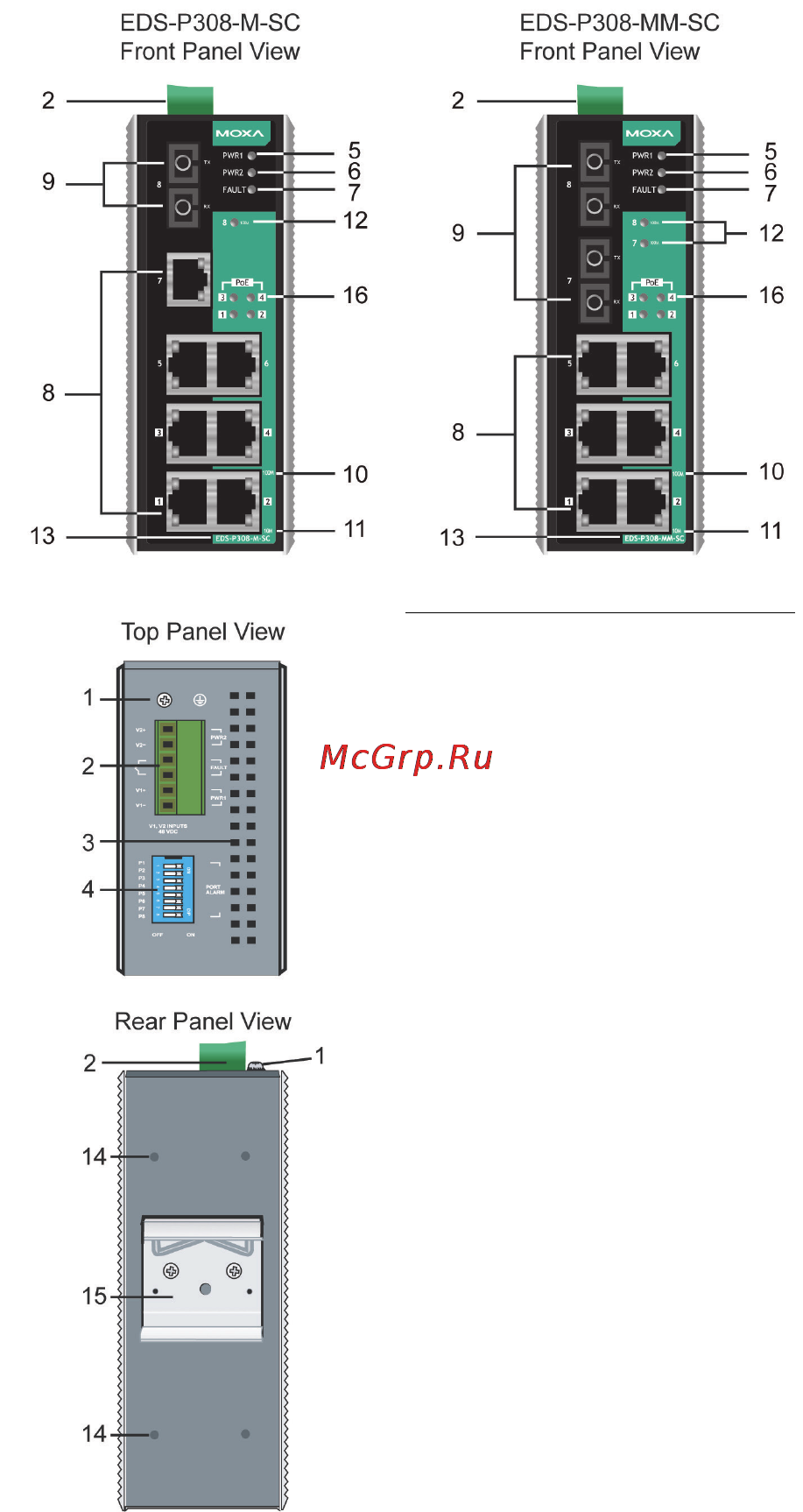

EDS-P308 (SC-type) Panel Layout

NOTE:

MSC

: Multi-Mode SC Connector

SSC: Single-Mode SC Connector

Product models not shown here:

EDS

-P308-S-SC is identical to

EDS-P308-M-SC.

EDS

-P308-SS-SC is identical to

EDS-P308-MM-SC.

1. Grounding screw

2. Terminal block for power inputs

PWR1, PWR2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input PWR1 LED

6. Power input PWR2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. 100BaseFX Port (SC type,

Multi/Single mode)

10.

TP port’s 100 Mbps LED

11.

TP port’s 10 Mbps LED

12.

FX port's 100 Mbps LED

13.

Model Name

14.

Screw holes for wall mounting kit

15.

DIN-Rail Kit

16.

PoE port LEDs (ports 1 to 4)
