WAC-1001 Web Console Configureation
3-5
Device name
Setting Description Factory Default
Max. 31 of characters This option is useful for specifying the role or application of
different WAC-1001 units.
WAC-1001_<Serial
No. of this
WAC-1001>
Device location
Setting Description Factory Default
Max. of 31 characters Specifies the location of different WAC-1001 units. None
Device description
Setting Description Factory Default
Max. of 31 characters Use this space to record a more detailed description of the
WAC-1001
None
Device contact information
Setting Description Factory Default
Max. of 31 characters
Provides information about whom to contact in order to resolve
problems. Use this space to record contact information of the
person responsible for maintaining this WAC-1001.
None

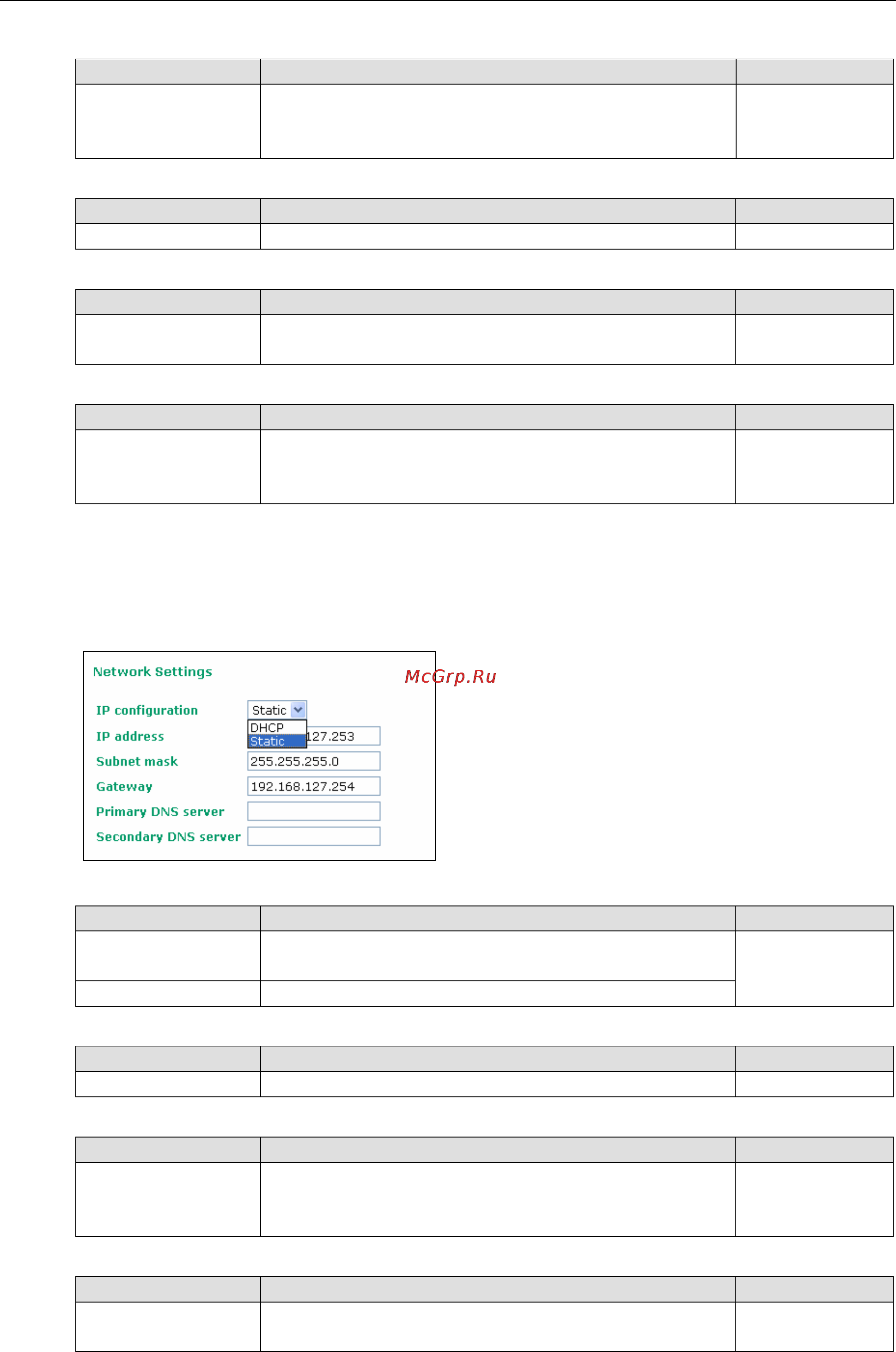

Network Settings
The Network Settings configuration panel allows you to modify the usual TCP/IP network parameters. An
explanation of each configuration item is given below.
IP configuration
Setting Description Factory Default
DHCP The WAC-1001’s IP address will be assigned automatically by
the network’s DHCP server
Static
Static Set up the WAC-1001’s IP address manually.
IP address
Setting Description Factory Default
WAC-1001’s IP address
Identifies the WAC-1001 on a TCP/IP network. 192.168.127.253
Subnet mask
Setting Description Factory Default
WAC-1001’s subnet
mask
Identifies the type of network to which the WAC-1001 is
connected (e.g., 255.255.0.0 for a Class B network, or
255.255.255.0 for a Class C network).
255.255.255.0
Gateway
Setting Description Factory Default
WAC-1001’s default
gateway
The IP address of the router that connects the LAN to an outside
network.
None
