DA-681A Series Hardware Hardware Installation

2-2

Placement Options

Desktop

Place your DA-681A on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between

the DA-681A and other equipment. Do not place equipment or objects on top of the DA-681A, as this might

damage the computer’s internal components.

Rack mounting

The DA-681A has rack mount supports for installing the embedded computer on a standard rack.

ATTENTION!

For maximum safety, a

t least two persons should work together to lift the embedded computer when

mounting

it in

to the rack.

Before you lift or move the embedded computer, make sure

the power to both the rack system and the

device

is turned off

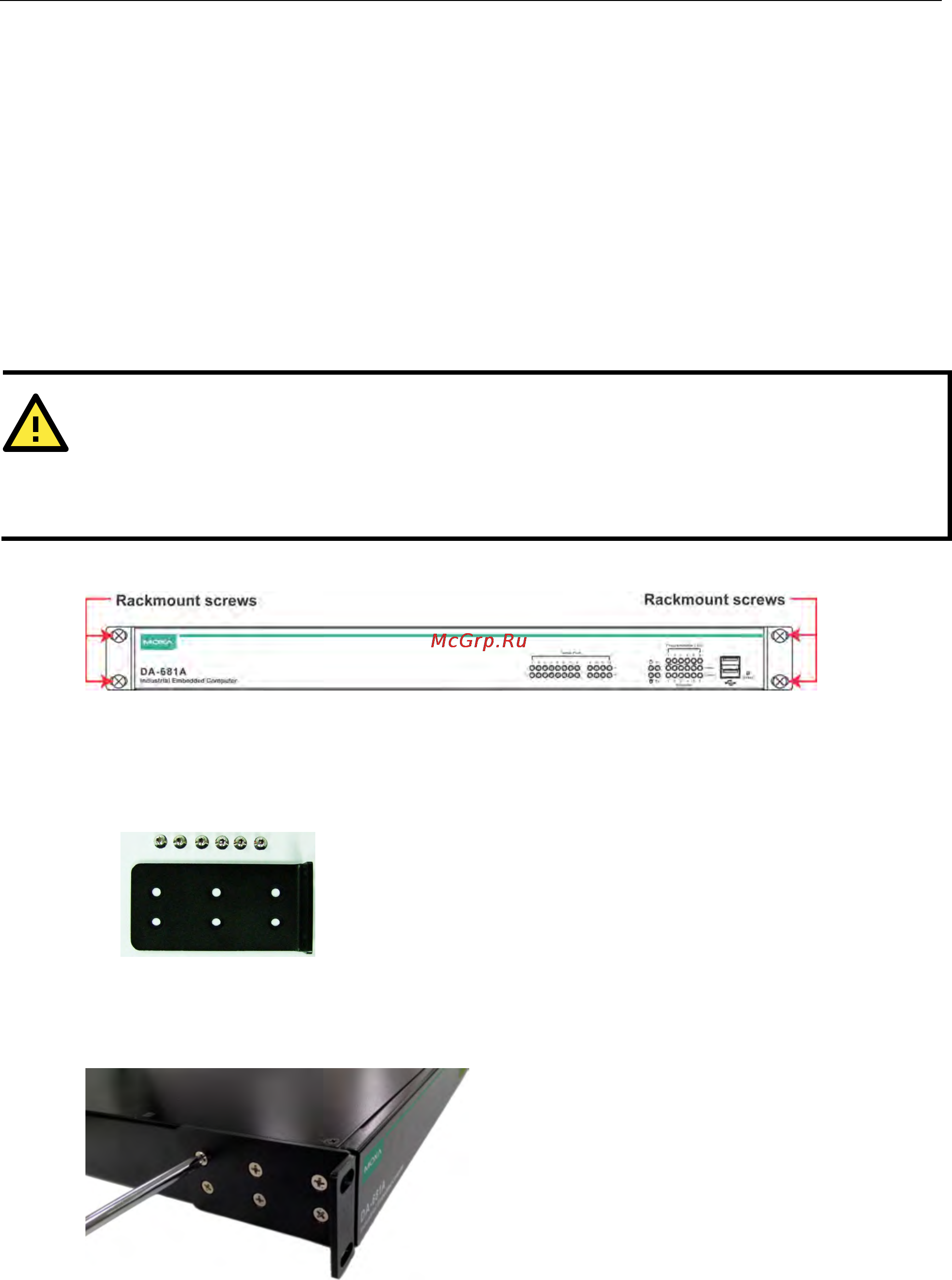

Four rack mount screws are required to attach the DA-681A to a standard rack.

Follow these steps to install the DA-681A on a rack.

Step 1: Installing the rack mount supports.

Take the rack mount supports out of the packages: there are two ears and 12 screws (one ear and one set of

screws are shown at right). Each ear requires 6 screws to attach to the rack.

Step 2: Installing the rack mount ears to the DA-681A.

Use 6 screws to attach one mounting ear to one side of the DA-681A, as shown at right. Repeat this procedure

for the other side of the DA-681A.
