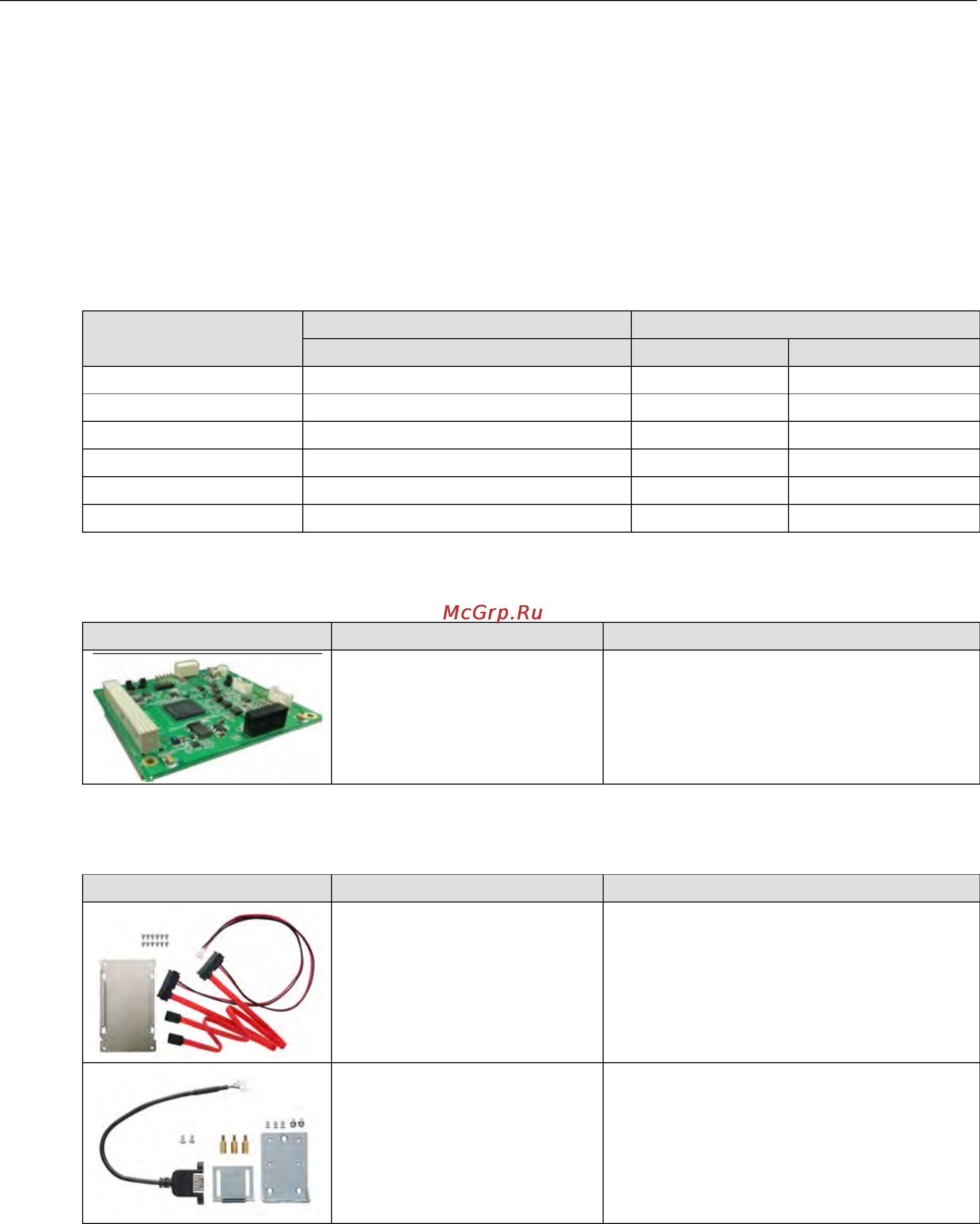

DA-681A Series Hardware Introduction
1-3
Each model is shipped with following standard items:
• DA-681A rackmount computer
• Rackmount kit
• Documentation CD or DVD
• Quick installation guide (printed)
• Warranty card
Optional Accessories
Model Name
Expansion Module Support Accessories
DA-IRIGB-4DIO-PCI104-EMC4 USB Dongle DA-681A HDD Kit
DA-681A-I-SP –
DA-681A-I-SP-LX –
DA-681A-I-DPP
DA-681A-I-DPP-LX
DA-681A-I-DPP-T
DA-681A-I-DPP-T-LX
Expansion Modules (can be purchased separately)
Model Description
DA-IRIGB-4DIO-PCI104-EMC4
Time synchronization expansion module, 1
IRIG-B signal input port, 3 digital inputs, 4
digital outputs (DA-681A-I-DPP series only)
Optional Accessories (can be purchased separately)
Model Description
DA-681A HDD Kit
The HDD/SSD installation package, supports
single HDD/SSD.
USB Dongle Kit
The USB dongle kit can be installed inside the
DA-681A and is suitable for security
applications. For example, it can be used to
store a SCADA license or for storing the
Smart Recovery backup image.
