DA-681A Series Hardware Hardware Installation
2-12

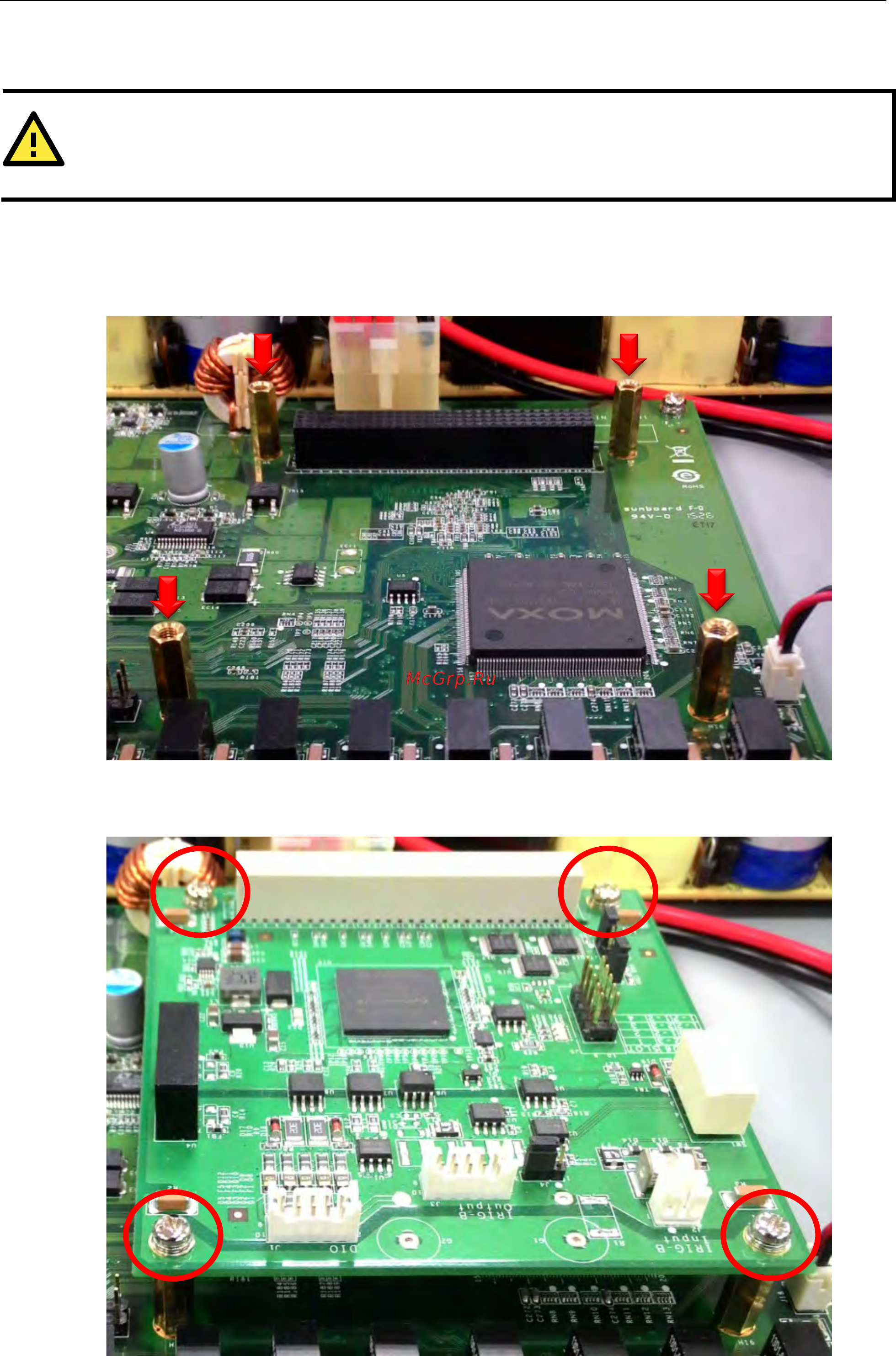

Connecting to the DA-IRIGB-B-S Series
ATTENTION
To prevent damage to your system or the
mother
board, make sure that you turn off the embedded computer
before installing the DA
-IRIGB-B-S Series module.
1. Turn the embedded computer off.
2. Remove the four screws for the PCI-104 socket.
3. Install the four spacers on the embedded computer.
4. Insert the DA-IRIGB-4DIO-PCI104-EMC4 module firmly into an available PCI/104 slot and tighten the
screws.
