DA-681A Series Hardware Hardware Installation
2-19

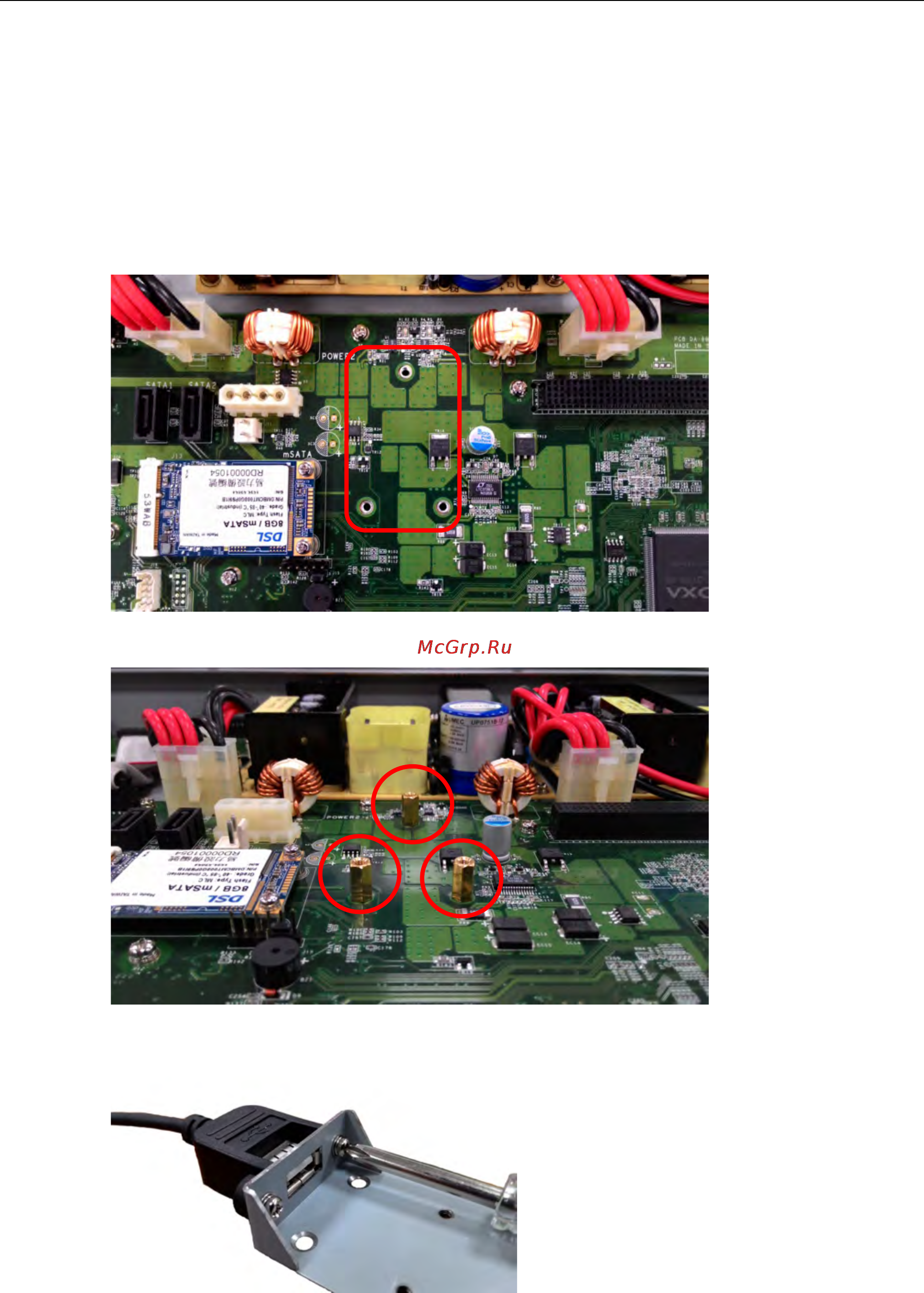

Installing a USB Dongle Kit
An optional USB Dongle Kit can be purchased separately for the DA-681A embedded computer for installing a
USB Dongle tightly inside the computer. To install the USB dongle with the USB Dongle Kit, follow these
instructions. (The USB Dongle Kit is an optional accessory that can be purchased separately.)
1. Disconnect the DA-681A from its power source.
2. Open the top cover of the DA-681A.
3. The USB Dongle Kit should be installed in the middle of the DA-681A and close to the mSATA.
4. Install the three spacers on the embedded computer.
5. Connect the USB Cable to the dongle bracket.
