Moxa DA-681A-I-DPP-LX [15/46] Connecting the power
![Moxa DA-681A-I-DPP-LX [15/46] Connecting the power](/views2/1198894/page15/bgf.png)
DA-681A Series Hardware Hardware Installation
2-4
ATTENTION
Safety First!
Be sure to disconnect the power cord before installing and/or wiring
your device.
Electrical Current Caution!
Calculate the maximum possible current in each power wire and common wire. Observe all
electrical codes
dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your
equipment.
Temperature Caution!
Be
careful when handling the unit. When the unit is
plugged in, the internal components generate heat, and
consequently the
outer casing may feel hot to the touch.

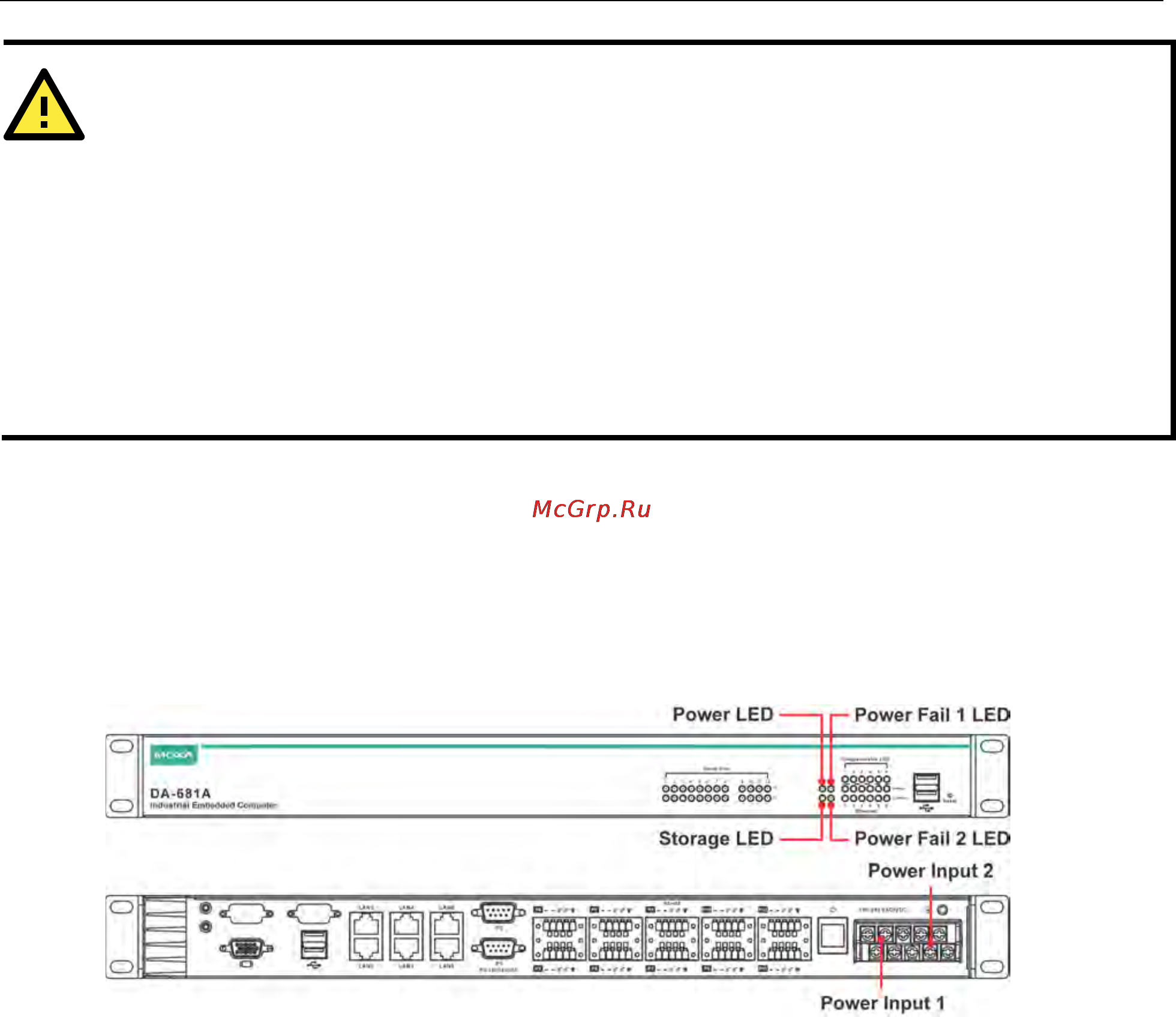

Connecting the Power
The DA-681A offers both single power and dual power inputs. Use a screwdriver to remove the screws. Connect
the power cord to the screws and then attach the screws to the unit. For single power models (SP), use Power
1 only; for dual power models (DPP and DPP-T), use both Power 1 and Power 2 for power input installation.
Refer to the following figure for detailed information.
