Installing the Memory Module

The DA-681A embedded computer supports one DDR3-1066/1333 SO-DIMM module with up to 8 GB. One 2 GB

DDR3 SDARM memory module is pre-installed for Linux models. An SDRAM module is not included with the

DA-681A-SP, DA-681A-DPP, and DA-681A-DPP-T barebones models. To install the DDR3 SDRAM memory

module, follow these instructions:

1. Disconnect the DA-681A from the power source.

2. The DA-681A’s memory module is located inside the DA-681A. Use a screwdriver to remove the screws on

the top cover of the DA-681A.

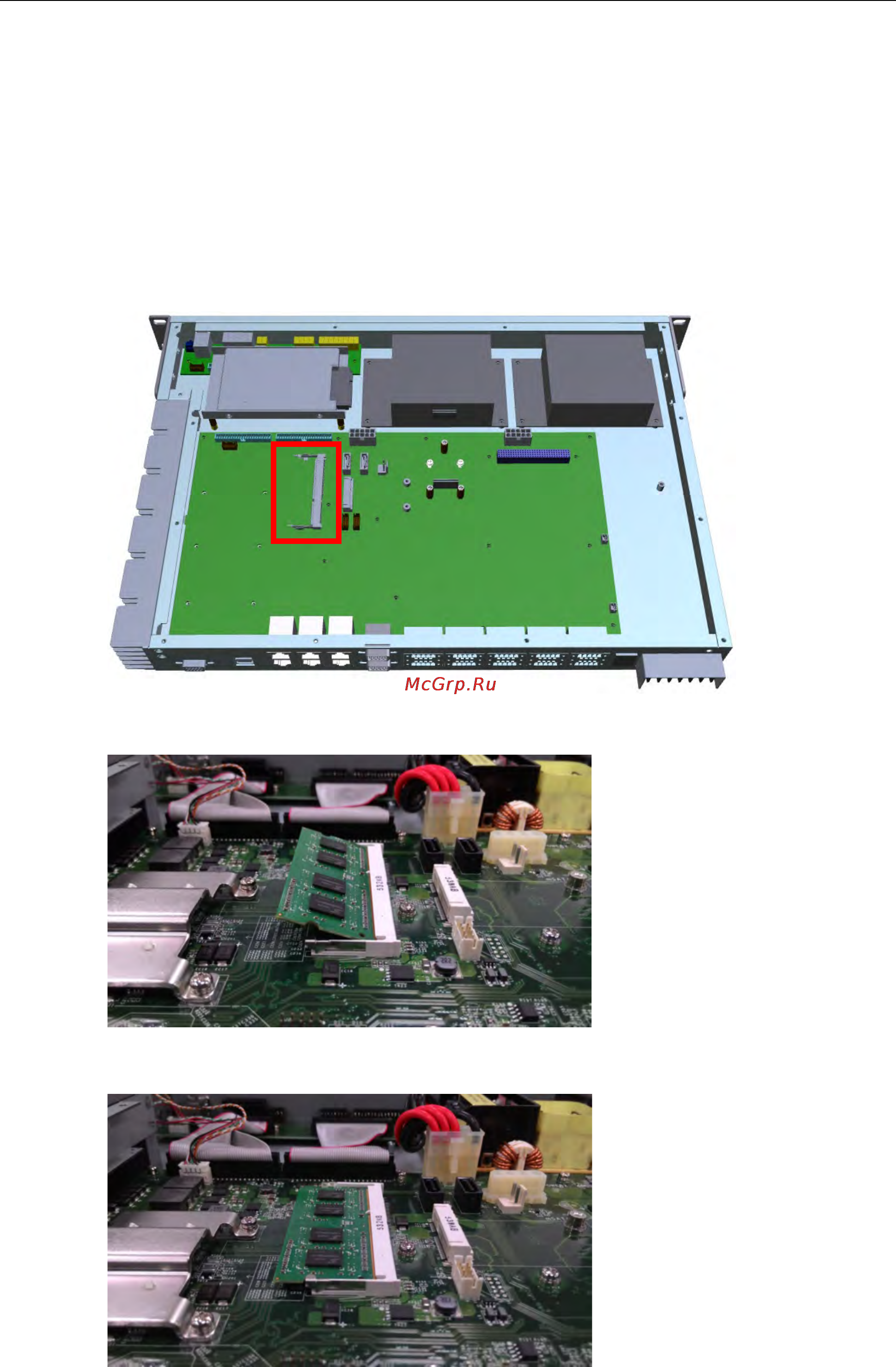

3. After removing the memory module cover, you will see the DDR3 SDRAM Socket.

Gently insert the new memory into the module. Make sure the direction is correct.

Push the memory all the way down to complete.
