DA-681A Series Hardware Hardware Installation
2-13

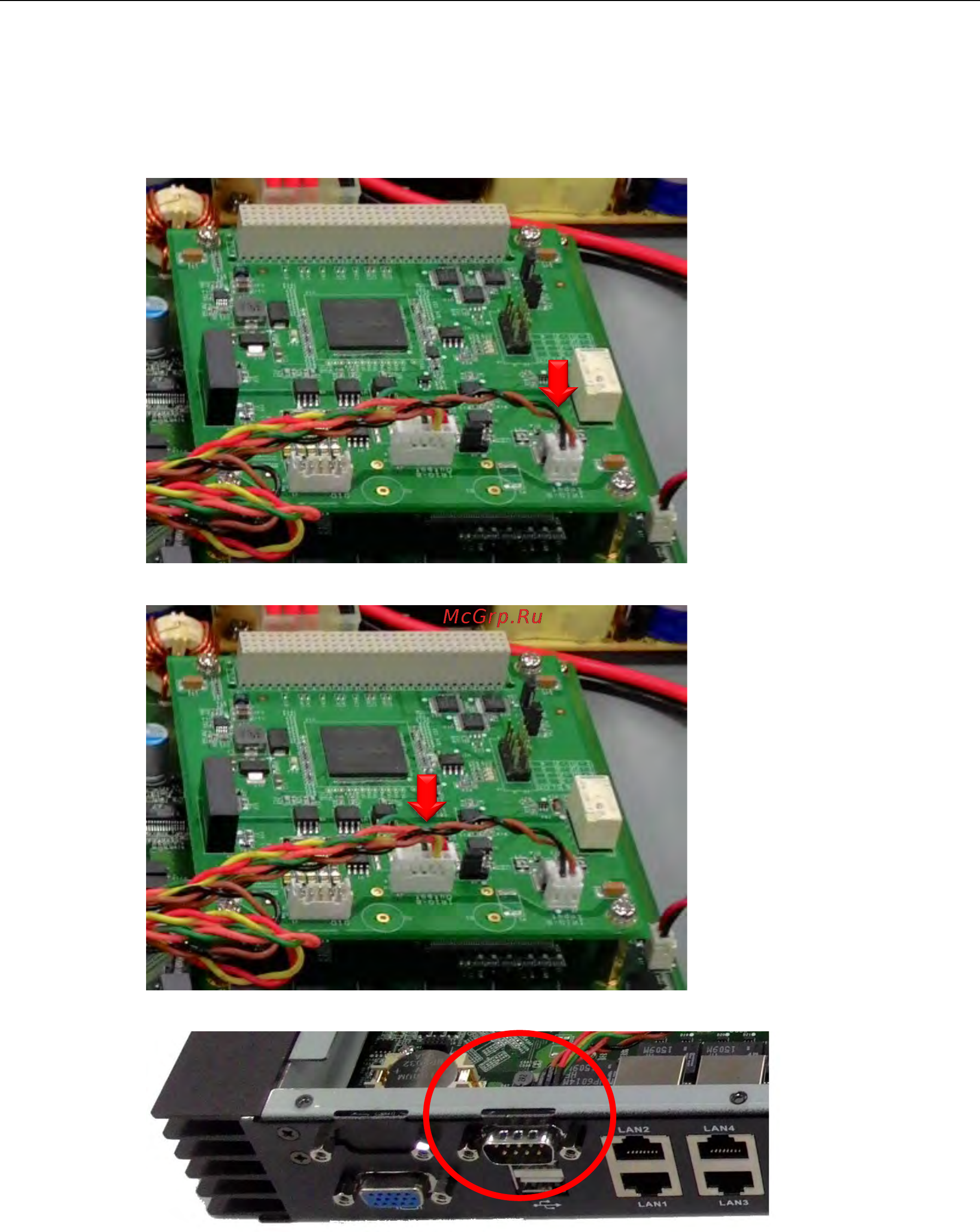

5. Connect the cables by completing the following actions:
a. Connect the 2-wire IRIG-B input signal cable.
b. Connect the 4-wire IRIG-B output signal cable.
c. Install the DB9 connectors on the rear panel of the embedded computer.
d. Connect the 2-wire IRIG-B input signal cable.
e. Connect the 4-wire IRIG-B output signal cable.
f. Install the DB9 connector on the rear panel of the DA-681A.
6. Turn on the embedded computer. The BIOS will automatically set the IRQ and I/O address.
