DA-681A Series Hardware BIOS Setup
3-12

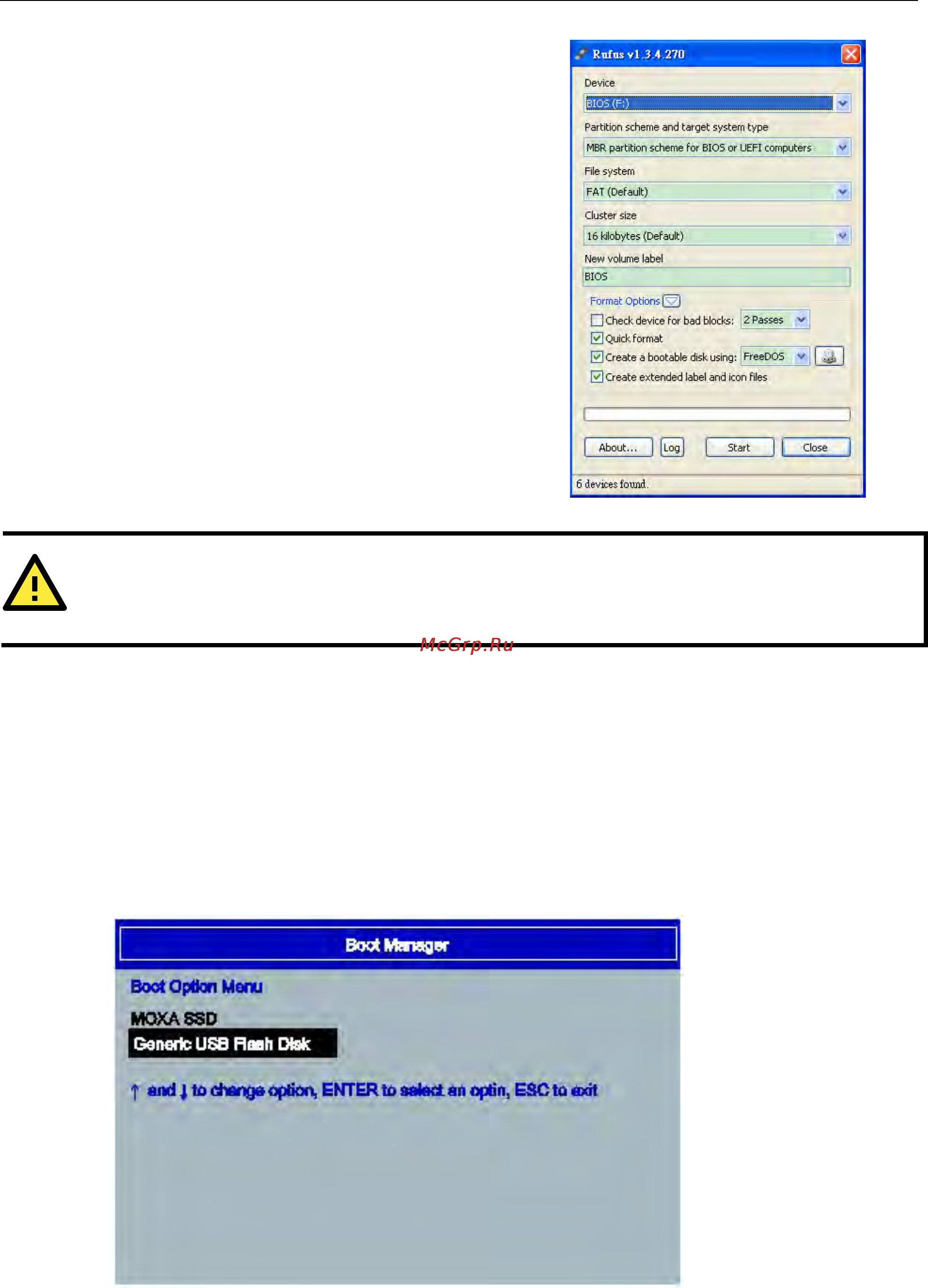

1.
Start Rufus and s
elect the USB device that you want to
use as a bootable disk from the Device drop-down list
.
2.
Select MBR partition scheme for BIOS or UEFI
computers to boot from a legacy BIOS or UEFI.
3.
Select FAT (Default) from File system drop-
down list.
4.
Select 16 kilobytes (Default) for Cluster size.
5.
Enter a drive name under New volume label.
6.
Check Quick format,
Create a bootable disk using
FreeDOS, and Create extended label and icon
files.
7.
Click Start to format and create the bootable USB
drive.
ATTENTION
We suggest you use a USB drive with under 2 GB in disk space, as larger USB drives may not support FAT file
format and consequently fail to boot.
Step 2: Prepare the Upgrade File
You must use the BIOS upgrade installation file to upgrade the BIOS. Contact Moxa’s technical department for
assistance.
1. Get the BIOS upgrade installation file. The file name should have following format: 681AxxSx.exe (xx
refers to version numbers).
2. Copy the file to the Bootable USB Disk.
Step 3: Run the upgrade program on the DA-681A Computer
1. Reboot the computer, press F2 while booting up to go to the Boot Manager
2. Select USB Disk as the first boot source. Press Enter to continue.
