DA-681A Series Hardware Hardware Installation
2-16
Installing a SATA Hard Disk / Solid State Disk
The DA-681A embedded computer has one SATA connector for installing a SATA hard disk / Solid State Disk.

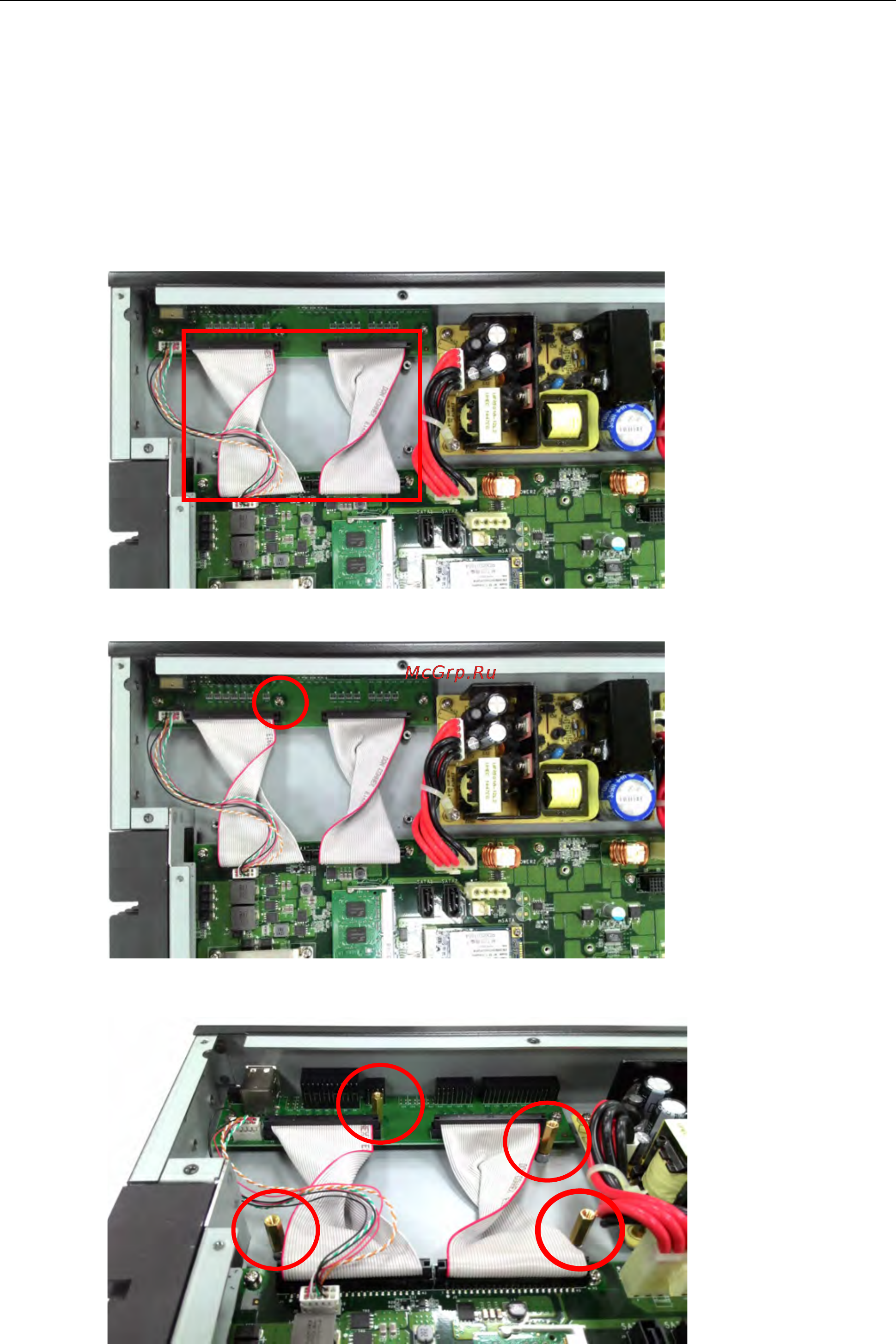

To install a 2.5-inch SATA hard disk / Solid State Disk, follow these instructions. (The hard disk bracket is an
optional accessory that can be purchased separately.)
1. Disconnect the DA-681A from its power source.
2. Open the top cover of the DA-681A.
3. The hard disk bracket should be installed on the top left side of the DA-681A.
4. Remove the screws for the LED board.
5. Install the four spacers on the embedded computer.
