Placement Options

Desktop

Place your DA-685 on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between

the DA-685 and other equipment. Do not place equipment or objects on top of the DA-685, as this might

damage the computer’s internal components.

Rack mounting

The DA-685 has rackmount supports for installing the embedded computer into a standard 19” rack.

ATTENTIONS

For maximum safety, at least two persons should work together to lift, place, and

fasten the

computer to the

rack.

Before you lift or move the computer,

first verify both it and any power to the rack system is turned off.

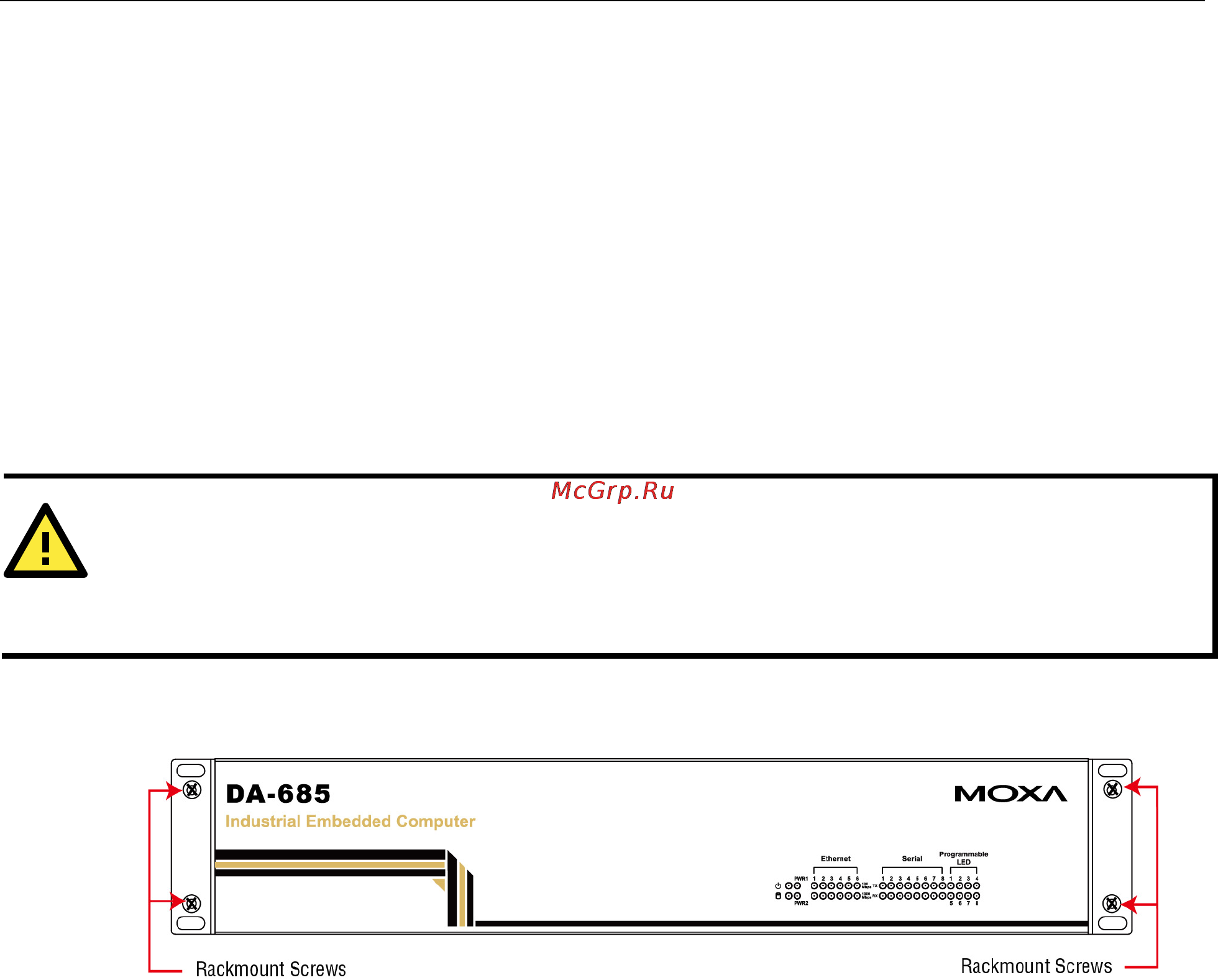

After installing the rack mounting assembly (ears, handles), four screws are required to fasten the DA-685 to

a rack.

Follow these steps to mount the DA-685 on a rack:

Step 1: Installing the rack supports (ears)

The rack mounting assembly should be included with your DA-685. If you do not find the assembly package

please contact a Moxa representative for rectification. Each assembly should contain 2 rack ears and 12

FMSM4X6 screws. Please note that the handle and the FMSM5X10 screws are not included in the standard

rack mounting assembly; these are optional accessories that come separately. If you are interested, please

contact Moxa for ordering information.
