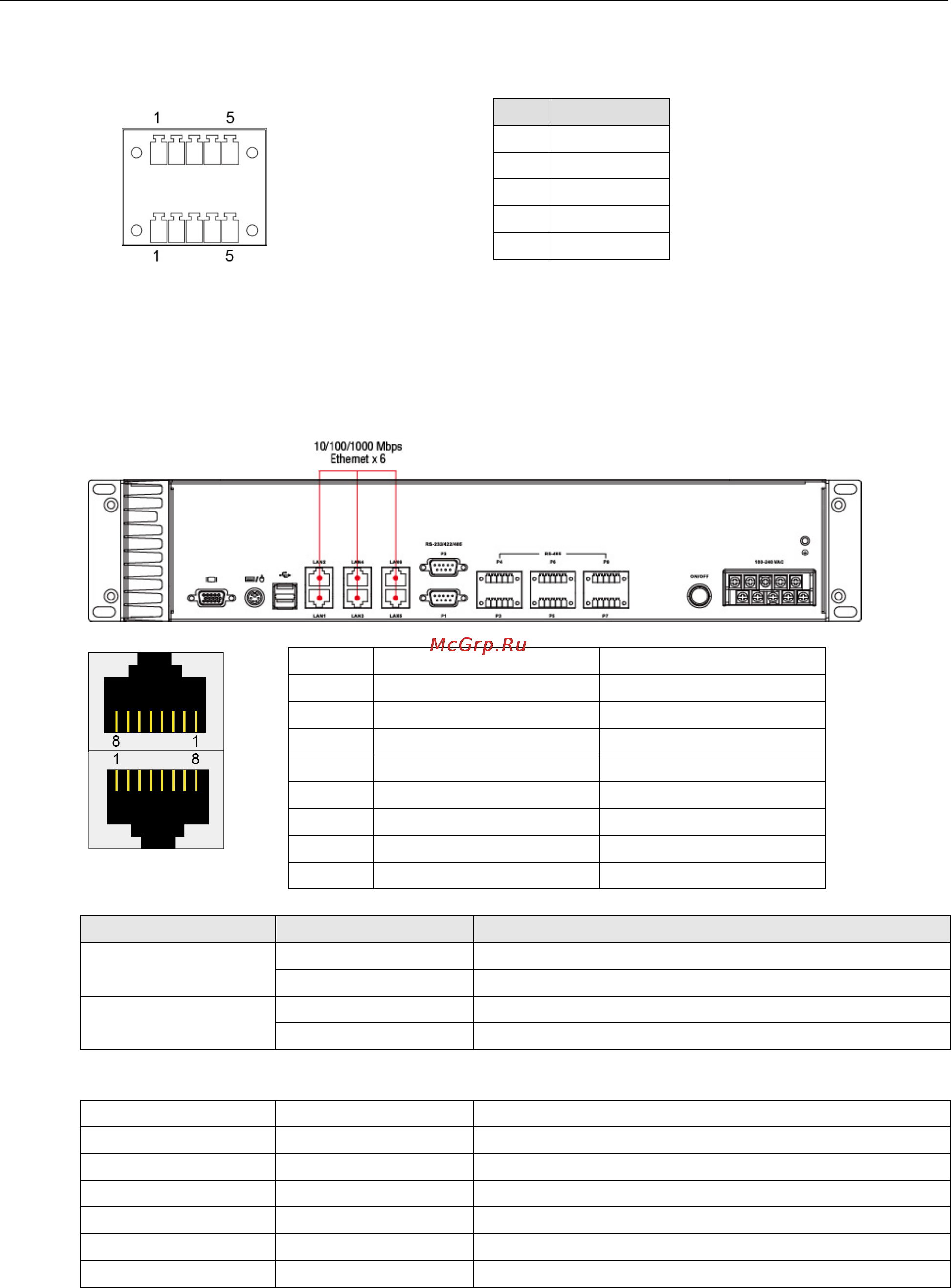

DA-685 Series Hardware Hardware Installation
2-11
The pin assignments for RS-485-2w serial ports are show in the following table:
Terminal Block Port RS-485-2w Pinouts
Pin RS-485-2W
1 –
2 –
3 DataB(+)
4
DataA(-)
5 GND
Connecting LAN Ports
The DA-685 has 6 10/100/1000 Mbps LAN ports. When the cable is properly connected, the LEDs on the front
panel will glow to indicate a proper connection.
Pin No.
100 Mbps Signal 1000 Mbps Signal
1 ETx+ TRD (0)+
2 ETx- TRD (0)-
3 ERx+ TRD (1)+
4 -- TRD (2)+
5 -- TRD (2)-
6 ERx- TRD (1)-
7 -- TRD (3)+
8 -- TRD (3)-
LED
Color
Description
Ethernet Port
1000 Mbps
Yellow 1000 Mbps of Ethernet Port is active
Off No activity
Ethernet Port
100 Mbps
Green
100 Mbps of Ethernet Port is active
Off 10 Mbps or no activity
The default IP addresses and netmasks of the Gigabit LAN ports are as follows:
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
LAN 3 192.168.5.127 255.255.255.0
LAN 4 192.168.6.127 255.255.255.0
LAN 5 192.168.7.127 255.255.255.0
LAN 6 192.168.8.127 255.255.255.0
NOTE Please note that the XPE and W7E models use DHCP.
