6. Push the memory

all the way down to

complete installation.

Installing a CompactFlash Card

The DA-685 embedded computer comes with a CompactFlash socket. To insert a CompactFlash card, follow

these instructions.

1. Disconnect the DA-685 from its power source.

2. The DA-685’s CompactFlash socket is located inside the DA-685. Use a screwdriver to remove all the screws

on the top cover of the DA-685.

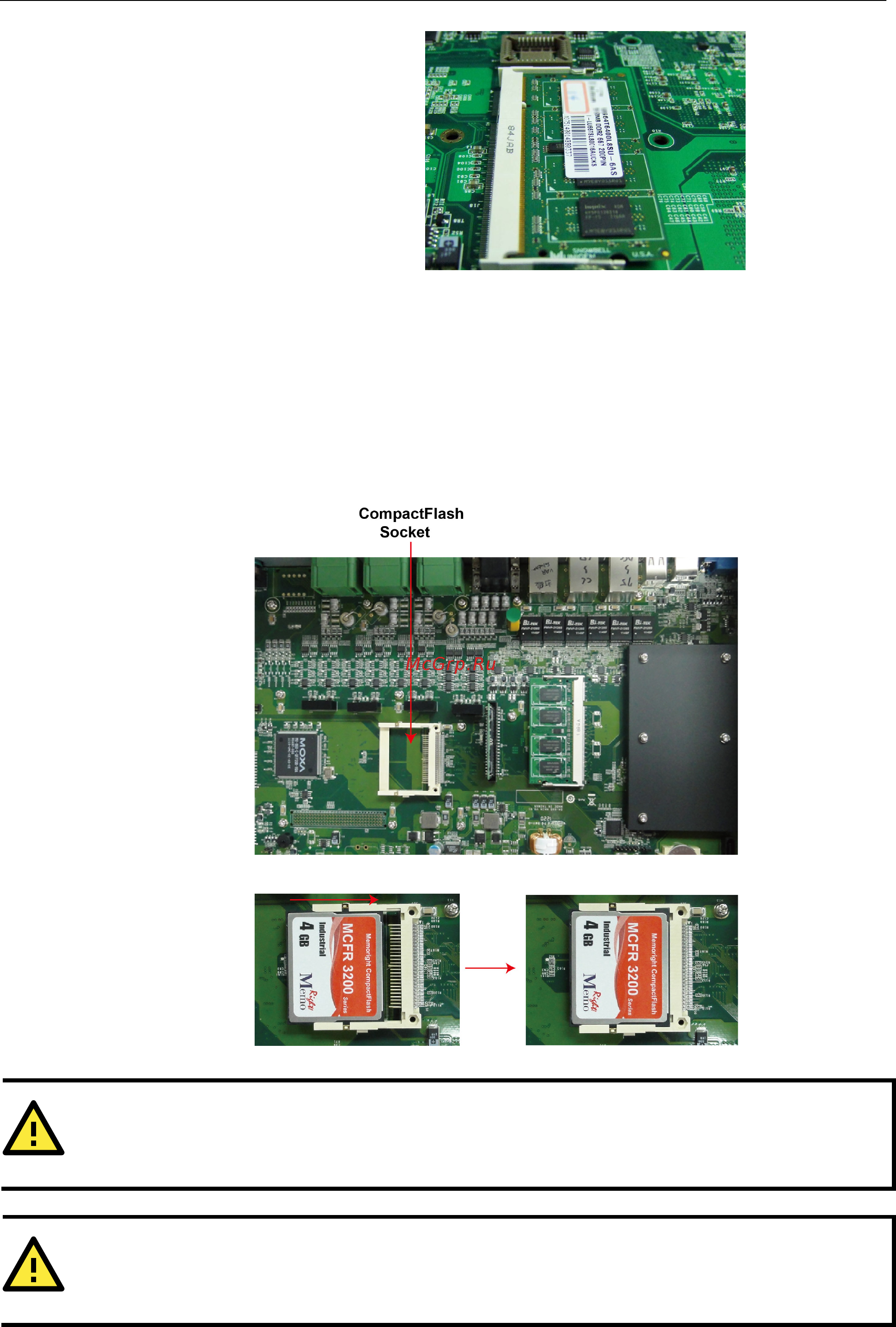

3. Insert the CompactFlash card into the socket. Push downwards to make sure that the card is firmly inserted.

ATTENTION

Make sure you insert the card in the right direction

– do not force the card

. The card cannot be inserted if you

insert

the card incorrectly.

ATTENTION

The

DA-685 embedded computer does not support CompactFlash hot swap and PnP

(Plug and Play). It is

first

necessary to remove the power source before inserting or removing the CompactFlash card.
