DA-685 Series Hardware Hardware Installation

2-5

ATTENTION

Do not run signal or communication wiring and power wiring in the same conduit. To avoid interference, wires

with different signal characteristics

(i.e., different interfaces) should be routed separately.

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or wiring your device.

Caution!

High Electrical Current!

Calculate the maximum possible current

for

each power wire and common wire. Observe all electrical codes

dictating the maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your

equipment.

Caution! High

Temperatures!

Be careful when handling the unit. When the unit is plugged in, the internal components generate

a lot of

heat

which may leave

the outer casing too hot to touch.

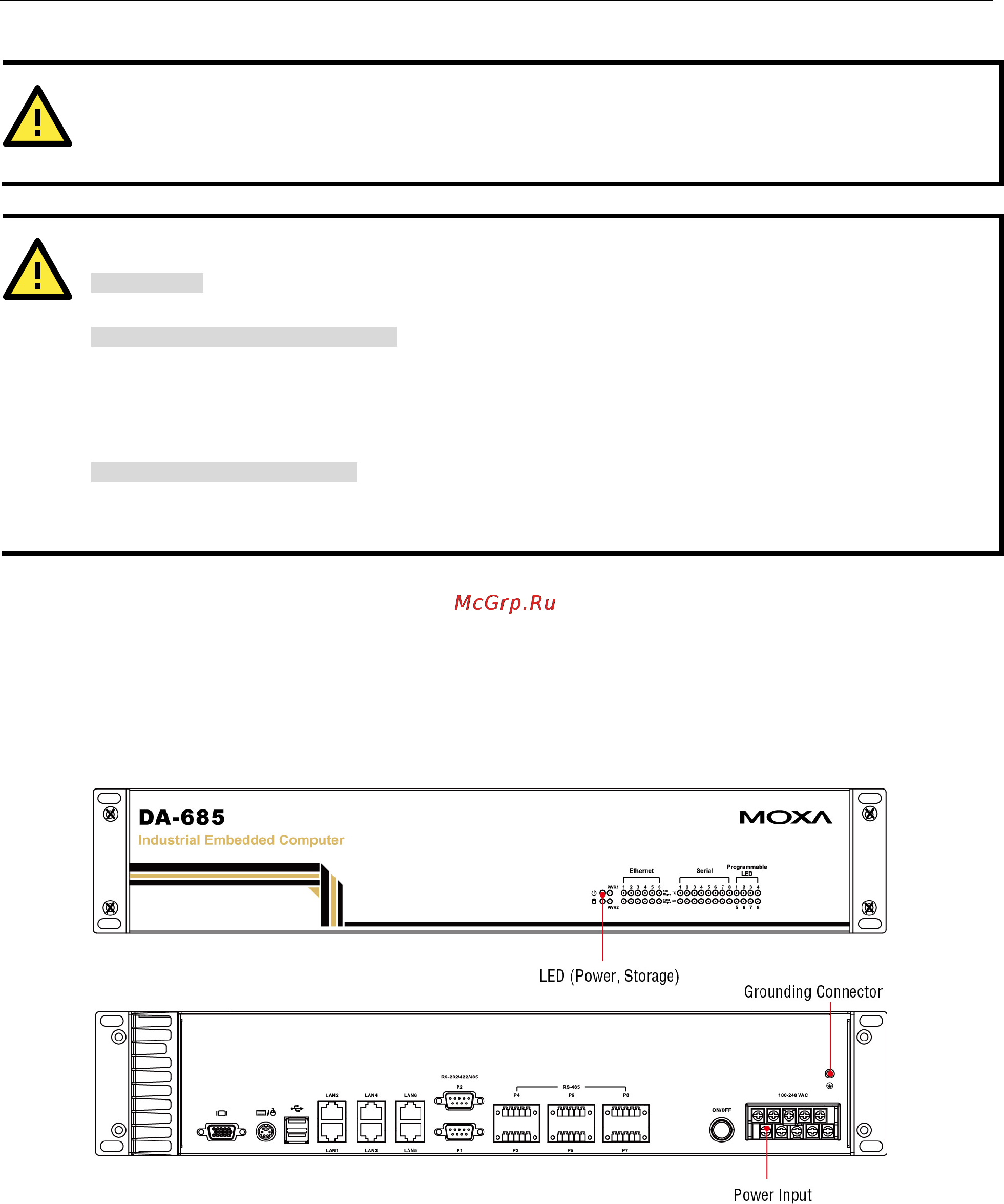

Connecting the Power Supply

The DA-685 offers both single power and dual power inputs. Use a screwdriver to remove the screws. Connect

the power cord to the screws and then attach the screws to the unit. For single models (SP), use Power 1 only;

for dual power models (DPP-T), use both Power 1 and Power 2 for power input installation. Refer to the

following figure for detailed information.
