DA-685 Series Hardware Hardware Installation

2-8

When finished, press the Power Switch button to start the system. It will take about 30 to 60 seconds for your

operating system to boot up.

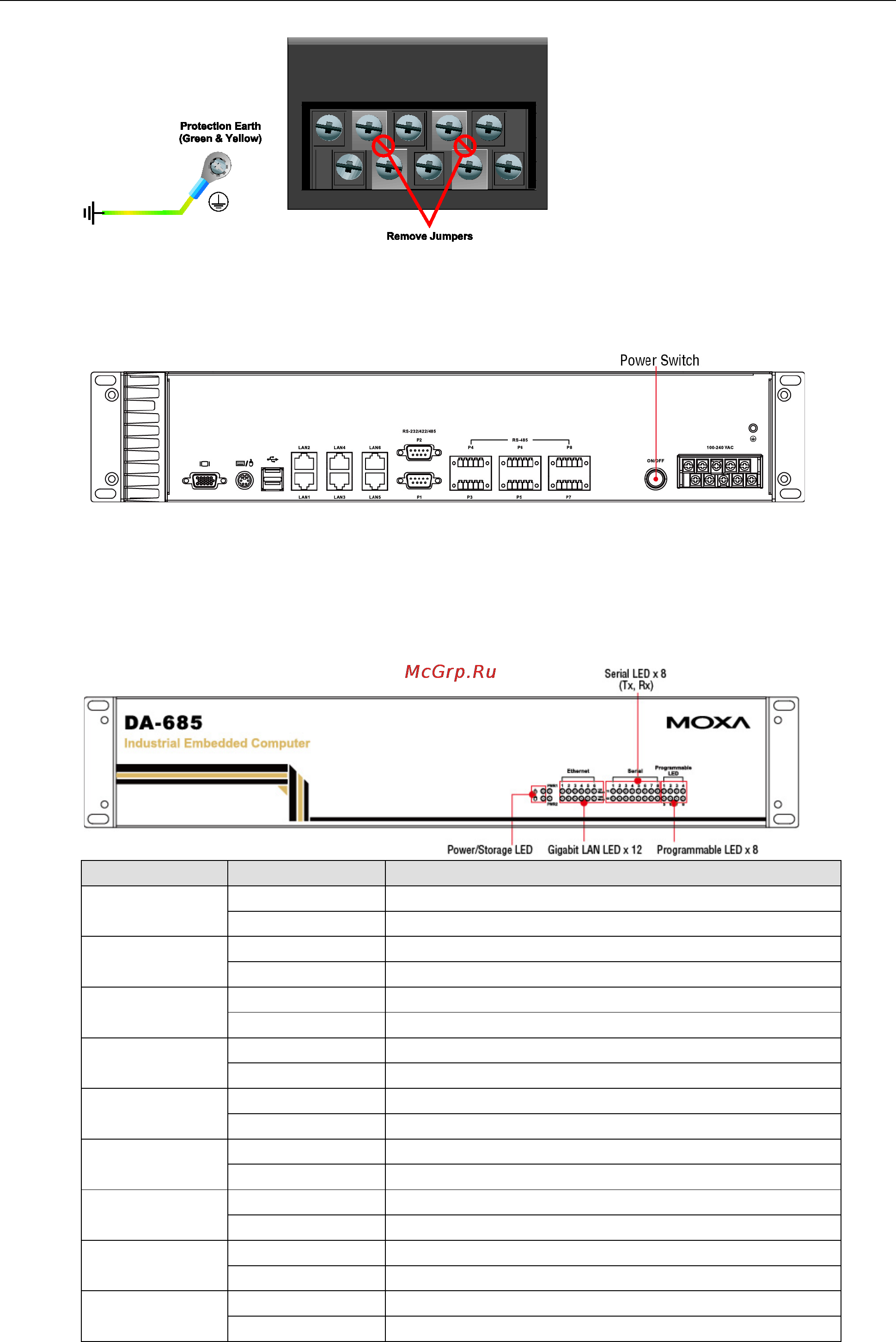

Front Panel LED

There are 40 LED indicators on the front panel. Information about each LED is given in the following table. The

additional ports LEDs, named Port 1 and Port 2 are temporarily reserved for future use.

LED Name Color LED Description

Power

Green Power is on

Off No power input or power error

Storage

Yellow / Blinking Data is being written to or to read from the storage unit

Off Storage unit is idle

Ethernet Port

100 Mbps

Green 100 Mbps of Ethernet Port is active

Off No activity

Ethernet Port

1000 Mbps

Yellow 1000 Mbps of Ethernet Port is active

Off No activity

Serial Port

TX 1-8

Green Serial port is transmitting data

Off No operation

Serial Port

RX 1-8

Yellow Serial port is receiving data

Off No operation

Programmable

Port 1-8

Green Defined by users

Yellow Defined by users

Power Fail 1

Unused --

Power Fail 2

Unused --
