DA-685 Series Hardware Hardware Installation
2-12
Upgrading the Memory Module
The DA-685 embedded computer supports one 200-pin DDR2 667 SODIMM module of up to 2 GB. One DDR2
SDRAM memory module is pre-installed. To upgrade the DDR2 SDRAM memory module, follow these
instructions:

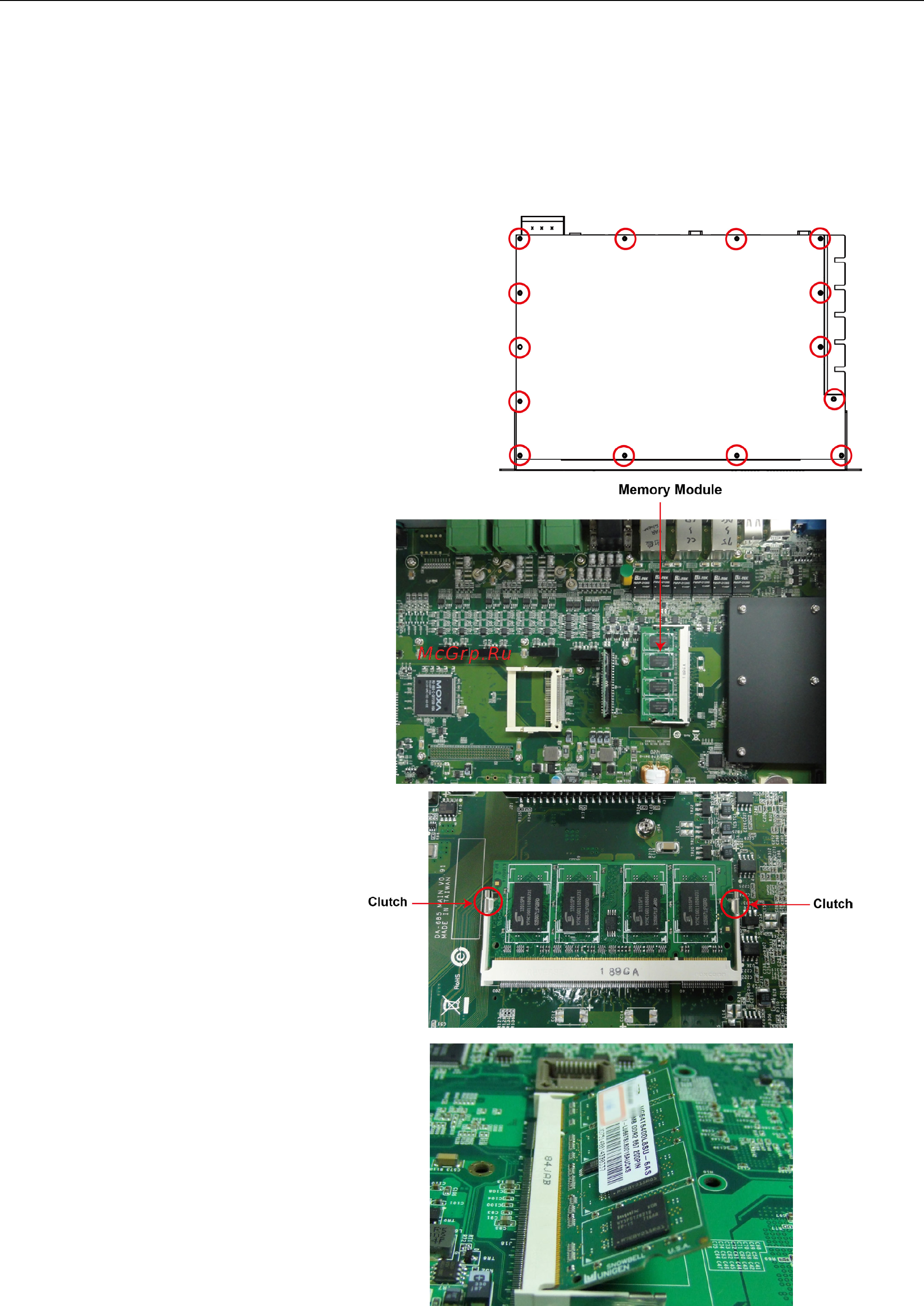

1. Disconnect the DA-685 from the power source.
2. The DA-685’s memory module is located
inside the DA-685. Use a screwdriver to remove
the screws on the top cover of the DA-685.
3. After removing the
cover, you will see
the DDR2 SDRAM
module.
4. To upgrade the
memory, you need to
remove the original
memory by pushing
two clutches at both
sides of the module.
5. Gently insert the
new memory into the
module. Make sure
the direction is
correct.
