DA-685 Series Hardware Hardware Installation
2-3

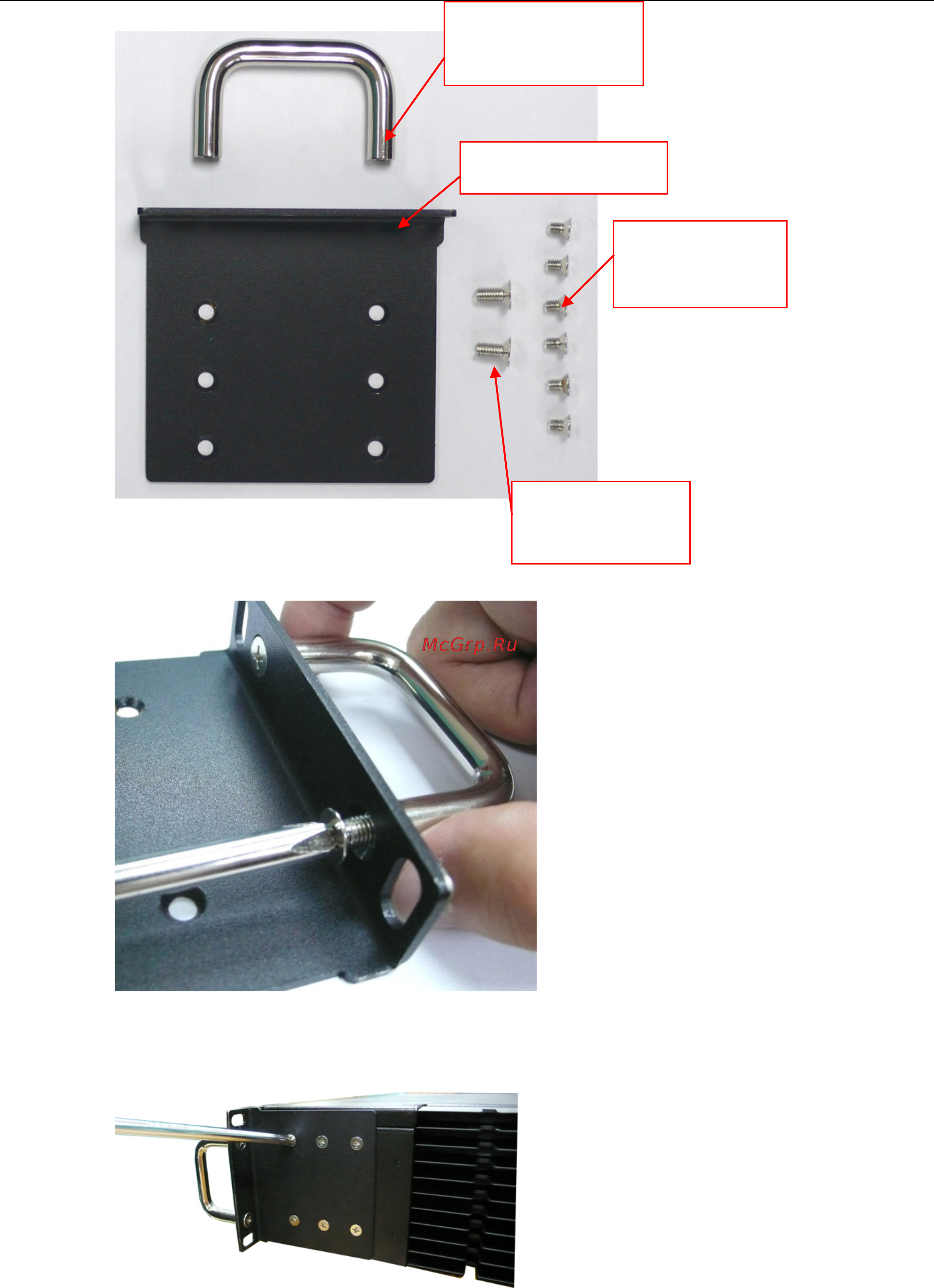

Step 2: Installing a rackmount handle (optional) to a rack ear
Use 2 FMSM5X10 screws to attach the rackmount handle to the ear, as shown.
Step 3: Installing the rack ears to the DA-685
For each side panel of the DA-685, use 6 FMSM4X6 screws to affix the ear to the DA-685, as shown below.
Step 4: Installing the DA-685 to a rack
Gently slide the DA-685 onto the rack and use the mounting screws provided by the rack supplier to affix
the DA-685 in place.
Rack handle
Rack ear
6 FMSM4X6
screws
2 FMSM5X10
screws
