DA-710 Series Linux Software Configuration
2-4
Connecting from an SSH Console
The DA-710-LX computer supports an SSH Console to offer users with better security over the network
compared to Telnet.
Windows Users
Click on the link http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html to download PuTTY

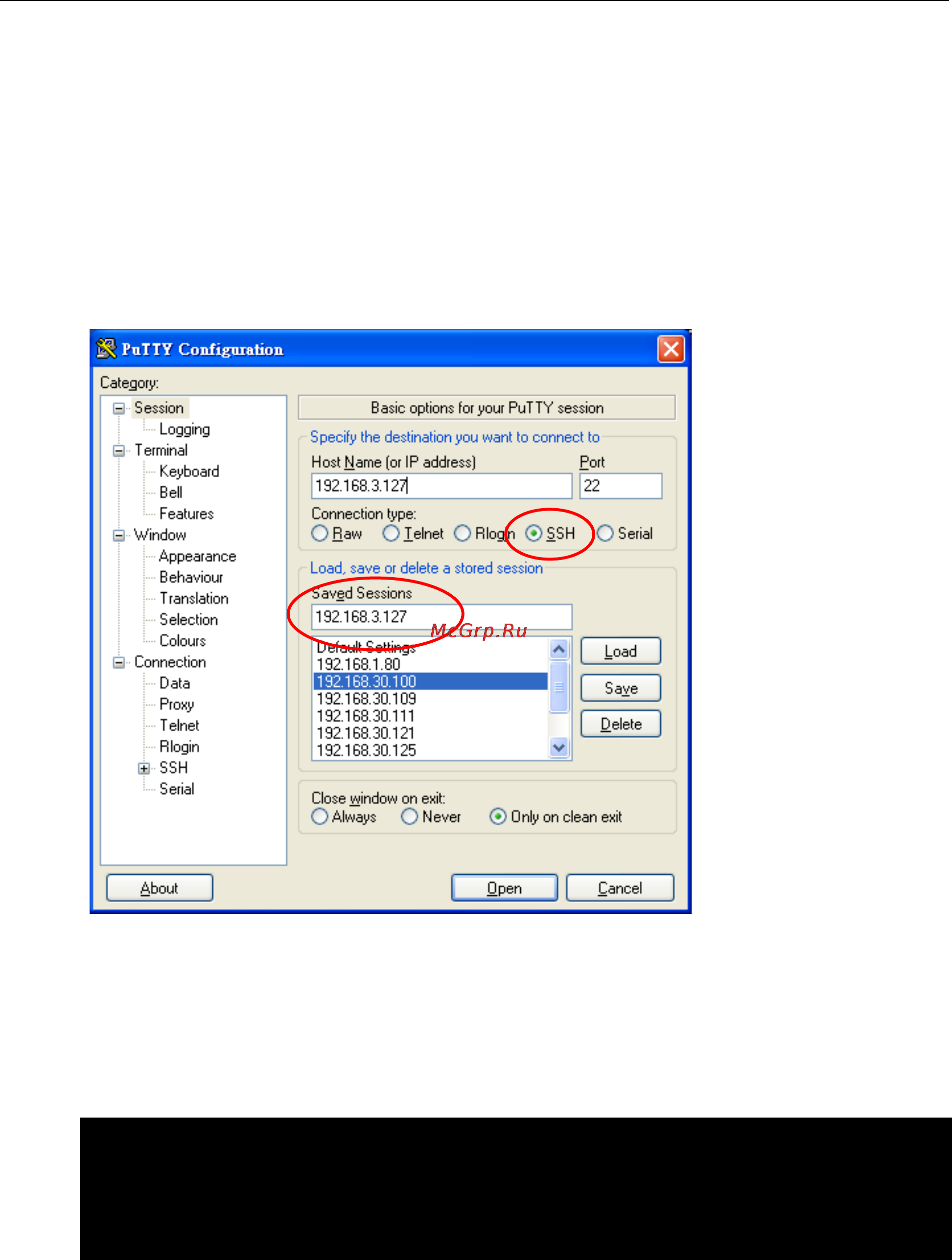

(free software) to set up an SSH console for the DA-710-LX in a Windows environment. The following screen
shows an example of the configuration that is required.
Linux Users
From a Linux machine, use the ssh command to access the DA-710-LX’s console utility via SSH.
#ssh 192.168.3.127
Select yes to open the connection.
[root@bee_notebook root]# ssh 192.168.3.127
The authenticity of host ‘192.168.3.127 (192.168.3.127)’ can’t be established.
RSA key fingerprint is 8b:ee:ff:84:41:25:fc:cd:2a:f2:92:8f:cb:1f:6b:2f.
Are you sure you want to continue connection (yes/no)? yes_
