DA-710 Series Linux Managing Communications
3-13

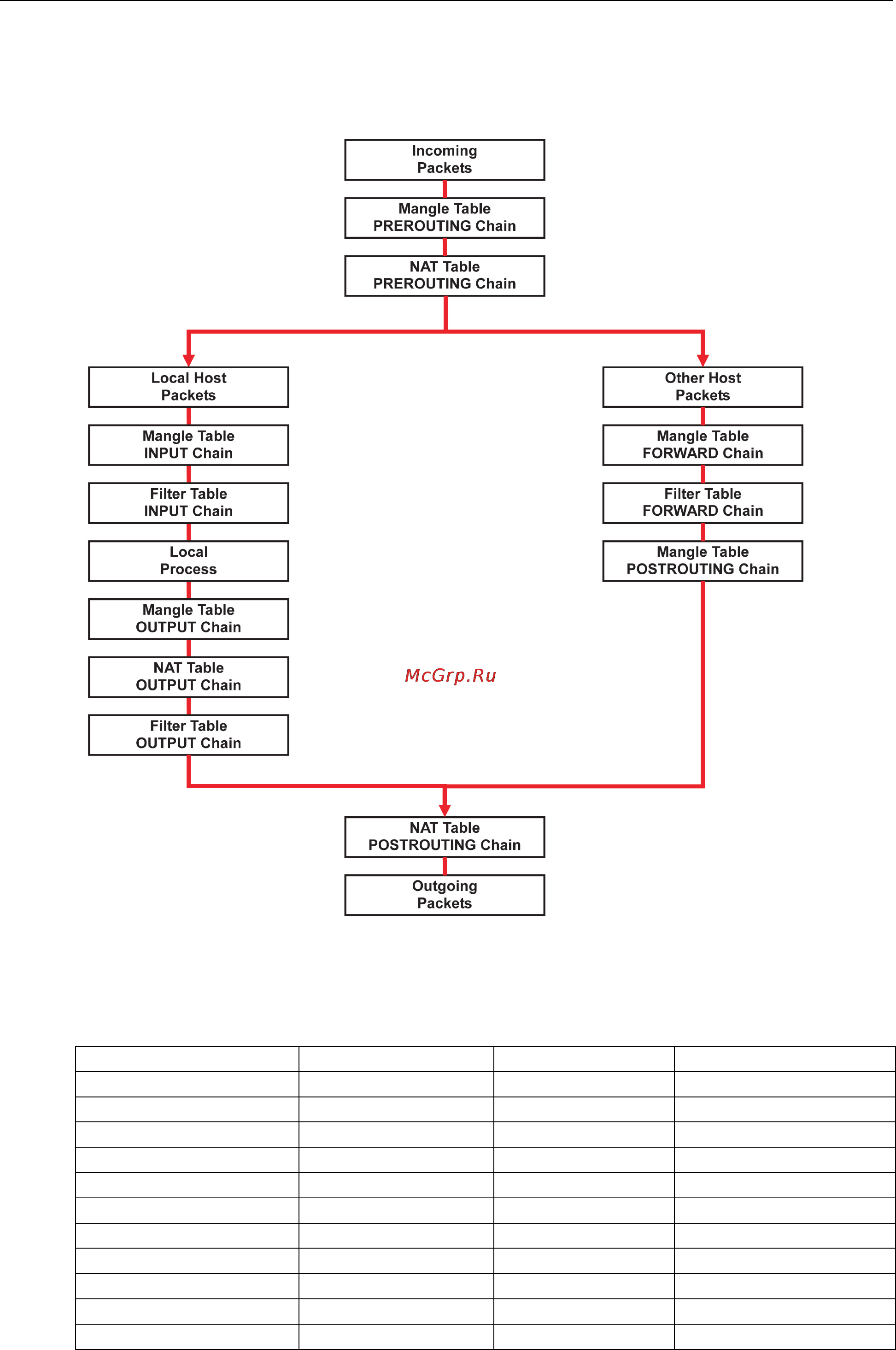

IPTABLES Hierarchy
The following figure shows the IPTABLES hierarchy.
IPTABLES Modules
The DA-710-LX supports the following sub-modules. Be sure to use the module that matches your application.
arptable_filter.ko arp_tables.ko arpt_mangle.ko ip_conntrack_amanda.ko
ip_conntrack_ftp.ko
ip_conntrack_h323.ko
ip_conntrack_irc.ko
ip_conntrack.ko
ip_conntrack_netbios_ns.ko ip_conntrack_netlink.ko ip_conntrack_pptp.ko ip_conntrack_proto_sctp.ko
ip_conntrack_sip.ko ip_conntrack_tftp.ko ip_nat_amanda.ko ip_nat_ftp.ko
ip_nat_h323.ko ip_nat_irc.ko ip_nat.ko ip_nat_pptp.ko
ip_nat_sip.ko ip_nat_snmp_basic.ko ip_nat_tftp.ko ip_queue.ko
iptable_filter.ko iptable_mangle.ko iptable_nat.ko iptable_raw.ko
ip_tables.ko ipt_addrtype.ko ipt_ah.ko ipt_CLUSTERIP.ko
ipt_dscp.ko ipt_DSCP.ko ipt_ecn.ko ipt_ECN.ko
ipt_hashlimit.ko ipt_iprange.ko ipt_LOG.ko ipt_MASQUERADE.ko
ipt_NETMAP.ko ipt_owner.ko ipt_recent.ko ipt_REDIRECT.ko
ipt_REJECT.ko ipt_SAME.ko ipt_TCPMSS.ko ipt_tos.ko
