DA-710 Series Linux System Recovery
5-8
ATTENTION
DO NOT turn off
the power during system recovery, as the system may crash.
Step 5: Set up the BIOS back to boot from DOM or CompactFlash Disk.
a. Power on and press DEL to enter the bios setup menu.

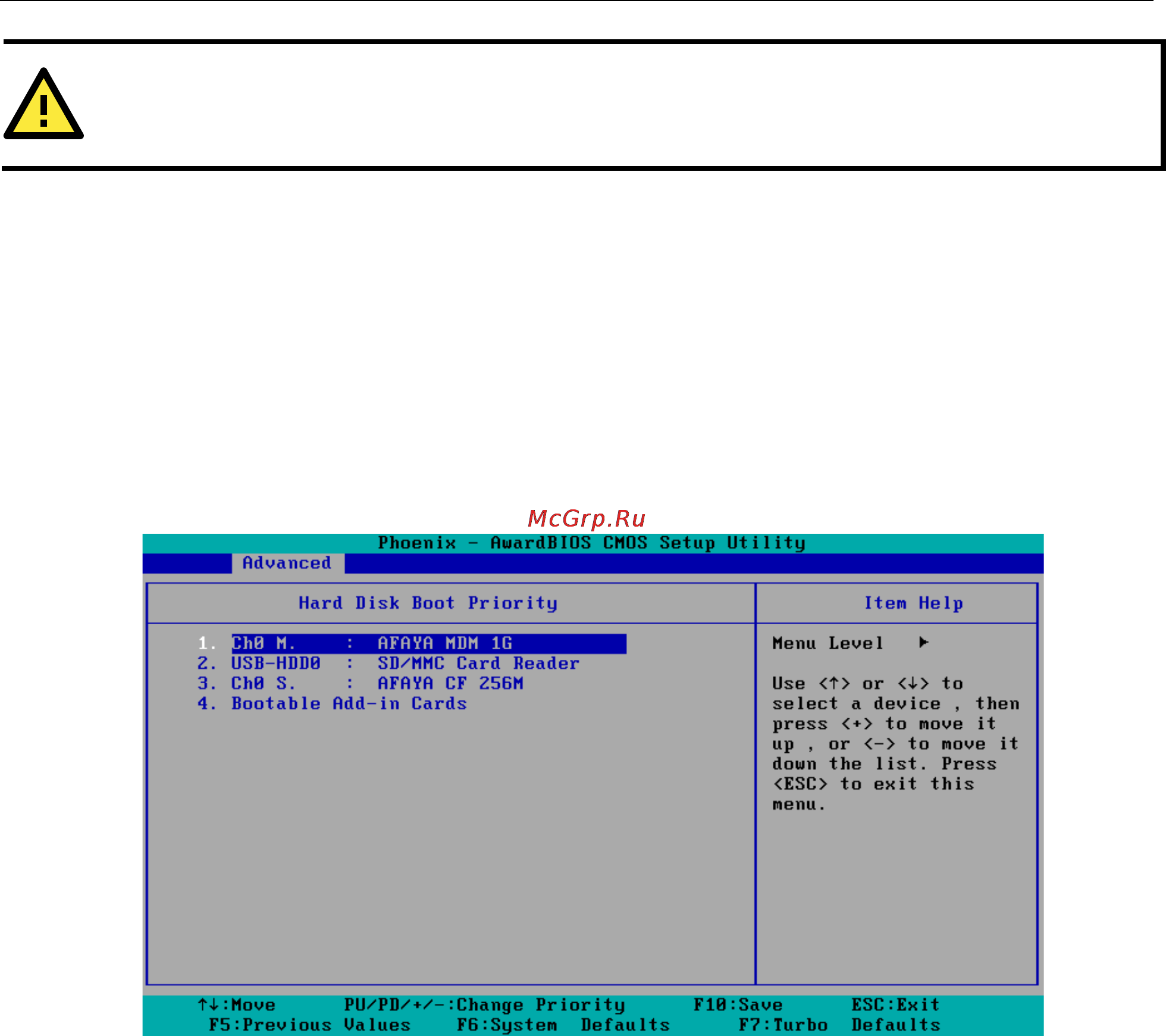

b. Select Advanced Hard Disk Boot Priority and then press Enter.
c. From the setup menu, use “↑” or “↓” to select the DOM or CompactFlash device.
d. Press “+” to move the selection up to the first priority, and press Esc to exit the setup menu.
e. Select Exit Save & Exit Setup and then press Enter.
f. Choose Y to save to the CMOS and then exit.
g. Wait a few minutes for the system to boot. When the recovery process is finished, you will again be able to
see the Linux desktop.
