DA-710 Series Linux System Recovery
5-3
Step 2: Create a Linux Bootable USB Disk.

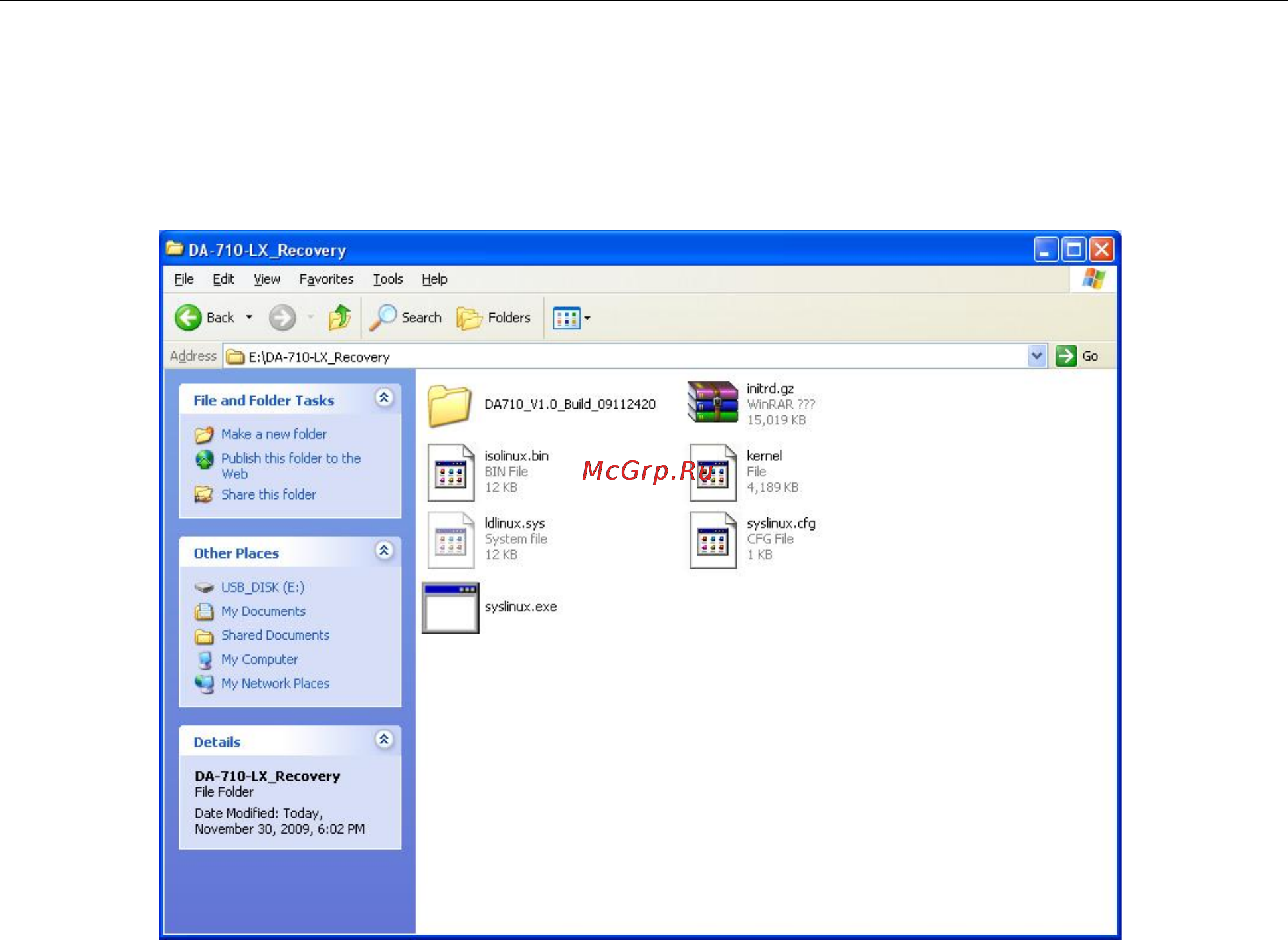

a. You can find the firmware directory in the Recovery CD shipped with the DA-710-LX computer.
b. Configure Windows Explorer to show hidden files (including protected operating system files).
c. Copy all files in the firmware directory to the root directory of your USB disk.
d. Open a DOS prompt and type M:\syslinux.exe M: to create a bootable Linux disk.
In this example, M: is the USB Disk drive number.
