V2616A Hardware Manual Hardware Introduction
2-3

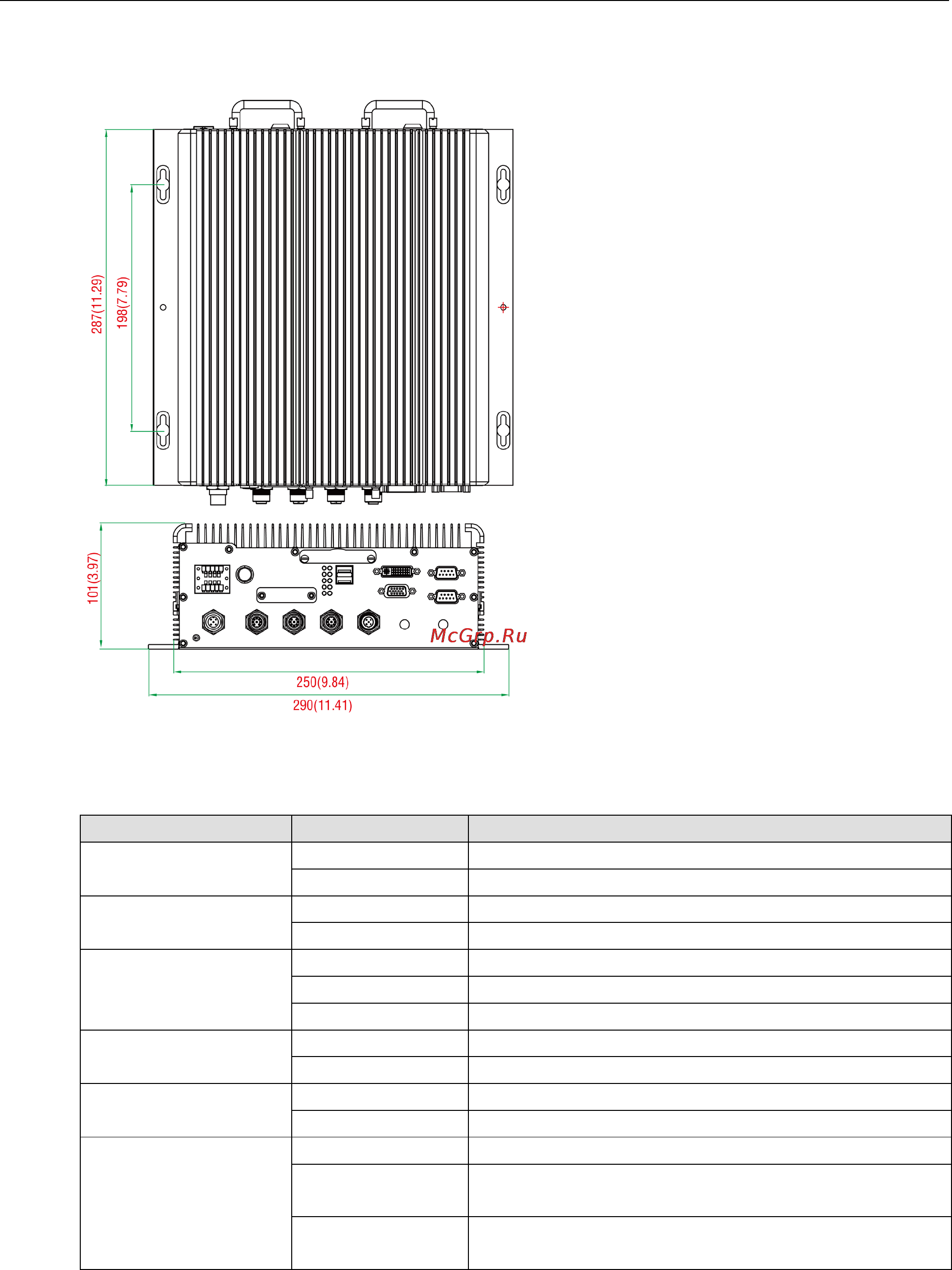

Dimensions
LED Indicators
LED Name LED Color LED Function
Power Green Power is on and functioning normally
Off Power is off, or has failed
Storage Yellow CFast card/HDD/SSD is transmitting data.
Off CFast card/HDD/SSD is not transmitting data.
LAN (1, 2) Green 100 Mbps Ethernet mode
Yellow 1000 Mbps Ethernet mode
Off 10 Mbps or no activity
Tx (P1-P2) Green Serial ports P1-P2 transmitting data
Off Serial ports P1-P2 not transmitting data
Rx (P1-P2) Yellow Serial ports P1-P2 receiving data
Off Serial ports P1-P2 not receiving data
L1 Red Programmable. By default, two disks ready to be removed.
Blinking Programmable. By default, disks inserted into incorrect
storage tray.
Off Programmable. By default, two disks inserted into correct
storage trays.
