Moxa V2616A-C5 [23/44] Attention

V2616A Hardware Manual Hardware Connection Description

3-10

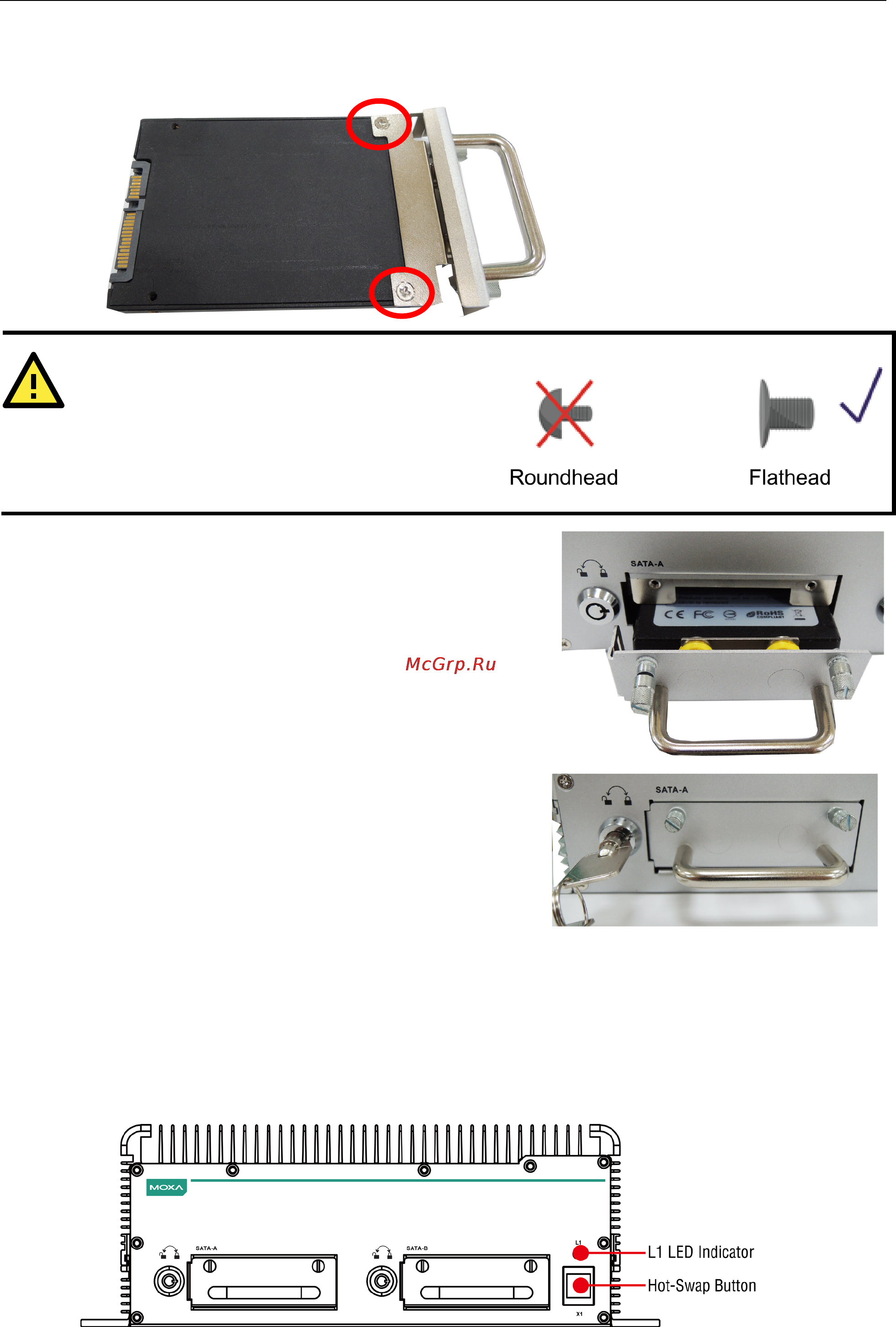

3. Pull out the faceplate by unscrewing the thumbscrews in the upper corners, and then remove the plate.

Fasten the storage drive to the faceplate flange as shown below, using the two flathead screws that were

shipped with your V2616A.

ATTENTION

To successfully fit the disk into the slot, use the

flathead screws to fasten the hard disk to the tray.

Do not use the roundhead screws, since they may

prevent you from being able to insert the tray into the

slot.

4. Carefully align the drive with the drive slot, and gently insert

the drive into the computer, taking care that it slides

smoothly and firmly into the SATA mounts.

5. When finished, turn the key clockwise to activate the lock

and tighten the thumbscrews. Use the same method to

install a hard disk in second storage tray.

As these are hot-swappable storage trays, you can replace the storage disks while the computer is still powered

on. Follow these steps:

1. Push the hot-swap button, located on the lower right of the front panel.

2. Observe the L1 LED indicator (marked in the diagram below). When the LED starts blinking, the system will

start to unmount the storage disk.

3. When the LED stops blinking, you may remove the storage drive.
