V2616A Hardware Manual Hardware Connection Description
3-4
M12X-8PMM-IP68 Connector Field-installation X-coded screw-in Gigabit
Ethernet connector, 8-pin male, M12 connector,
IP68-rated.
NOTE
For best performance and transmission quality, Moxa strongly
recommends that you use cables and connectors
from Phoenix Contact.

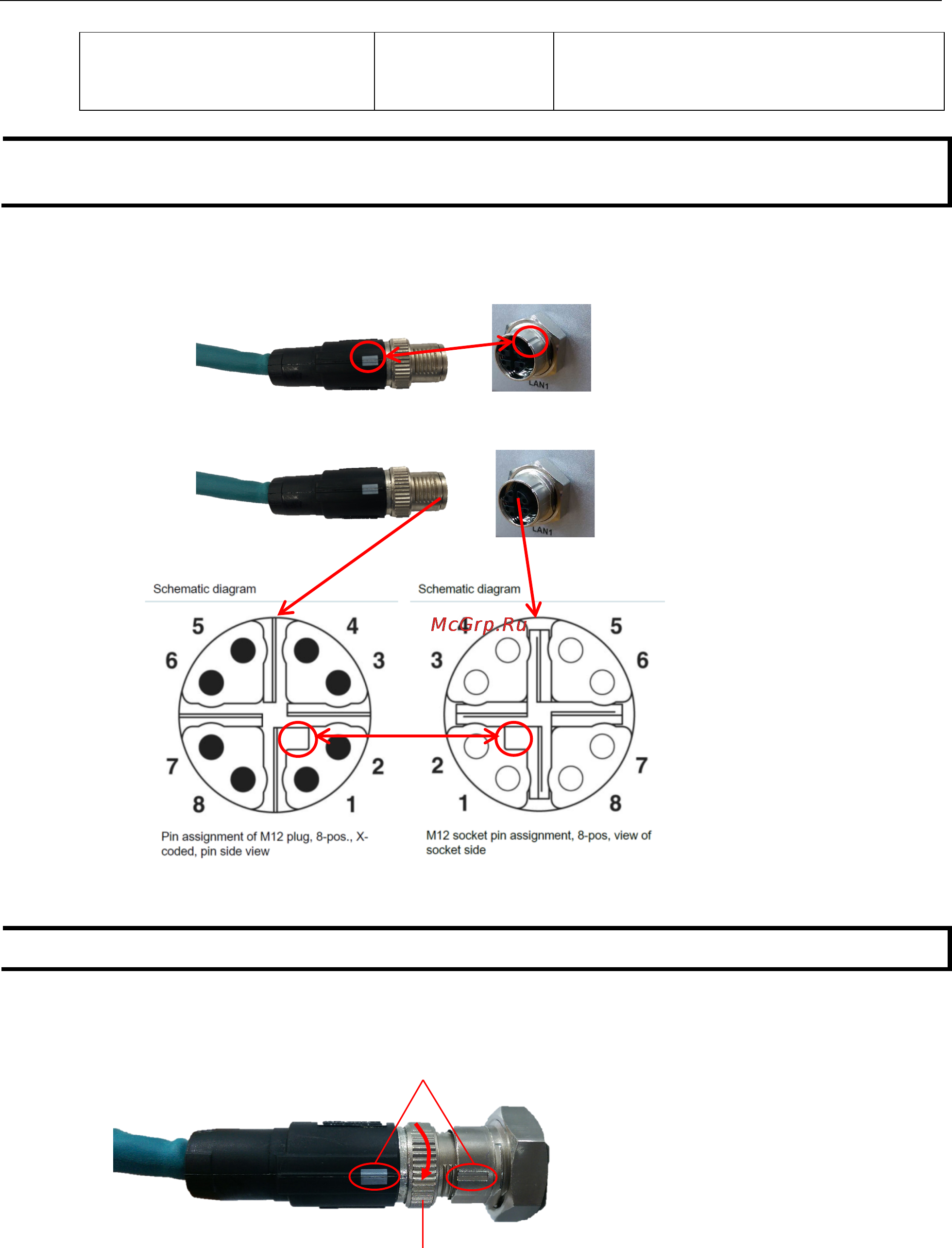

2. Depending on your M12 X-coded cable, orient the cable so that:
- The indicator on the M12 X-coded cable aligns with the key notch on the port, or
- The notch on the M12 X-coded cable pin core aligns with the notch on the port socket.
3. Connect the M12 X-coded cable to the port.
NOTE Do NOT push the M12 X-coded cable into the port with excessive force.
4. Turn to tighten the interlock screw without using a mechanical tool (such as a screw wrench).
Interlock screw
Aligned
