V2616A Hardware Manual Hardware Connection Description

3-8

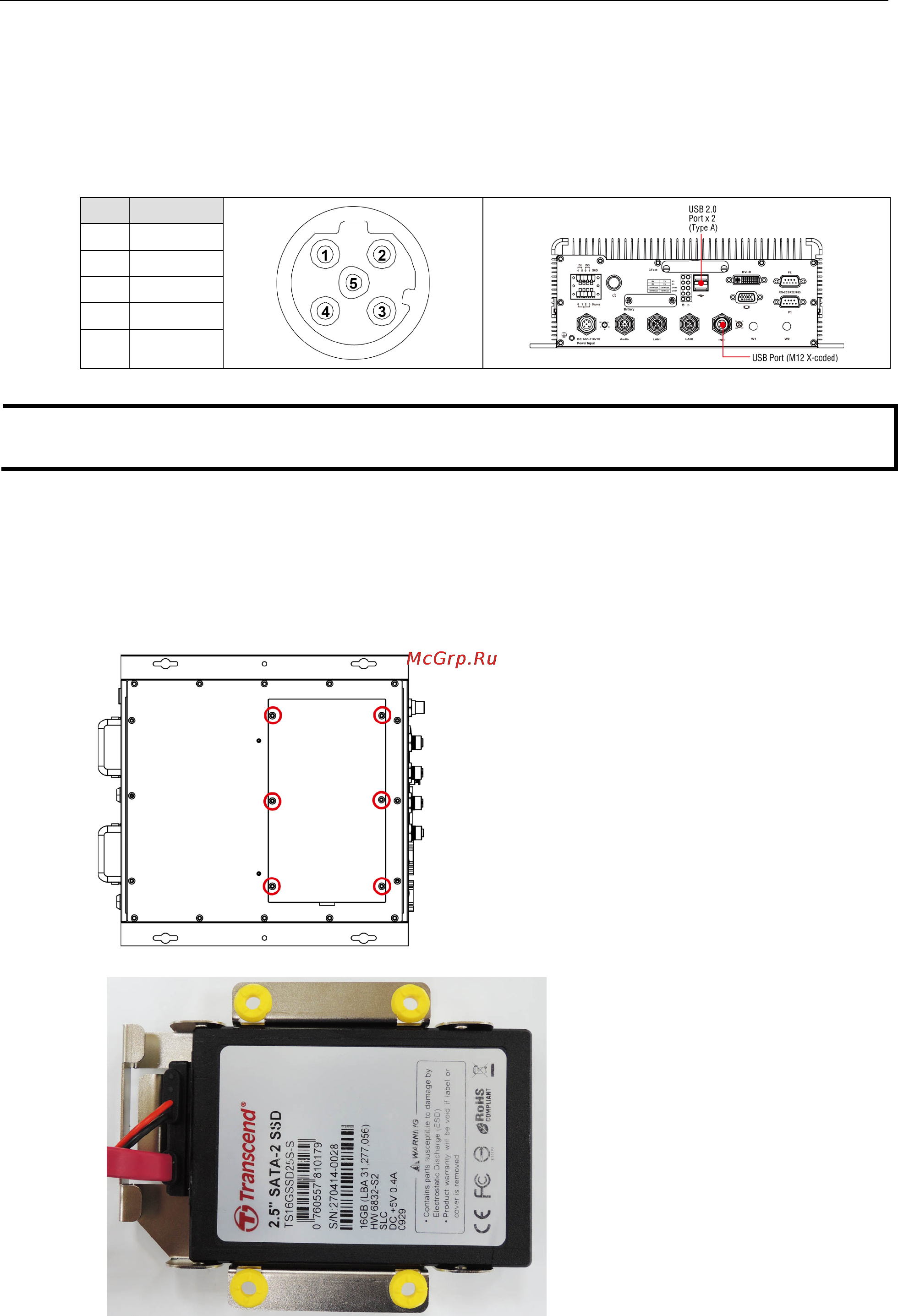

Connecting to the USB Ports

On its rear panel the V2616A has an X-coded M12 USB 2.0 port, as well as 2 type A USB 2.0 ports. The hosts

can be used for an external flash disk or hard drive for storing large amounts of data. You can also use these

USB hosts to connect to a keyboard or a mouse. See the following figures for the locations of the USB ports and

the M12 X-coded connector pin assignment.

Pin USB

1 D+

2 D-

3 +5V

4 GND

5 N.C.

NOTE This is the pin assignment for the computer-side USB ports on the V2616A shell. If you are wiring

peripheral-side connectors for a USB cable, you will need to mirror the pin assignment.

Installing an Internal Storage Device

The V2616A computer comes with an internal storage tray that allows users to install a 2.5-inch SATA storage

device, such as a hard disk or a SSD drive. Take the following steps to install your storage device.

1. Remove the 6 screws from the V2616A’s rear panel.

2. Install the hard disk onto the internal storage kit. Connect the cable and connector.
