V2616A Hardware Manual Hardware Connection Description

3-7

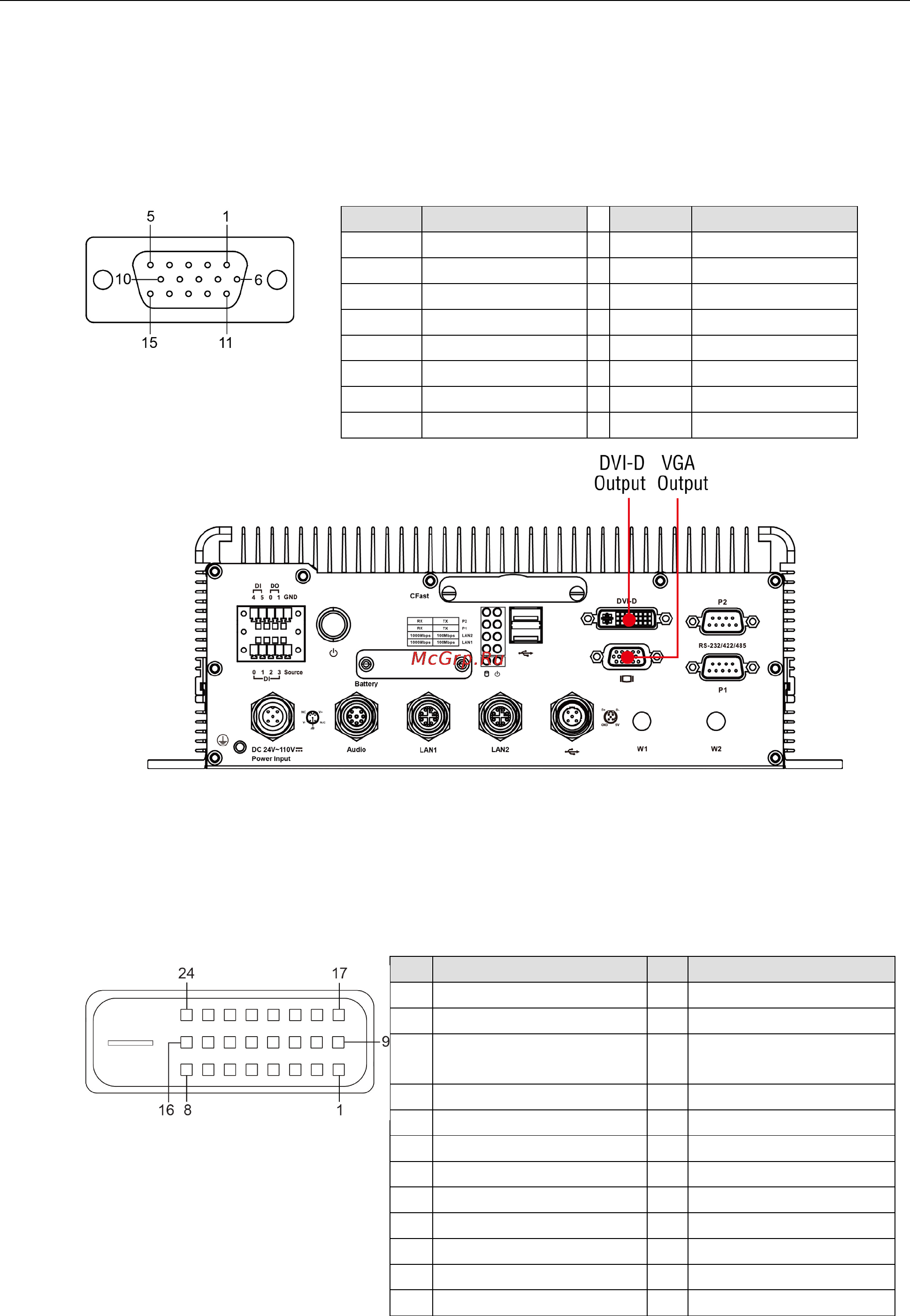

Connecting to a VGA Monitor

The V2616A comes with a D-Sub 15-pin female connector on the front panel to connect a VGA monitor. To

ensure that the monitor image remains clear, be sure to tighten the monitor cable after connecting it to the

V2616A. The location and the pin assignments of the video outputs are shown in the diagram below.

DB15 Female Connector

Pin No. Signal Definition Pin No. Signal Definition

1 Red 9 VCC

2 Green 10 GND

3 Blue 11 NC

4 NC 12 DDC2B Data

5 GND 13 HSYNC

6 GND 14 VSYNC

7 GND 15 DDC2B Clock

8 GND

Connecting to a DVI-D Monitor

The V2616A computer also comes with a DVI-D output for DVI video. Use the cable to connect the DVI-D output

to the monitor; if you must rewire a cable, refer to the following table for pin assignments.

DVI-D Connector

Pin Signal Definition Pin Signal Definition

1 T.M.D.S. Data2- 13 N/C

2 T.M.D.S. Data2+ 14 +5V Power

3 T.M.D.S. Data2 Shield 15 Ground (return for +5V,

HSync, and VSync)

4 N/C 16 Hot Plug Detect

5 N/C 17 T.M.D.S. Data0-

6 DDC Clock 18 T.M.D.S. Data0+

7 DDC Data 19 T.M.D.S. Data0 Shield

8 N/C 20 N/C

9 T.M.D.S. Data1- 21 N/C

10 T.M.D.S. Data1+ 22 T.M.D.S. Clock Shield

11 T.M.D.S. Data1 Shield 23 T.M.D.S. Clock+

12 N/C 24 T.M.D.S. Clock-
