V2616A Hardware Manual Hardware Connection Description

3-6

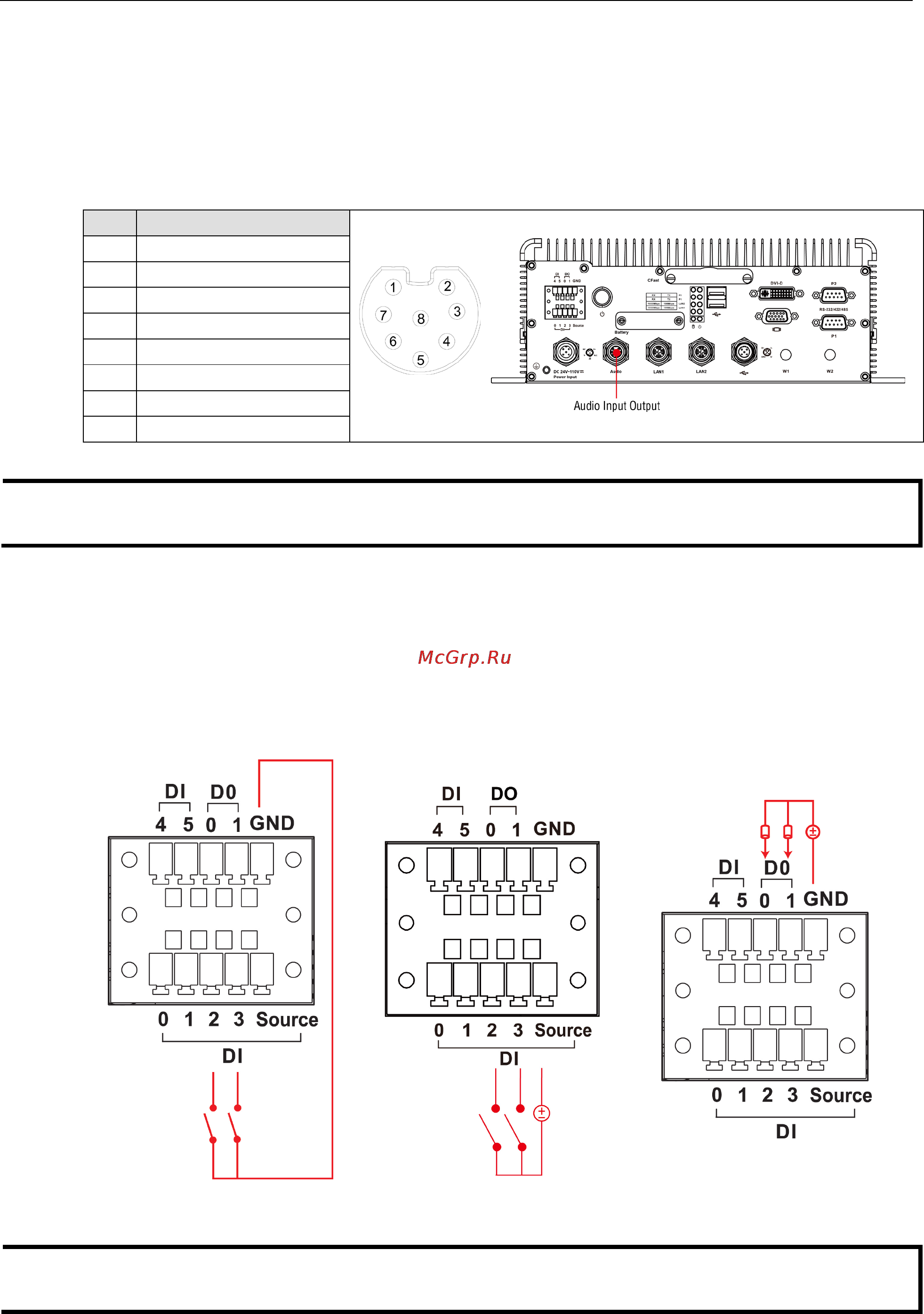

Connecting an Audio Input

The V2616A comes with an M12 X-coded audio input/output connector, allowing users to connect a speaker or

an earphone.

Pin Audio

1 Line-in, right

2 GND

3 Line in plug-in detected

4 Line-in, left

5 Line-out, left

6 Line out, plug-in detected

7 Line-out, right

8 GND

NOTE This is the pin assignment for the computer-side connectors on the V2616A shell. If you are wiring

peripheral-side connectors for an audio cable, you will need to mirror the pin assignment.

Digital Input/Output

The V2616A comes with a 6-ch digital input and a 2-ch digital output through a terminal block connector. The

pin assignments and the wiring methods are shown below.

DI Wiring: Dry Contact DI Wiring: Wet Contact DO Wiring: Dry Contact

NOTE If you are using wet contacts, you must connect source to power. In addition, both DI and DO can only be

wired as sink types
