TC-6110 Series Hardware Hardware Installation
2-2
Mounting
Desktop
Place your TC-6110 on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between
the TC-6110 and other equipment. Do not place equipment or objects on top of the TC-6110 because this may
insulate the heat sink, cause the computer to overheat, and severely damage the computer’s internal
components.
Rack mounting

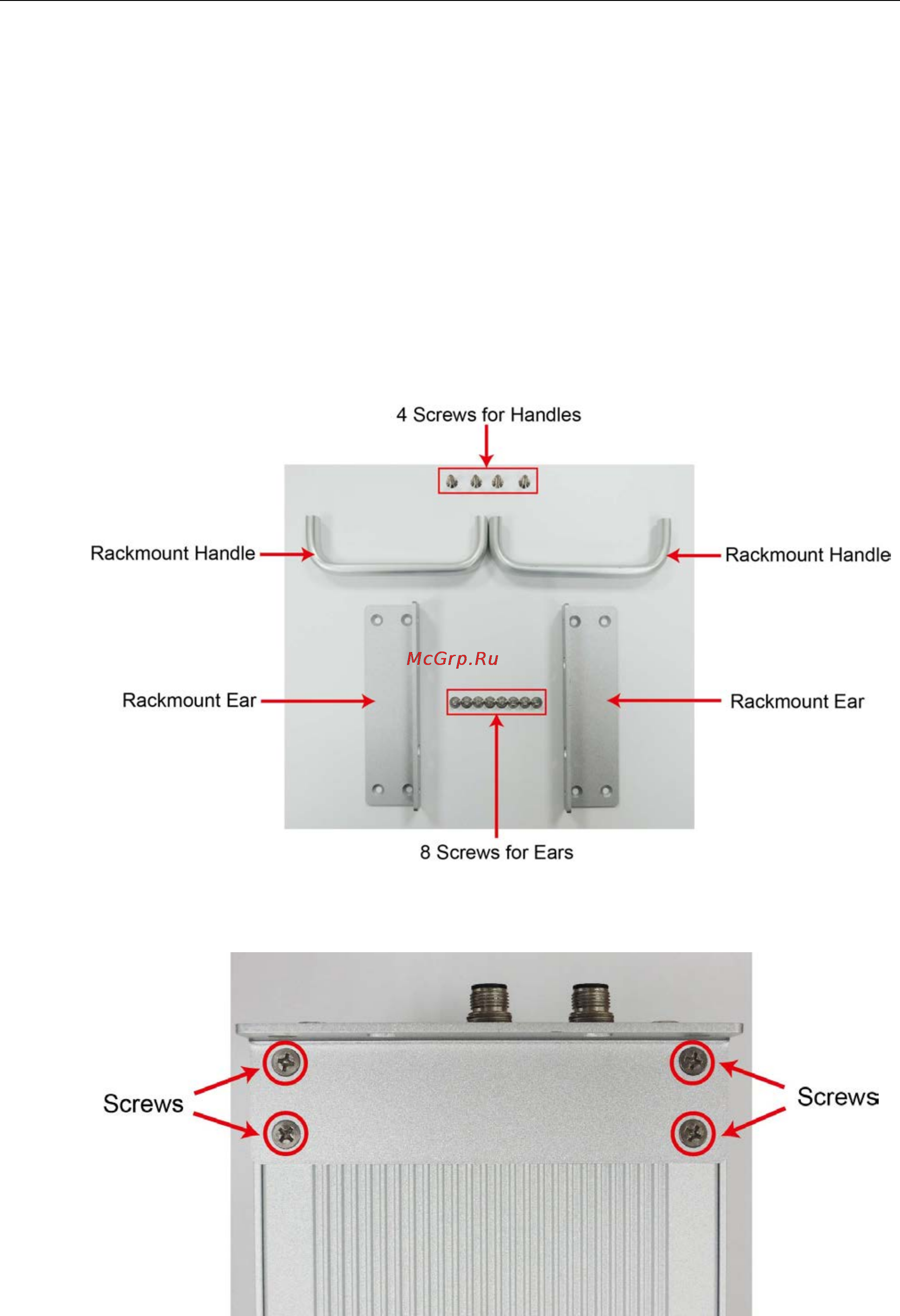

TC-6110 computers come with a rack mount kit for installation into a 19-inch rack. The following figure
illustrates the mounting kit components.
Follow these steps to install the computer’s rack mount components.
Step 1: Use eight screws to fasten the mounting ears to each side of the computer.
