TC-6110 Series Hardware Hardware Installation
2-16

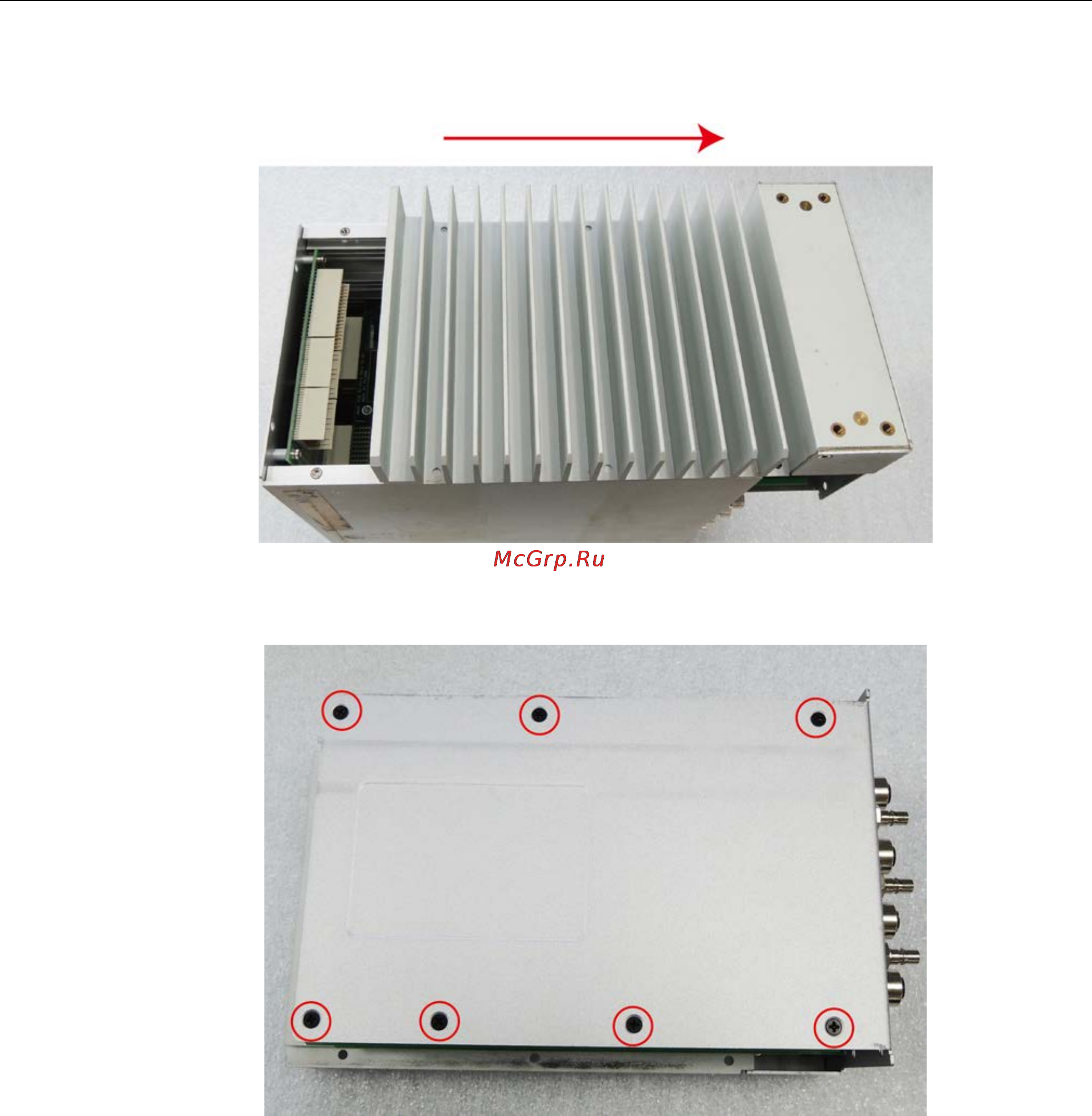

Step 4: To get access to the interior of the TC-6110, slide the large heat sink / main interface module in one
direction, and the rest of the unit in another.
Step 5: Place the module so it is sitting with the heat sink face down, and remove all seven screws from the
rear of the module. These screws hold the main interface module in place.
