TC-6110 Series Hardware BIOS Setup
3-2
Entering the BIOS Setup Utility
To enter the BIOS setup utility, press the “F2” key while the system is booting up. The main BIOS Setup screen
will appear.
A basic description of each function key is listed at the bottom of the screen. Refer to these descriptions to learn
how to use them.
F1: General Help
F5/F6: Change Values
F9: Setup Defaults
F10: Save and Exi
↑↓
: Select Item
←
→
: Select Menu
ESC: Exit
ENTER:
Select or go to Submenu

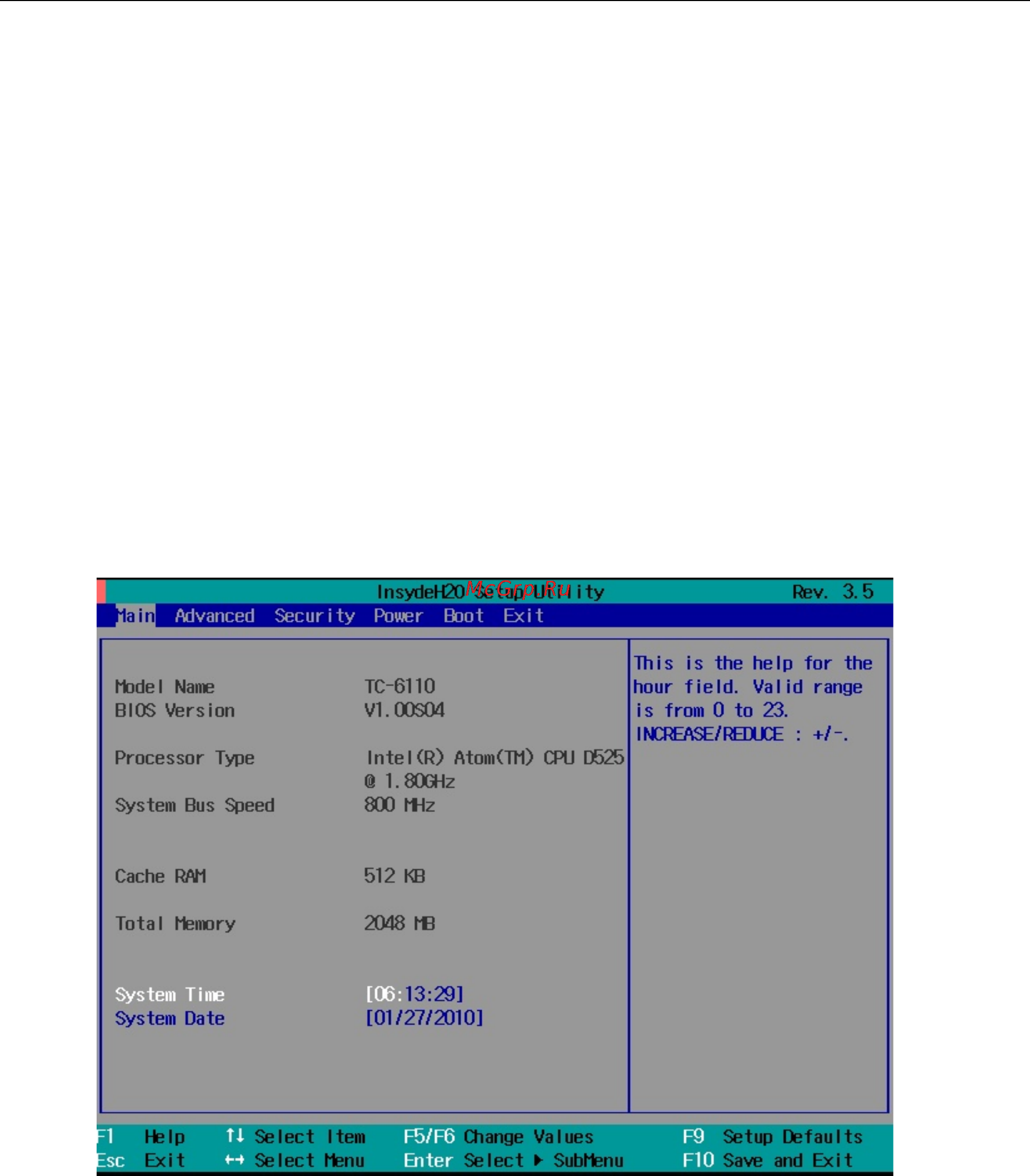

BIOS Main Page
The main page of the BIOS displays basic low-level information about system hardware, including things like
model names, CPU type, and BIOS version.
