TC-6110 Series Hardware Hardware Installation

2-10

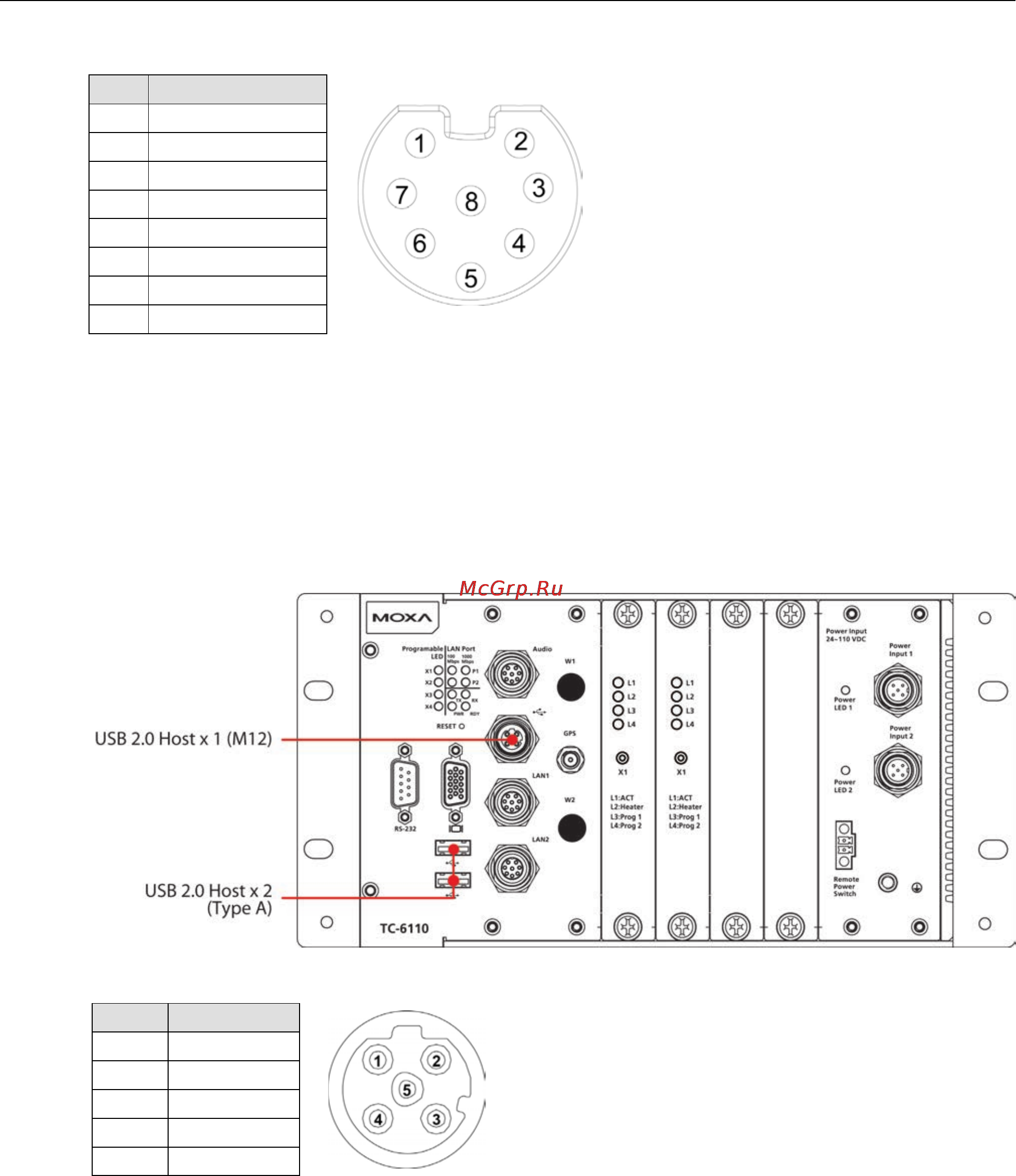

See the following figure and table for the pin assignment of the audio jack.

Pin Audio

1 Line in-Right

2 GND

3 --

4 Line in-Left

5 Line out-Left

6 --

7 Line out-Right

8 GND

Connecting USB Devices

The TC-6110 embedded computer has three USB 2.0 ports: two come with type A connectors, and one with

M12 connector. All of the ports are UHCI, Rev 2.0 compliant and support Plug & Play and hot swapping. These

ports can be used to connect such USB devices as keyboards, mice, USB flash disks, and USB CD-ROMs. In

addition, both USB ports support system boot up, which can be activated by modifying the BIOS settings. The

chapter USB Configuration in the BIOS Setup chapter describes the configuration process in detail.

Refer to the following table for the pin assignment of the USB host’s M12 connector:

Pin USB

1 D+

2 D-

3 +5V

4 GND

5 N.C.
