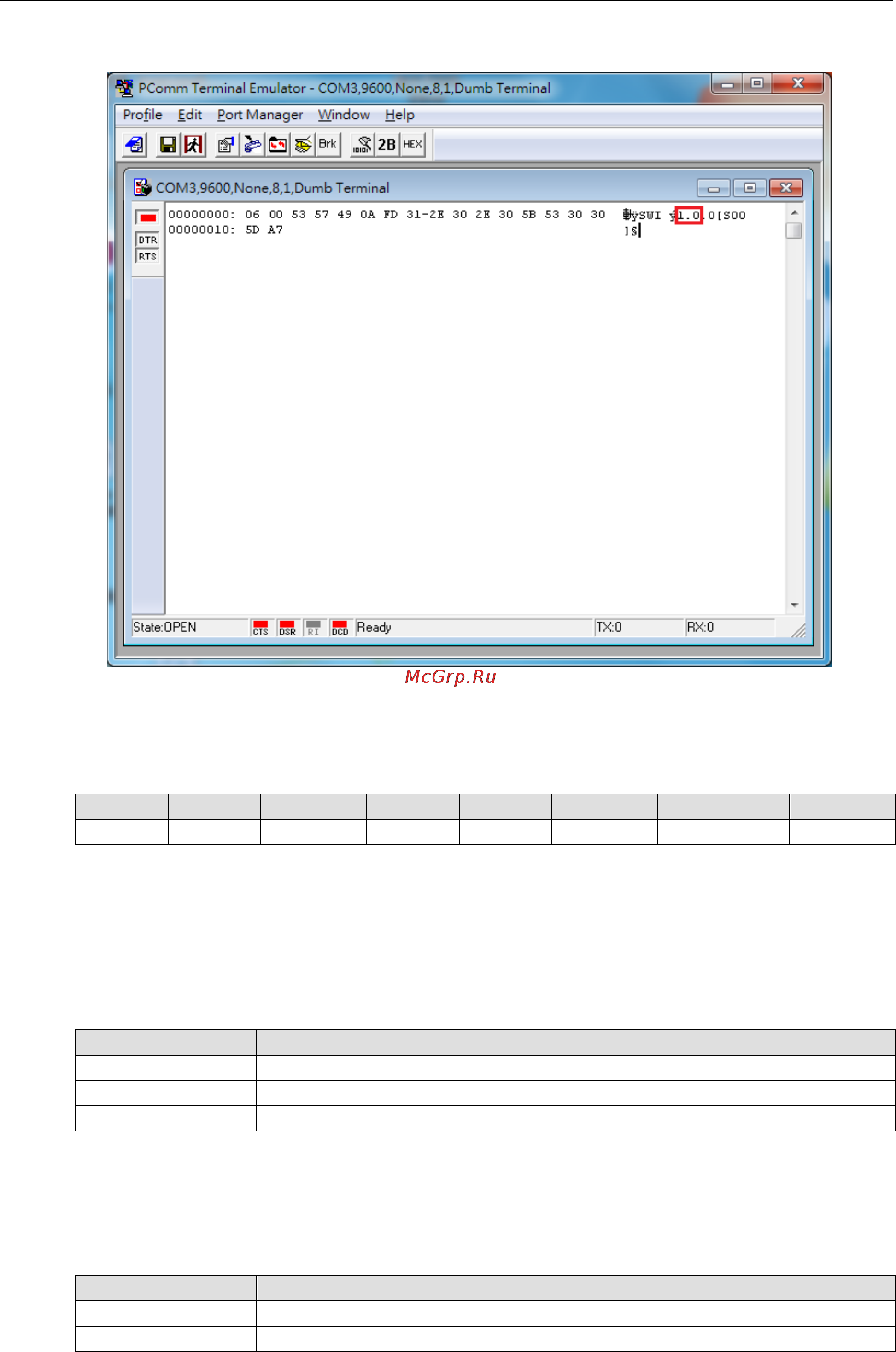

MD-224 Hardware Manual Display Control Interface
5-4
For detailed command explanations, refer to the Display UART Commands section.
You may see the scalar firmware version 1.0 in the screen.
UART Command Format
The message format is as follows:
Byte # 0 1 2,3,4 5 6 7 + (LEN-1) 7+LEN
ATTN ADDR CMD LEN IHCHK DATA IDCHK
The minimum message size is 7 bytes, and the maximum size is 82 bytes.
Command Format Details
ATTN (Attention)
This byte is used to identify the start of a message; it can be one of three values:
ATTN Description
0x07 Command (ASCII BELL) packet
0x06 Acknowledge (ASCII ACK) packet
0x15 Negative ACK (ASCII NAK) packet
A device sends a command with the 0x07 Attention Code. The unit will respond to the command with either an
ACK if the command completed successfully, or a NAK if the command failed.
ADDR (Address)
This byte is used to specify the address where a command will be sent.
ADDR Description
0xFF Broadcast the command to all units
0x00 to 0x0F Address of a specific unit, 0 to 15 (max 16 units)
