MD-224 Hardware Manual On-Screen Display (OSD) Controls
B-4

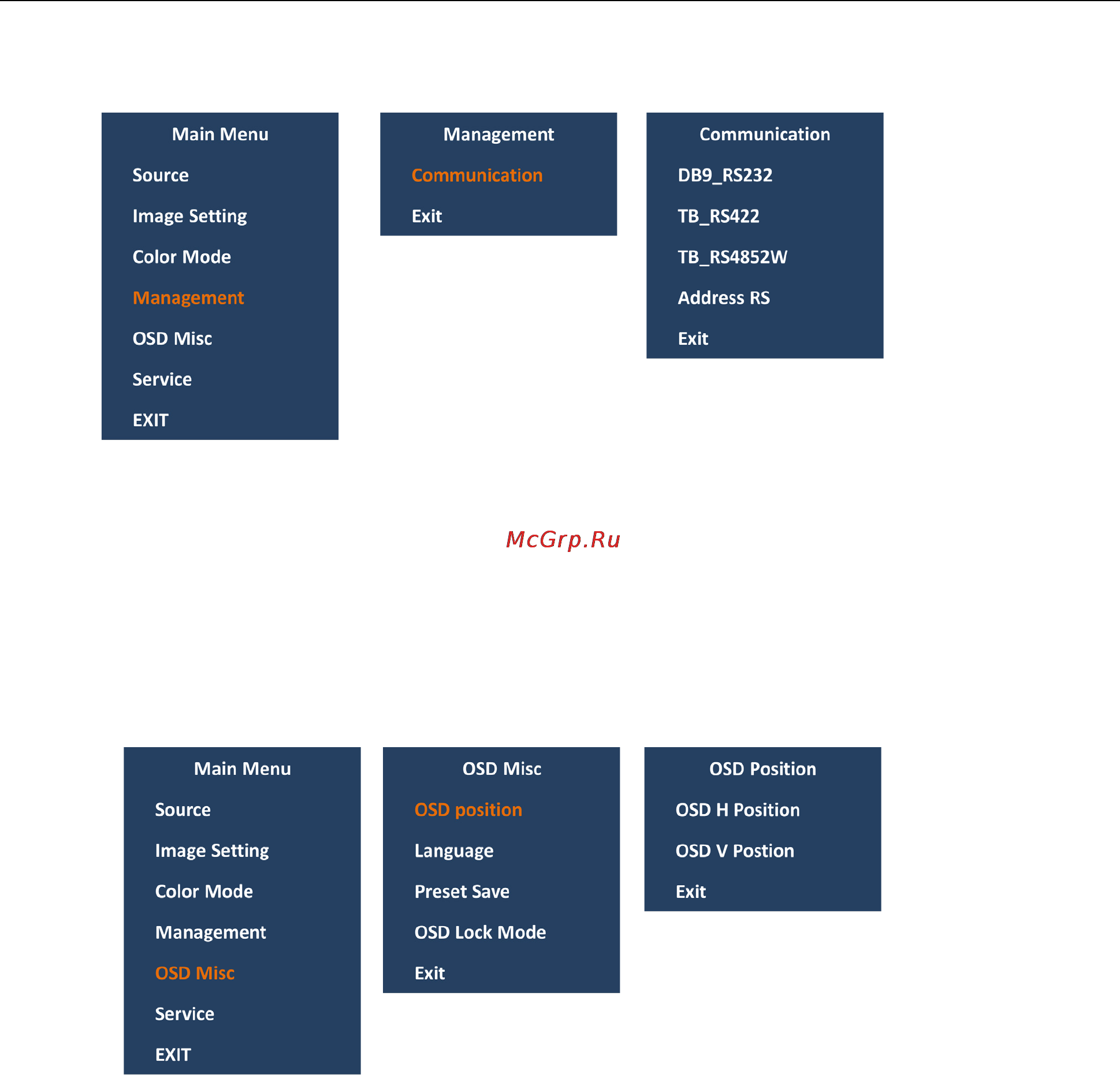

Management – Communication
Set
up serial communication mode for remote control and/or accessing internal information about the unit,
including brightness, firmware version
, and other values.
•
RS232 = Sets to use standard RS-232 protocol through DB9 connector
•
RS422 = Sets to use standard RS-422 protocol through terminal block connector
•
RS4852W = Sets to use RS-485 protocol (Half duplex) through terminal block connector
•
Address RS = Set the unit address (0x00 to0x0F).
OSD Misc – OSD position
Adjust the visual appearance of the On Screen Display (OSD) menu.
•
OSD H.Position = Adjust OSD menu horizontally (left/right), values from 0 to 100.
•
OSD V.Position = Adjust OSD menu vertically (up/down), values from 0 to 100.
•
The default value for both functions is 100.
