ioLogik E1200 Series Using the Web Console
3-3
Overview

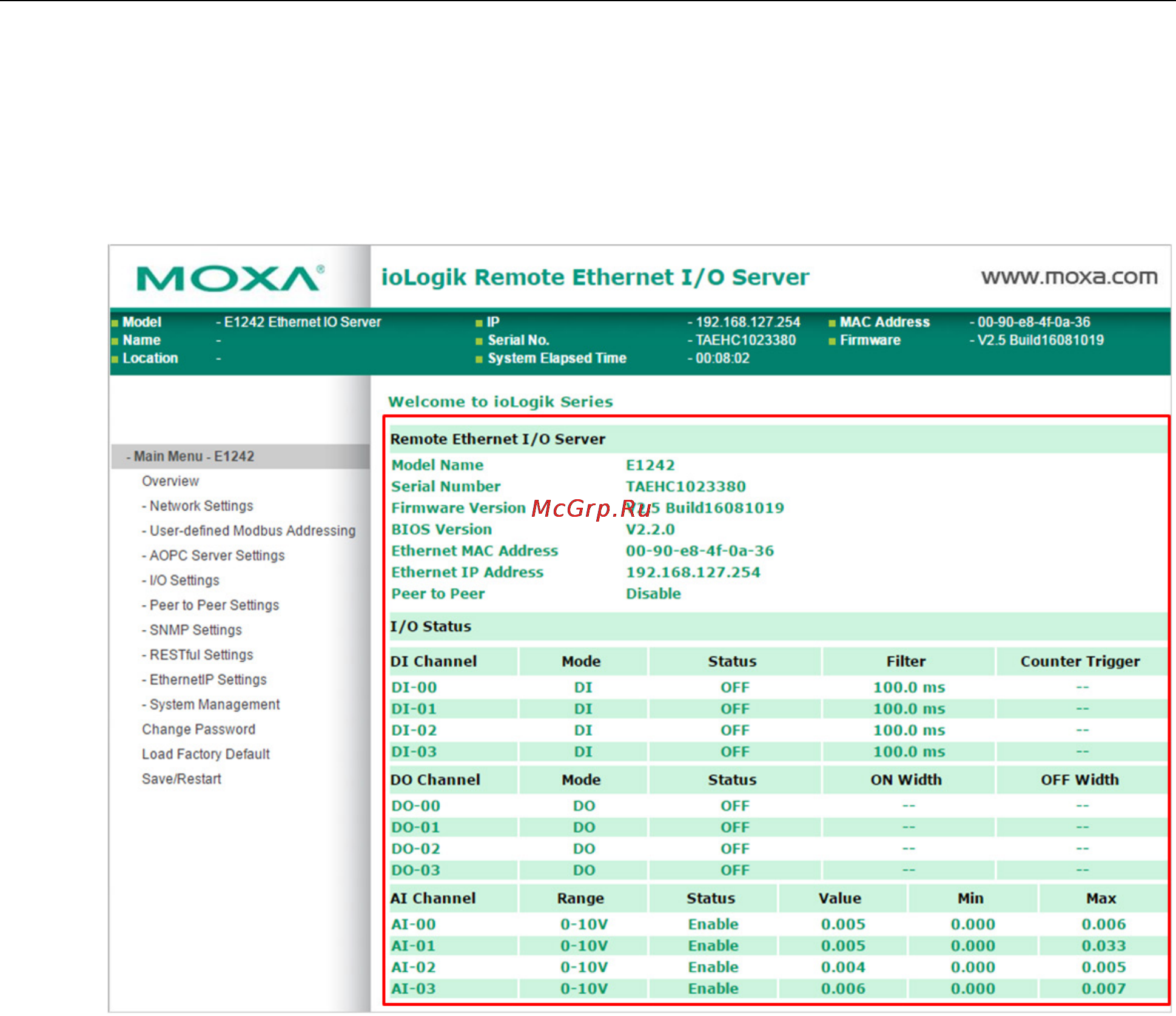

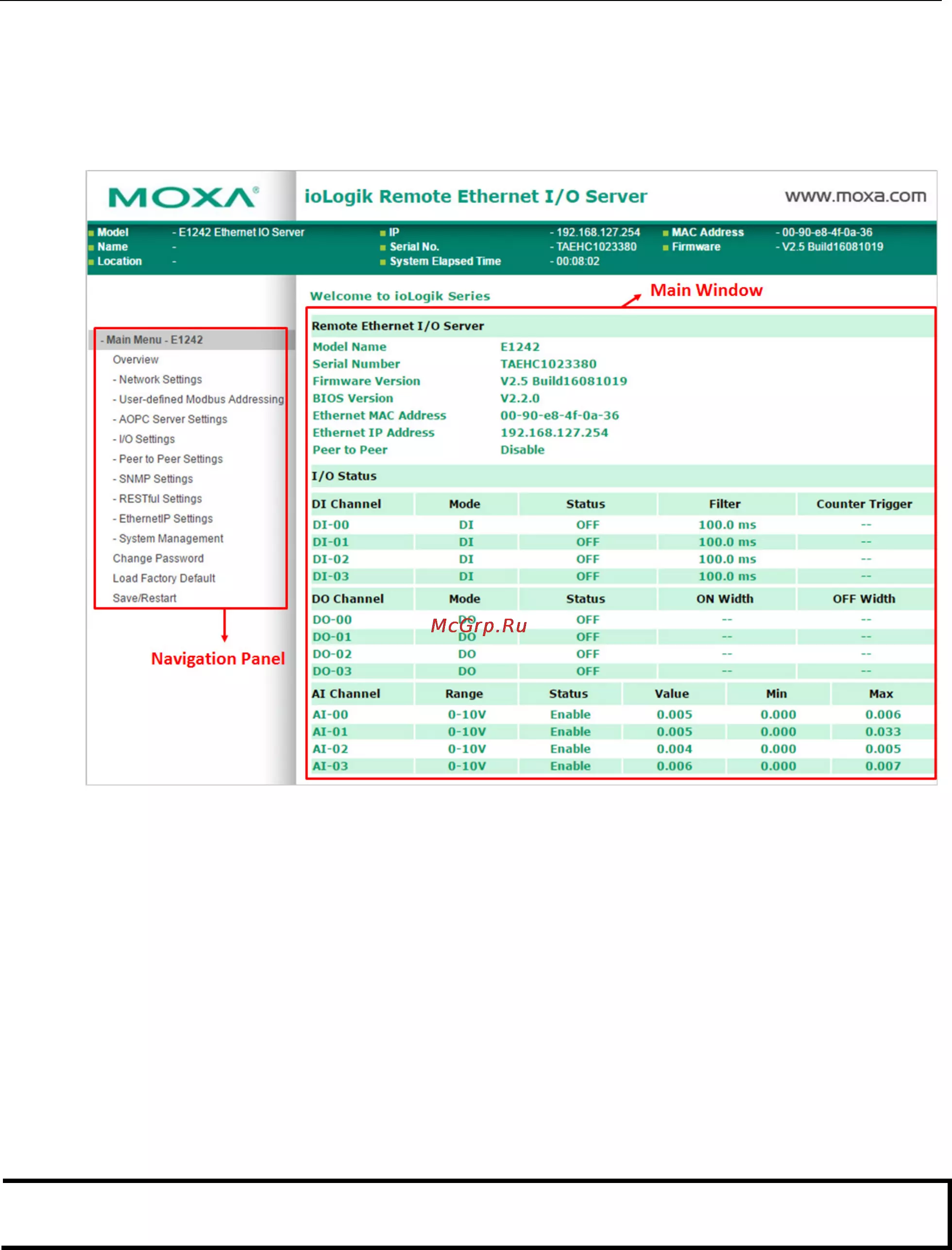

The Overview page contains basic information about the ioLogik E1200, including the model name, serial
number, firmware version, MAC address, and current IP address. Most importantly, you can see the current I/O
status by pressing the F5 key on the computer keyboard to refresh the page.
