ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC
6-8
3. After the project creation, you can see the project information in the left window. Right click Ethernet and

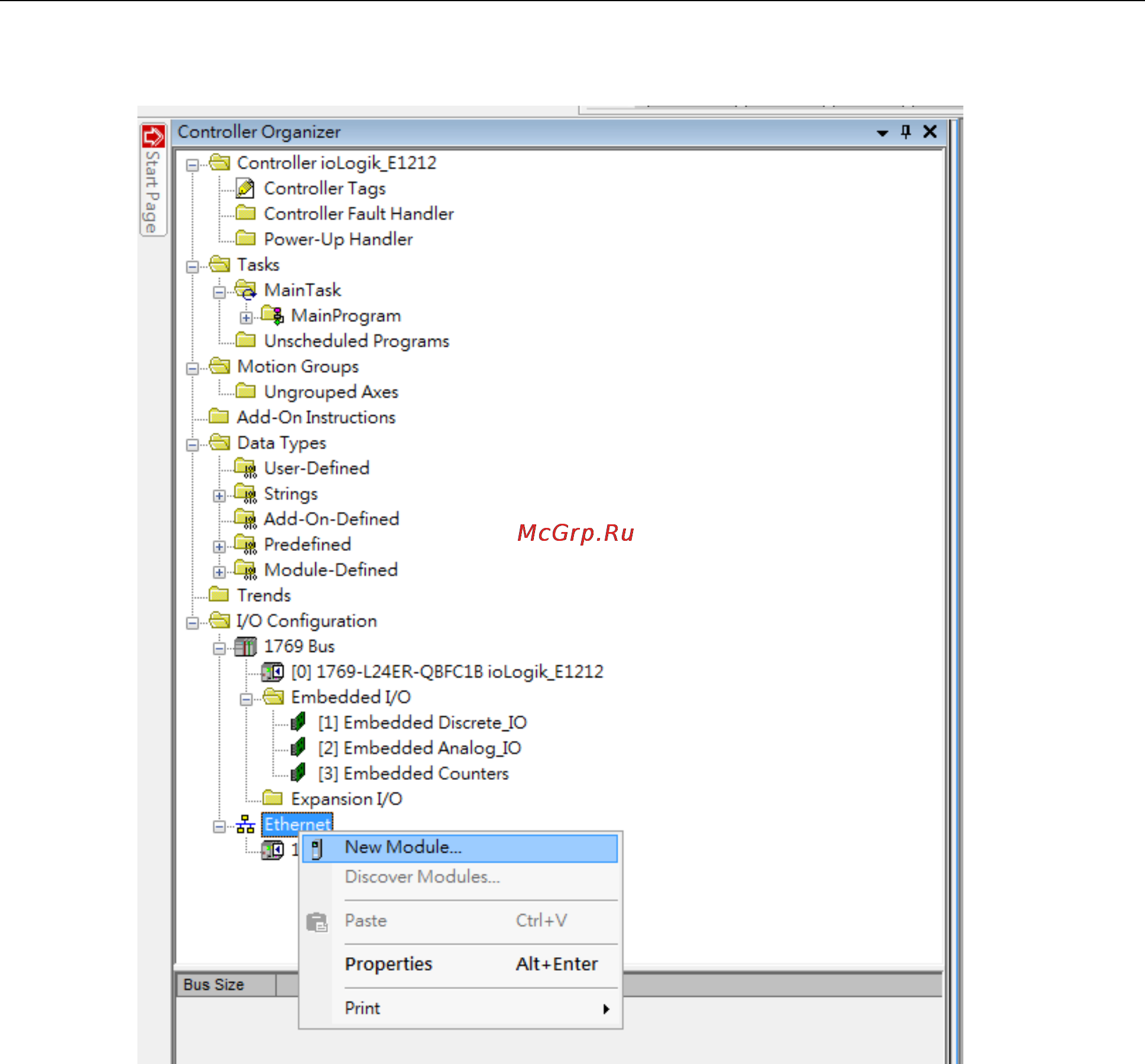

then select New Module and the ioLogik E1200 module can be added into the project.
