ioLogik E1200 Series Using ioSearch™
4-9
Restart System

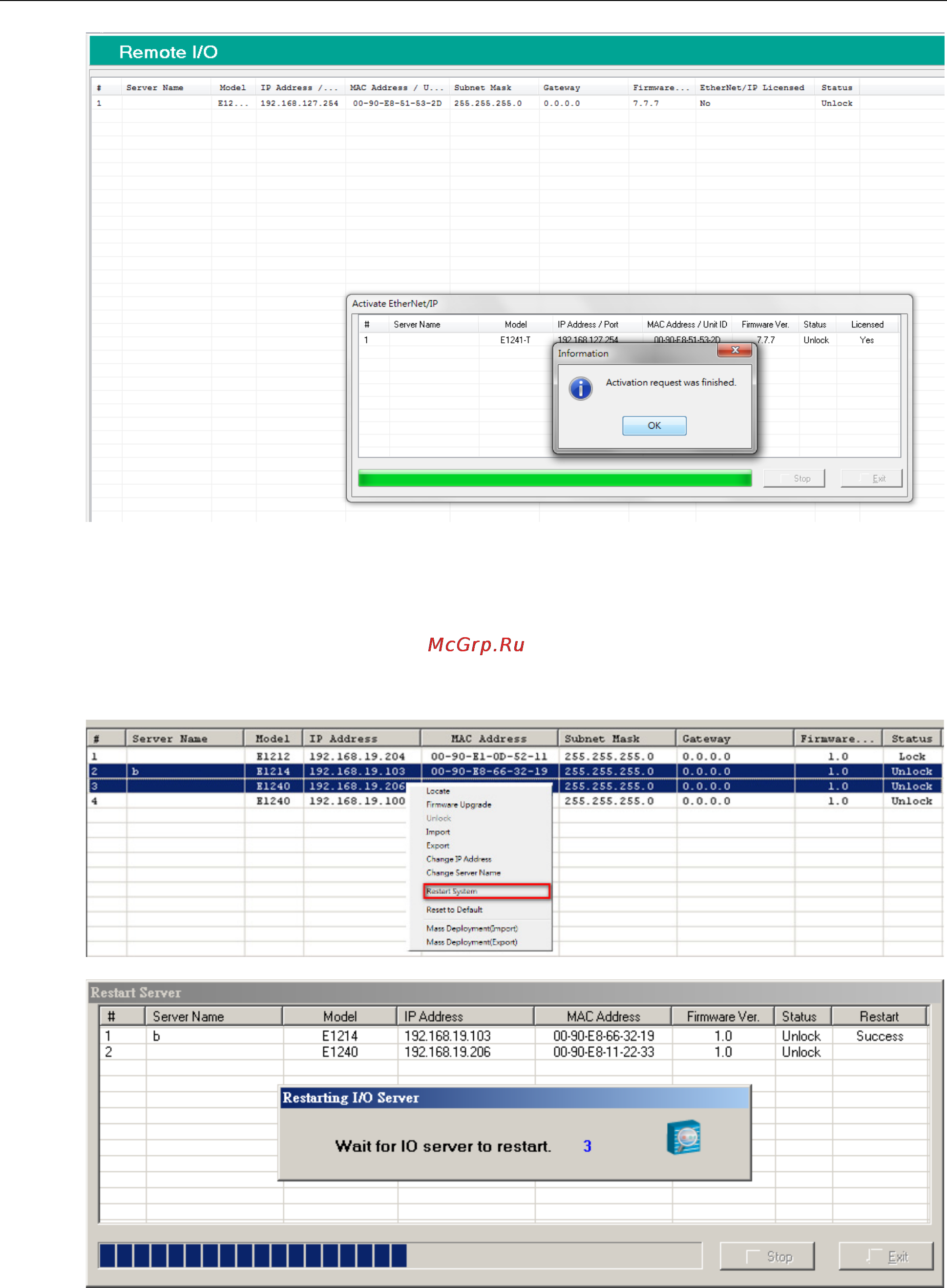

Select this command to restart the selected ioLogik E1200.
Restarting multiple ioLogik E1200 units is allowed. Select the ioLogik E1200 and right click to process this
function.
