ioLogik E1200 Series Using the Web Console
3-6
AOPC Server Settings
Moxa’s MX-AOPC Server™ is a software package operated as an OPC driver of an HMI or SCADA system. It
seamlessly connects Moxa’s ioLogik products to a wide variety of SCADA systems, including the most popular:
Wonderware, Citect, and iFix. MX-AOPC UA Server™ conforms to the OPC UA standard to connect with other
standards-compliant devices and host OPC machines.
Hardware Requirements
CPU Intel Pentium 4 or above
RAM 512 MB (1024 MB recommended)
Communication Interface Ethernet or serial
Software Requirements
Operating System Microsoft Windows 7/8/10, Microsoft Windows Server 2003/2008/2012
Editor (optional) Microsoft Office 2003 (Access or Excel) or later
Database (optional) Oracle database, Microsoft SQL Server
OPC UA Server Specifications
OPC Unified Architecture 1.01
OPC Data Access 1.0a, 2.0, 2.05a, 3.0
Device Protocols Moxa AOPC, Modbus/TCP (master), Modbus/RTU (master)
OPC UA Logger Specifications
OPC Unified Architecture 1.01
MX-AOPC UA Server can be downloaded from Moxa’s website support page at www.moxa.com/support/.
After downloading the MX-AOPC UA Server file, unzip the file and run Install.exe. The installation program will
guide you through the installation process and install the MX-AOPC UA Server Utility.
For more details on MX-AOPC UA Server installation and use, please check the user’s manual, which can be
Moxa’s website.

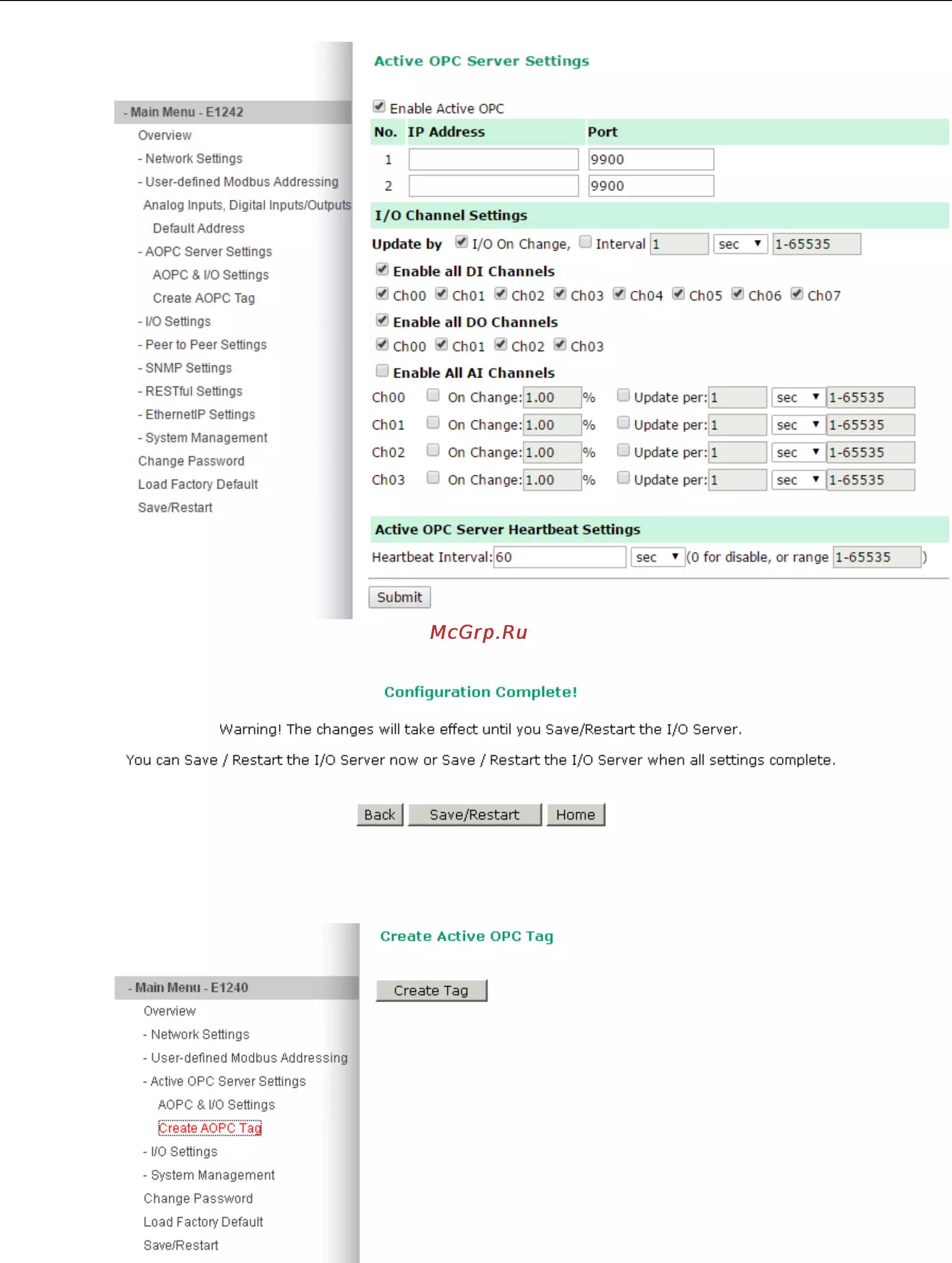

Tag Generation
Use the web console to create AOPC tags for the ioLogik E1200 by opening your browser and navigating to the
AOPC Server Settings page.
Follow these steps to create the tags and send them from the ioLogik E1200 to MX-AOPC UA Server:
1. On the AOPC & I/O Settings page, select the Enable Active OPC checkbox and specify the IP address
where the MX-AOPC UA Server is installed.
2. Select the I/O channels that need to be created in MX-AOPC UA Server.
3. Configure the Heartbeat Interval, if necessary.
NOTE
The
Heartbeat Interval can be used to determine the connection status between the ioLogik E1200 and
MX
-AOPC UA Server, and t
o ensure that the ioLogik is connected and alive. If the heartbeat interval is set and
the network between the ioLogik E1200 and
MX-AOPC UA Server is down, MX-AOPC UA Server
will detect the
stopped heartbeat and the
Quality column in the MX-AOPC UA will display BAD to indicate the loss of
connectivity.
