ioLogik R1200 Series Overview
1-7
Physical Dimensions

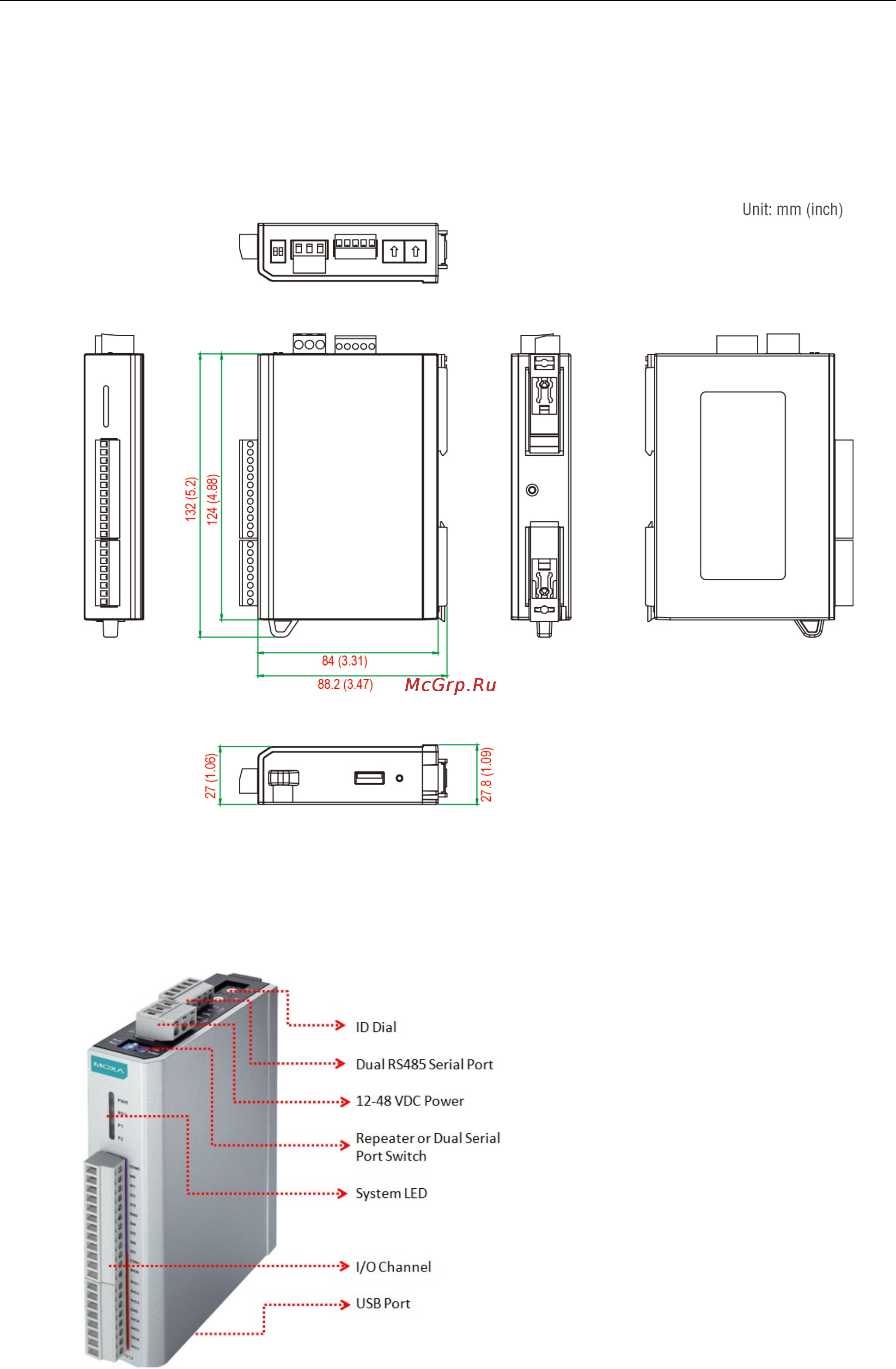

The dimensions of the ioLogik R1200 product are 27.8 x 124 x 84 mm. The connector for the two RS-485 ports
is a 5-pin 3.81 terminal block (2 RS-485 ports with 1 ground pin). The power connector is on the top and the
reset button is on the bottom of the product. There are also two dials for Board ID setup, and a 2-pin DIP switch
for “Initial/Run” mode and “Dual RS-485/Repeater” mode setup.
Hardware Reference
Panel Guide
