ioLogik R1200 Series Using ioSearch
3-6
Help
In the Help menu, you can view vendor and version information.
Quick Links
Quick links are provided to search for I/O servers on the RS-485 network and sort the server list.
1. Automatically searches the local network
2. Sorts by ioLogik R1200 device ID (“By Connection”)
3. Sorts by ioLogik R1200 model number (“By I/O Server”)
Main Functions

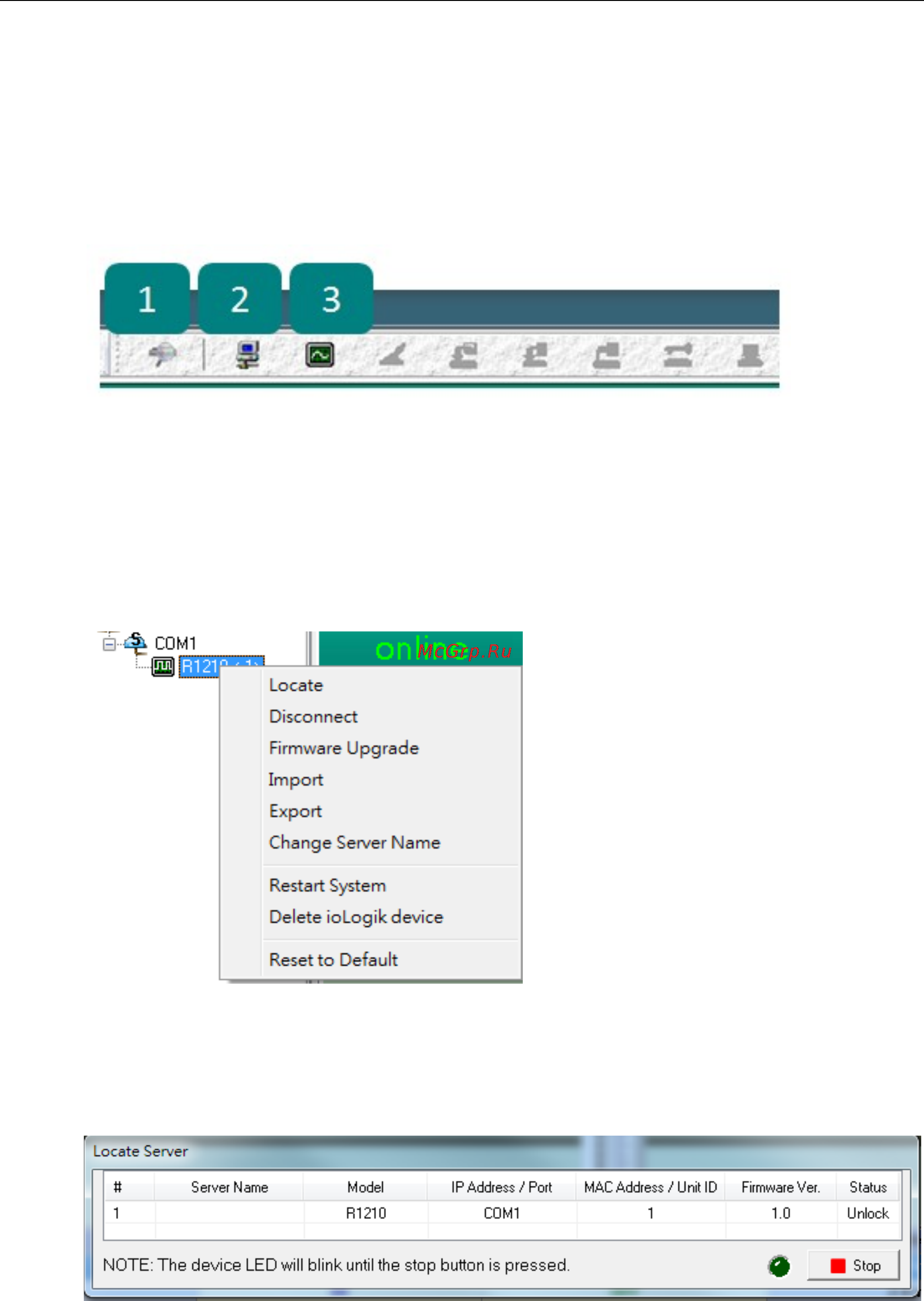

Right click on a particular ioLogik R1200 device to view the ioSearch function menu.
Locate
The locate function helps users find a specific ioLogik on the network. When this function is triggered, the ready
LED on the selected unit will start to blink, indicating its location.
Connect/Disconnect
The Connect/Disconnect function connects or disconnects the ioLogik device from the ioSearch network.
