ioLogik R1200 Series Initial Setup

2-7

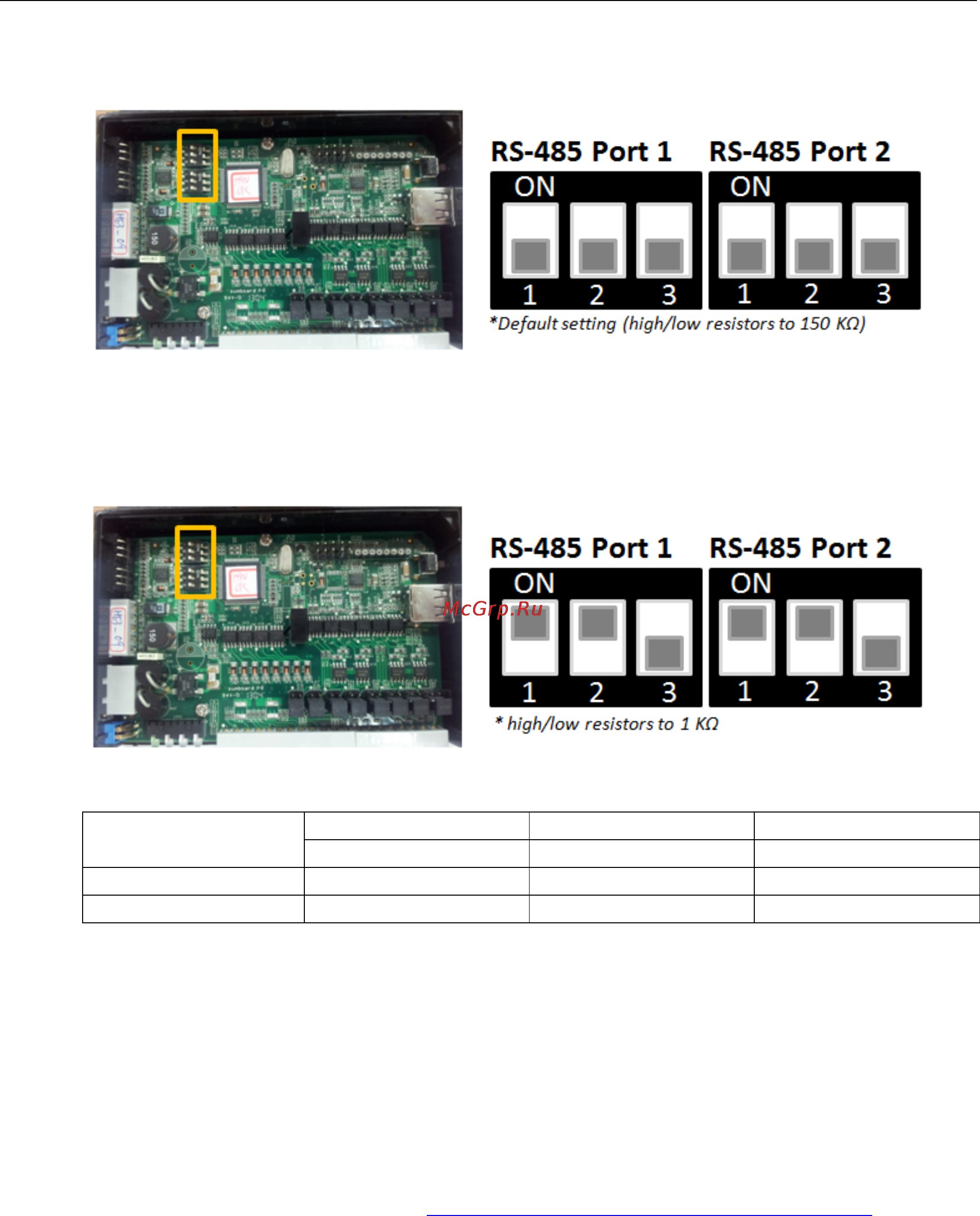

DIP switches inside the cover of the ioLogik R1200 are used to set the pull high/low resistor values for each

serial port.

To set the pull high/low resistors to 150 kΩ, make sure both of the assigned DIP switches are in the OFF

position (default setting).

To set the pull high/low resistors to 1 kΩ, make sure both of the assigned DIP switches are in the ON

position.

Pull High/Low DIP switch settings for the RS-485 Port

Switch 1 2 3

Pull High/Low Pull High/Low Terminator

ON 1 kΩ 1 kΩ 120 Ω

OFF (default) 150 kΩ 150 kΩ ----

Software Installation

ioSearch Installation

ioSearch™ is a search utility that helps the user locate ioLogik R1200 devices on the local RS-485 network. The

latest version can be downloaded from Moxa's website.

1. Install from the website: To download the software from Moxa’s website, first click on the following link

to access the website’s search utility: http://www.moxa.com/support/search.aspx?type=soft

. When the

webpage opens, enter the model name of your product in the search box. Click the model name and

navigate to the product page, and then click on ioSearch, located in the box titled Software. Download and

then unzip the file, and then run SETUP.EXE from that location. The installation program will guide you

through the installation process and install the software. You can also install the MXIO DLL library

separately.

2. Open ioSearch: After installation is complete, run ioSearch from Start



Program Files



MOXA



Server



Utility



ioSearch

3. Search for the server: On the menu bar, select System



Auto Search Remote I/O Server. In the

dialog window, select “RS-232/485 I/O server” and click “Start Search.”
