ioLogik R1200 Series Using ioSearch
3-5
Once the ioLogik R1200 device has been discovered by the ioSearch utility, you will be able to monitor the
I/O status from the first tab of the ioSearch utility. You will also be able to configure each DI and DO channel
from this tab after first logging in under the Management tab.
ATTENTION
If io
Search is unable to find your ioLogik R1200 device, confirm that the device ID
matches the correct ioLogik
device. See the
previous section for setting or viewing the device ID.

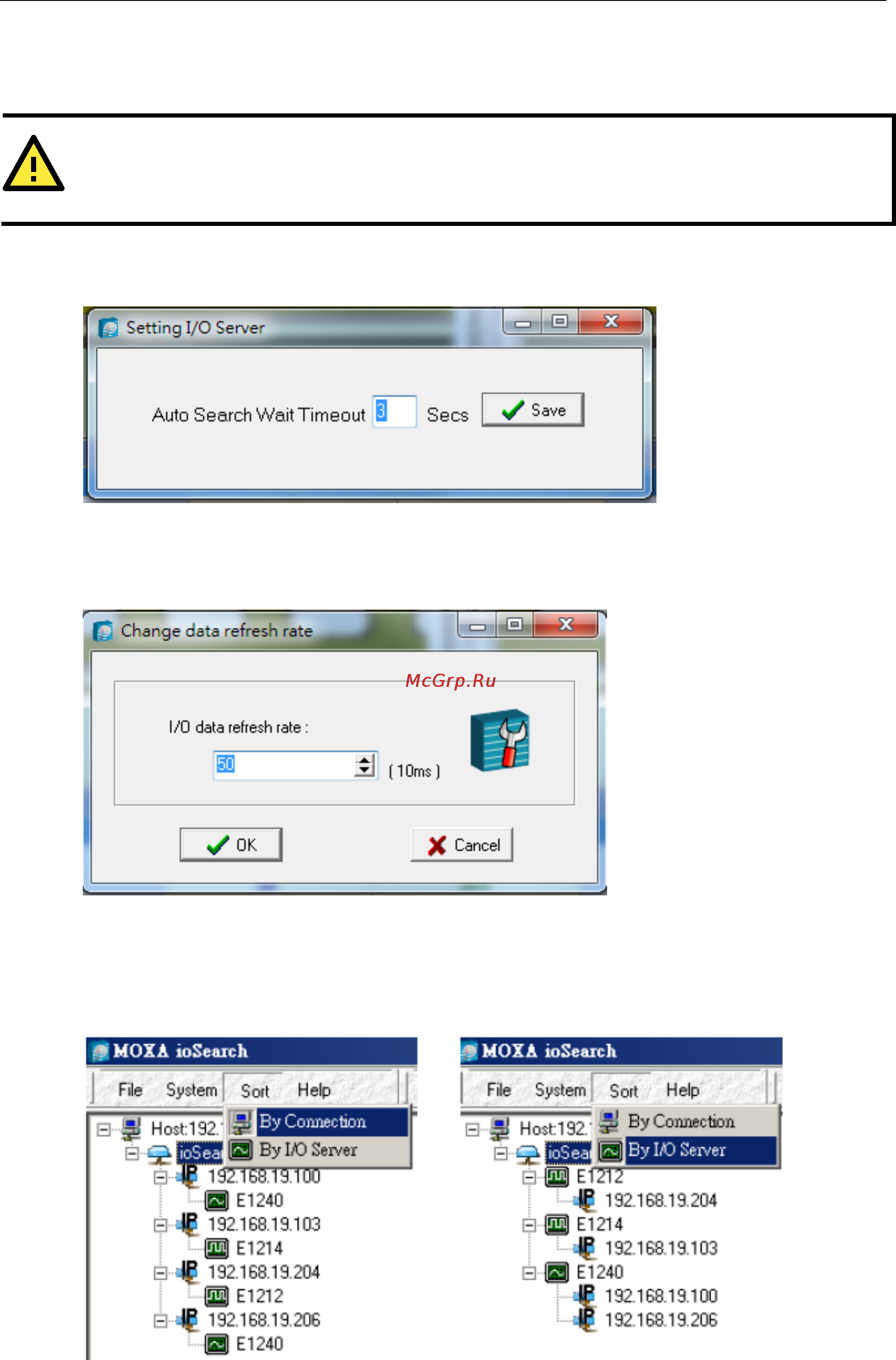

Auto Search Timeout allows users to set the timeout value for TCP socket communication, but only for
Ethernet remote I/O devices.
I/O Status Refresh Rate is used to adjust how often the I/O server is polled for device status. The current
rate is displayed on the status bar at the bottom of the window. Note that higher sync rates result in higher
loads on the network.
Sort
The Sort menu allows the server list in the navigation panel to be sorted by ioLogik connection and server
model.
