ioLogik R1200 Series Using ioSearch
3-8
Restart System

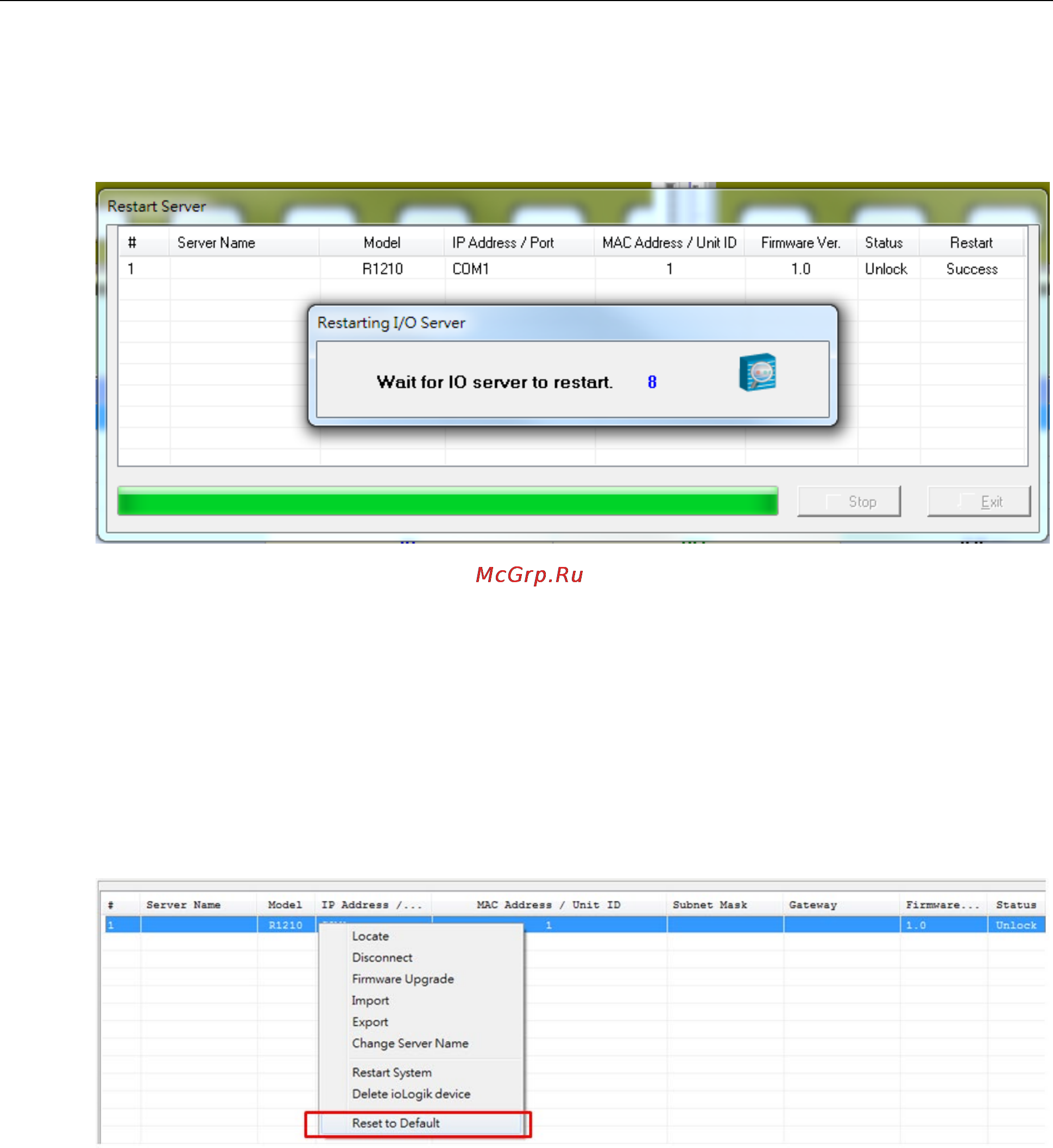

Select this command to restart the selected ioLogik R1200 device.
Restart multiple ioLogik R1200 units by right-clicking on an ioLogik R1200 and selecting this function.
Delete ioLogik Device
Select this function to remove an ioLogik R1200 unit from the tree manually.
Reset to Default
Select this function to reset all settings, including console passwords, to factory default values.
Reset multiple ioLogik R1200 units to default configurations by right-clicking the ioLogik R1200 and selecting
this function.
