Moxa ioLogik E2210-T [11/90] Hardware connection
![Moxa ioLogik E2214-T [11/90] Hardware connection](/views2/1201328/page11/bgb.png)
Click&Go V2 Getting Started
2-2

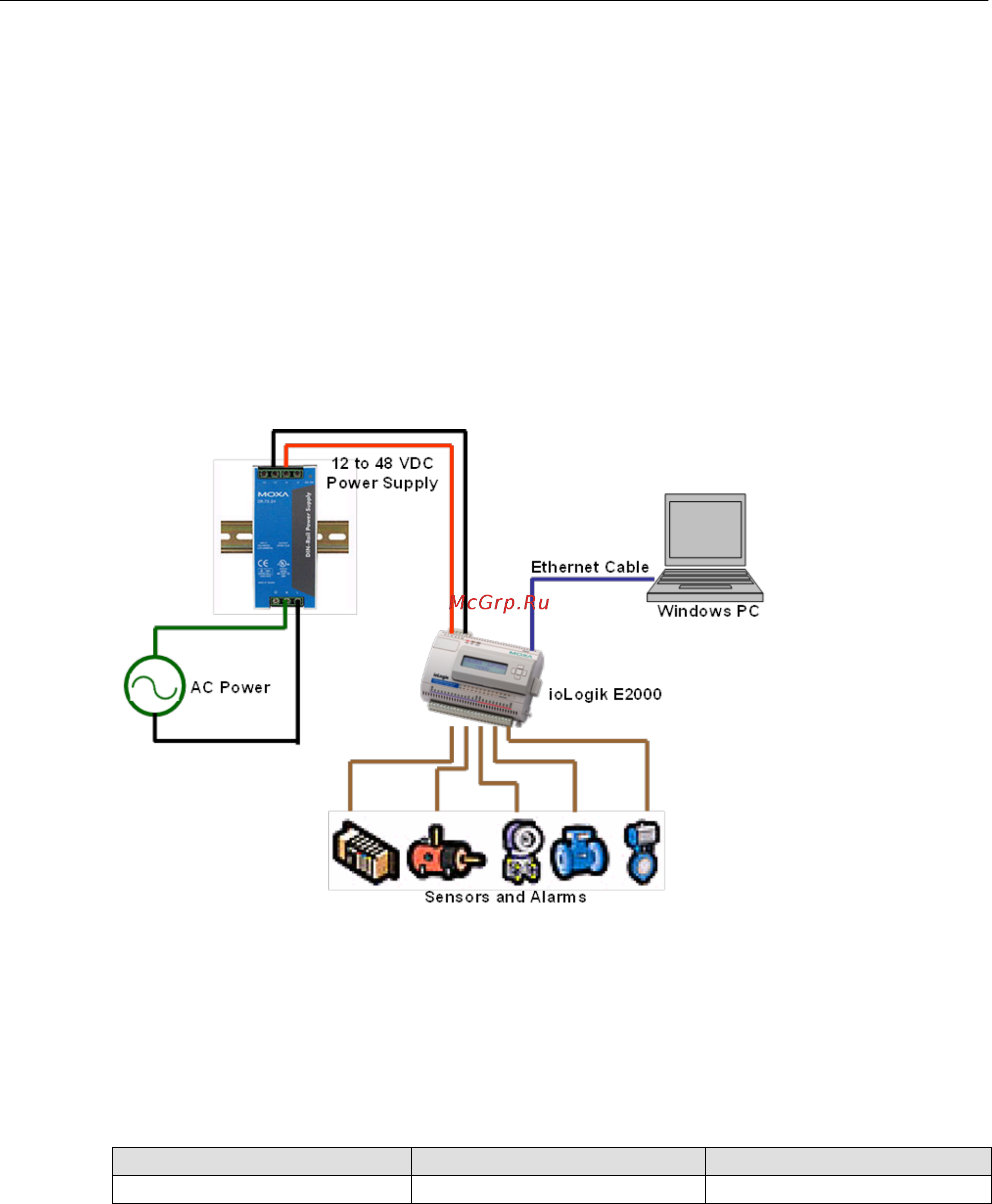

Hardware Connection
System Requirements
A fully developed system should consist of the following components:
1. A PC or laptop computer with Windows operating system (Win2000/XP or later).
2. A power supply. 12 to 48 VDC with more than 400 mA output should be used.
3. An Ethernet switch or a cross-over/direct Ethernet cable.
4. ioAdmin configuration utility V3.0 or later.
5. Proper firmware on the ioLogik products.
6. Electric sensors or alarm lights for testing purpose.
Connecting to the Network
1. Connect the ioLogik to the host PC with an Ethernet cable. For initial configuration, it is recommended that
the ioLogik E2000 series product be configured using a direct connection to a host computer rather than
remotely over the Internet.
2. Set the host PC’s IP address to 192.168.127.xxx. (xxx: from 001 to 253). In Windows, you can adjust this
setting through the Control Panel.
Default IP Address Default Netmask Default Gateway
192.168.127.254 255.255.255.0 None
3. Use ioAdmin configuration utility to detect the ioLogik. Once the ioLogik has been detected, modify the
settings as needed for your network environment, then restart the server.
