Click&Go V2 Click&Go V2 Developing Process
3-11

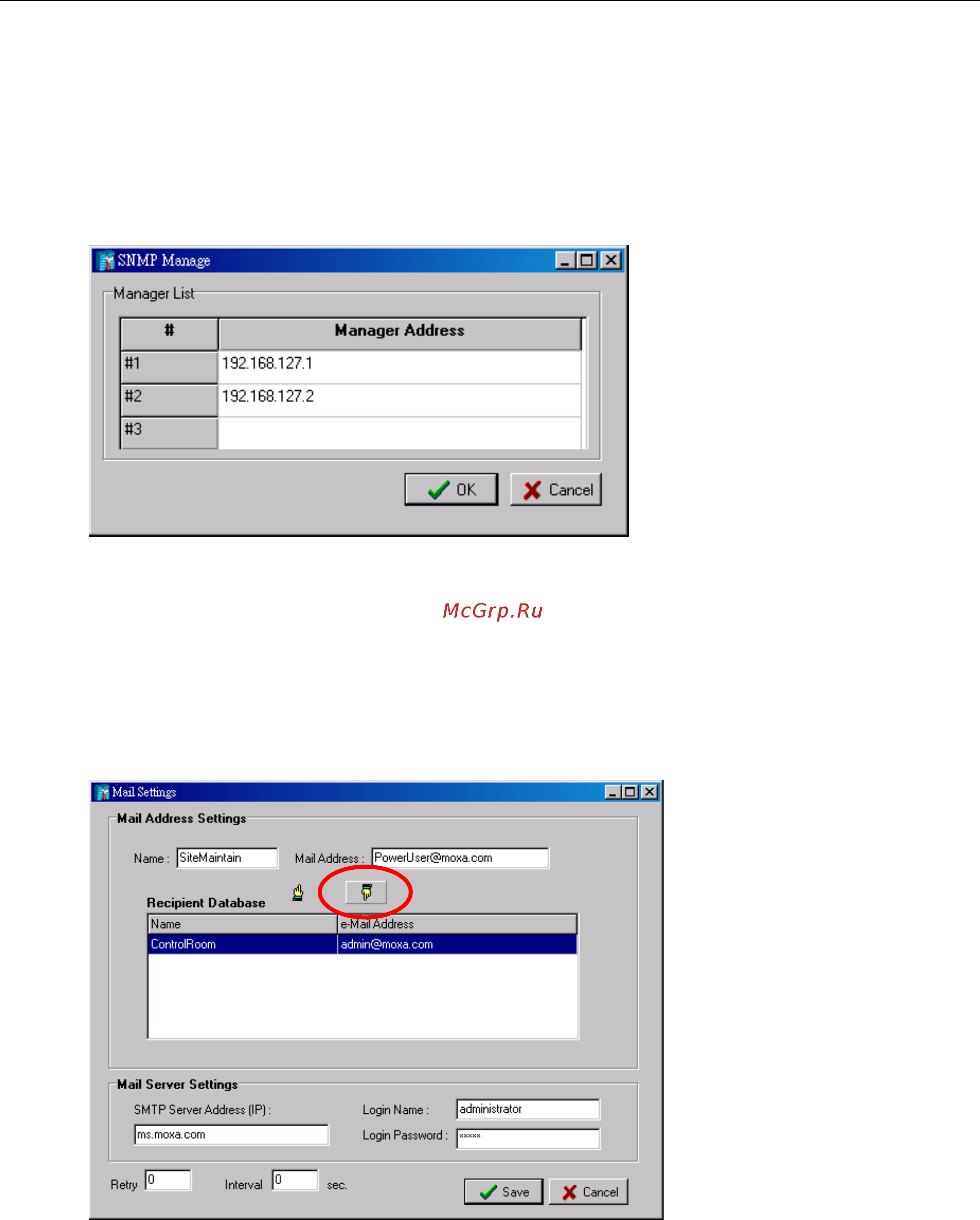

SNMP Trap Server
The ioLogik E2000 series provides SNMP v2 (Simple Network Management Protocol) to allow monitoring of the
network and I/O devices with SNMP Network Management software. It is useful for building automation and
telecom applications. When the system information of an ioLogik is required to be monitored, or a Click&Go
logic is defined to update the I/O status via SNMP traps, one or up to 10 SNMP trap servers must be defined
here.
E-Mail Server
The E-mail Server configures the parameters of the target e-mail servers and the recipient e-mail addresses.
The Recipient Database should contain a list of available e-mail addresses for your network environment.
The e-mail message defined in the Click&Go logic will be sent to all addresses listed in the Receiver(s) list. To
add e-mail addresses to the Available receiver(s) list, enter the Name and Mail Address and click Add
finger icons to move addresses to the Recipient Database; use the Remove finger icon to remove it.
