Moxa MxNVR-MO4 [16/61] Installing a hard disk

Moxa MxNVR-IA8 Getting Started

2-5

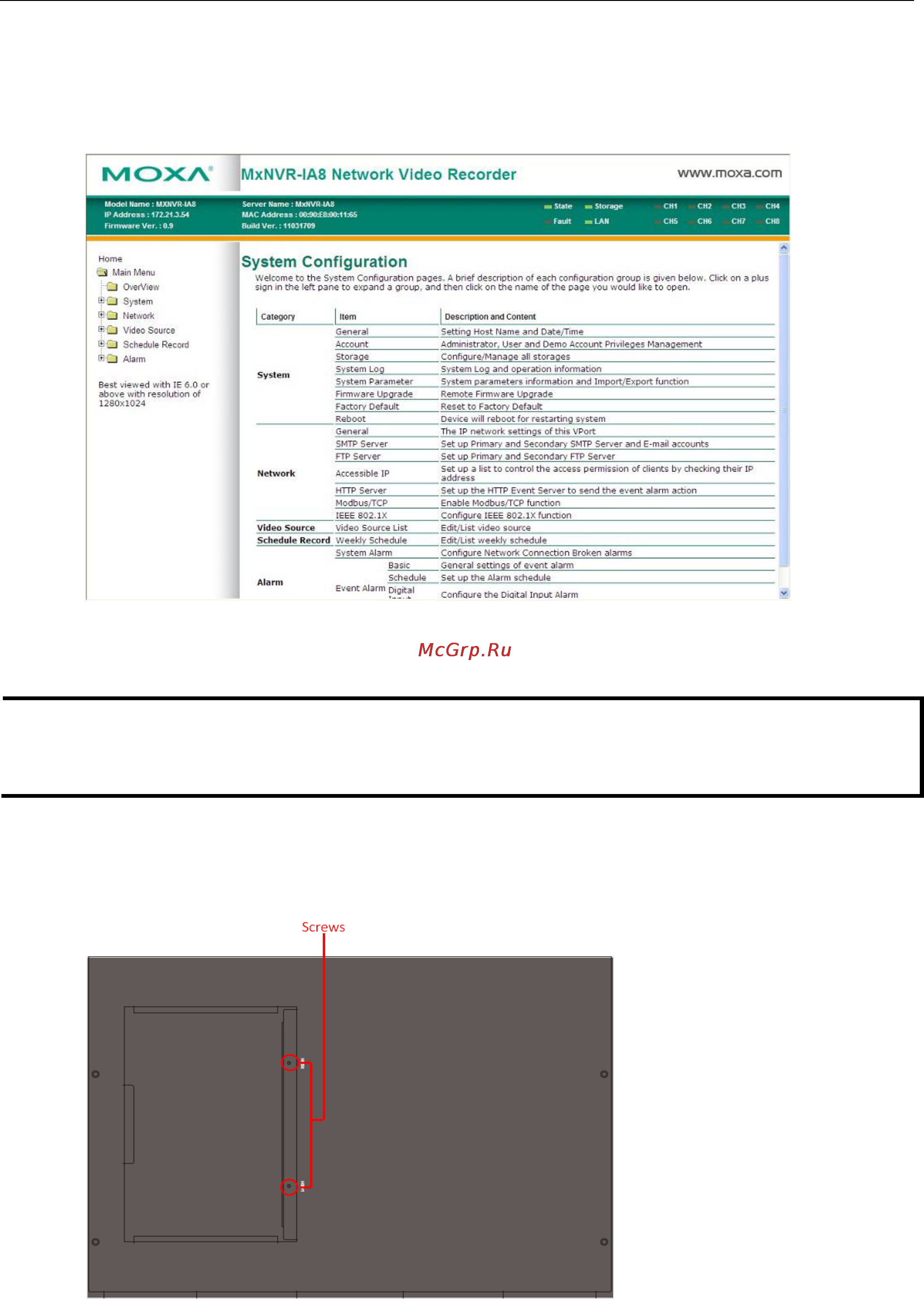

Step 6: Access the MxNVR-IA8’s System Configuration

Click on System Configuration to access the overview of the system, or to change the settings. The Model

Name, Server Name, IP Address, MAC Address, Firmware Version, and LED Status appear in the green bar at

the top of the page. Use this information to check the system information and installation.

Installing a Hard Disk

NOTE 1. Always make sure the power is off when you install a hard disk.

2. Always be sure to use a 2.5-inch SATA SSD (solid state disk) with -40 to 75°C operating temperature

capability for MxNVR-IA8-T for operation in extreme temperature environments.

The MxNVR-IA8 supports two hard disk sockets for connecting the hard disks for video storage. To install a hard

disk, see the processes below.

Step 1: Disconnect the power input and remove the two screws from the HDD socket’s cover

Step 2: Remove the cover of the HDD socket.

Step 3: Loosen the screws of the HDD socket, and remove the components inside.
